Toyota AVALON — SPEAKER

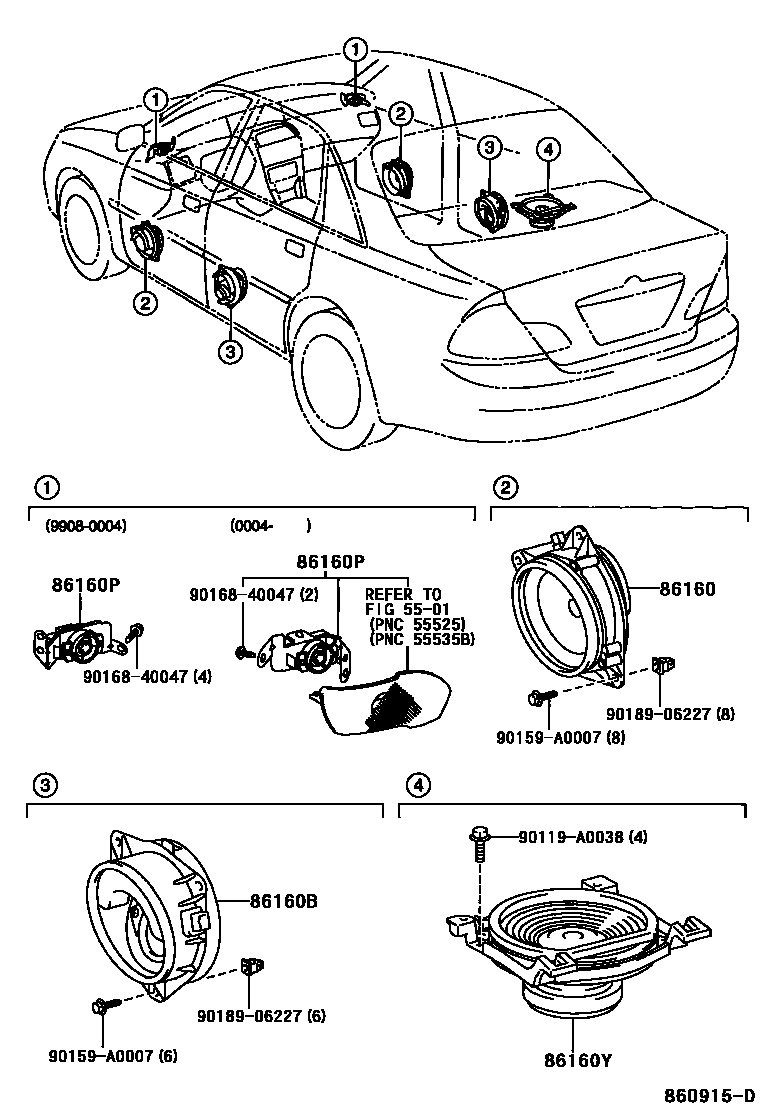

Parts diagram

5501

86160SPEAKER ASSY, FRONT NO.1

main86160-AC040i199908-200206

W(6 SPEAKER),RH

main86160-AC070i200206

W(6 SPEAKER),LH

main86160-AC140i199908-200206

W(7 SPEAKER),RH

main86160-AC150i199908-200206

W(7 SPEAKER),LH

86160BSPEAKER ASSY, REAR

main86160-AC080i199908-200206

W(6 SPEAKER),RH

main86160-AC110i200206

W(6 SPEAKER),LH

main86160-AC160i199908-200206

W(7 SPEAKER),RH

main86160-AC170i200206

W(7 SPEAKER),LH

86160PSPEAKER ASSY, FRONT NO.2

main86150-AC150i200004-200005

W(6 SPEAKER),RH

main86150-AC151i200206

W(6 SPEAKER),RH

main86150-AC160i200004-200005

W(6 SPEAKER),LH

main86150-AC161i200206

W(6 SPEAKER),LH

main86150-AC170i200004-200005

W(7 SPEAKER),RH

main86150-AC171i200206

W(7 SPEAKER),RH

main86150-AC180i200004-200005

W(7 SPEAKER),LH

main86150-AC181i200206

W(7 SPEAKER),LH

main86160-AC120i199908-200004

W(6 SPEAKER),RH

main86160-AC130i199908-200004

W(6 SPEAKER),LH

main86160-AC190i199908-200004

W(7 SPEAKER),RH

main86160-AC200i199908-200004

W(7 SPEAKER),LH

86160YSPEAKER ASSY, REAR NO.2

main86160-AC180i199908-200206

90119A0038

main90119-A0038

90159A0007

main90159-A0007

9016840047

main90168-40047

9018906227

main90189-06227

9 parts on this diagram · 1 diagram in section
