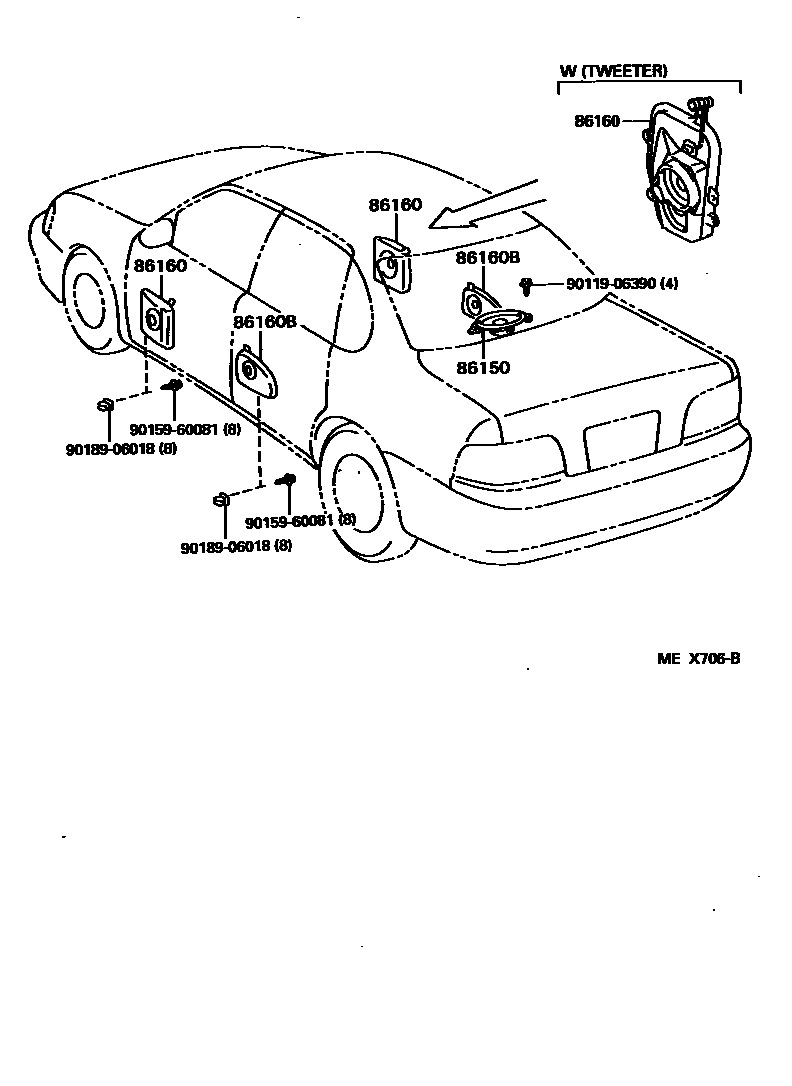

Toyota AVALON — SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
86160SPEAKER ASSY, FRONT NO.1
RH
LH
W(6 OR 7 SPEAKERS),RH
W(6 OR 7 SPEAKERS),LH
W(6 SPEAKER),RH
W(6 SPEAKER),LH
86160BSPEAKER ASSY, REAR
RH
RH
LH
LH
W(6 OR 7 SPEAKERS),RH
W(6 OR 7 SPEAKERS),LH
W(6 SPEAKER),RH
W(6 SPEAKER),LH
9011906390
main90119-06390
9015960081
main90159-60081
9018906018
main90189-06018
6 parts on this diagram · 1 diagram in section
