E
EPC Data

Toyota AVALON — SIDE MOULDING

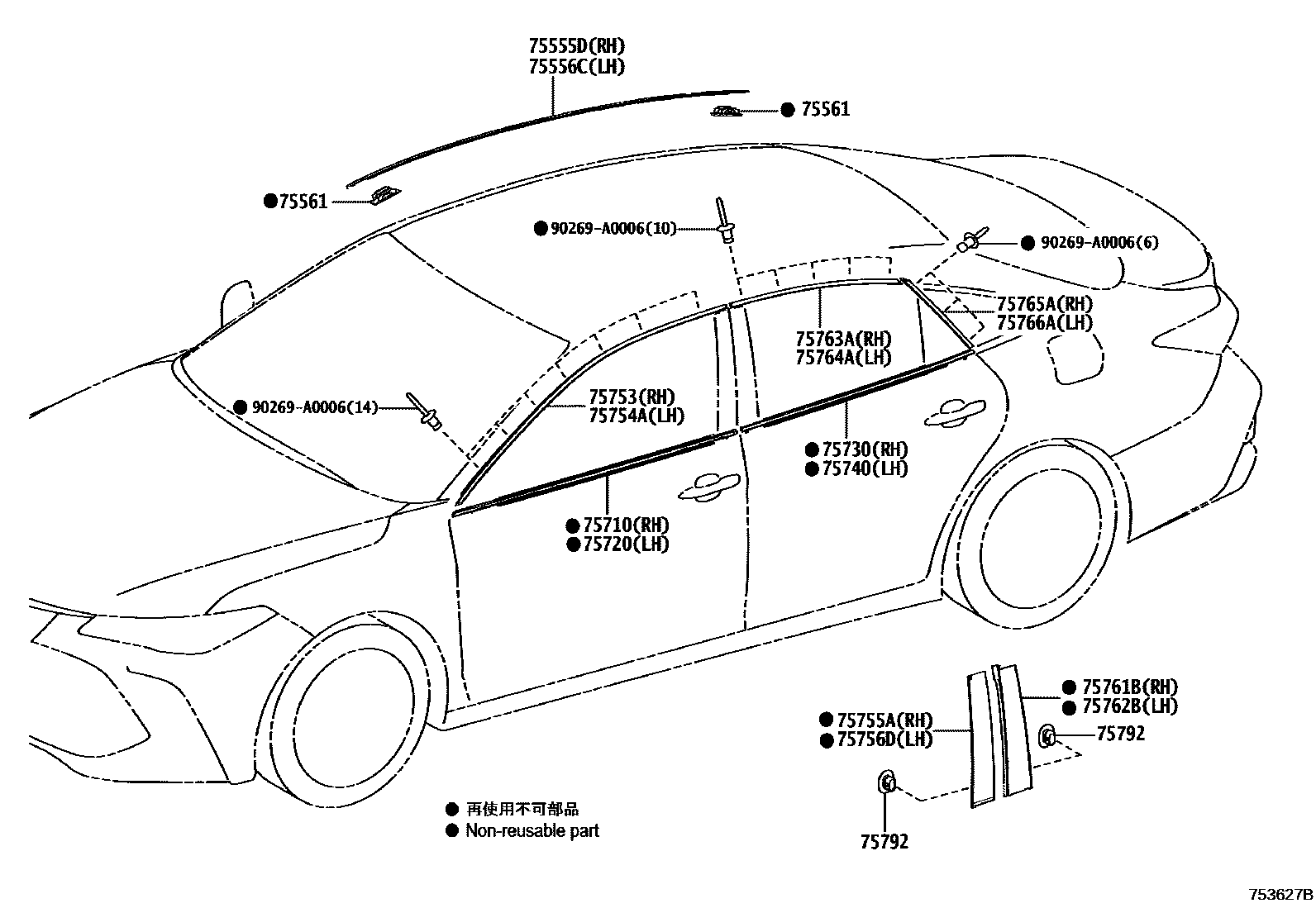

Parts diagram
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-07020i202008
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-07020i201804-202008
DECONTENT PACKAGE
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-08040×4i201804-202008
DECONTENT PACKAGE
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-07030i202008
main75710-07050i201908-201910
TRD PACKAGE
main75710-07051i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-07030i201804-202008
main75720-07050i201908-201910
TRD PACKAGE
main75720-07051i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-07030i201804-202008
main75730-07050i201908-201910
TRD PACKAGE
main75730-07051i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-07030i201804-202008
main75740-07050i201908-201910
TRD PACKAGE
main75740-07051i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-07030i202008-202107
main75753-07050i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-07030i202008
main75754-07050i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
main75755-07030i202008
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
main75756-07030i201804-202008
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
main75761-07030i201804-202008
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
main75762-07030i201804-202008
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
main75763-07030i201804-202008
main75763-07050i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
main75764-07030i201804-202008
main75764-07050i202008-202107
NIGHTSHADE EDITION; TRD PACKAGE
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
main75765-07030i201804-202008
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
main75766-07030i202008
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-0R010×4i201804-202008
90269A0006
main90269-A0006

19 parts on this diagram · 2 diagrams in section

SIDE MOULDING for Toyota AVALON

This section contains 33 genuine Toyota parts for the SIDE MOULDING system of the Toyota AVALON. Key components include: HOOD & FRONT FENDER, MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH, CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1, MOULDING ASSY, FRONT DOOR BELT, RH.
