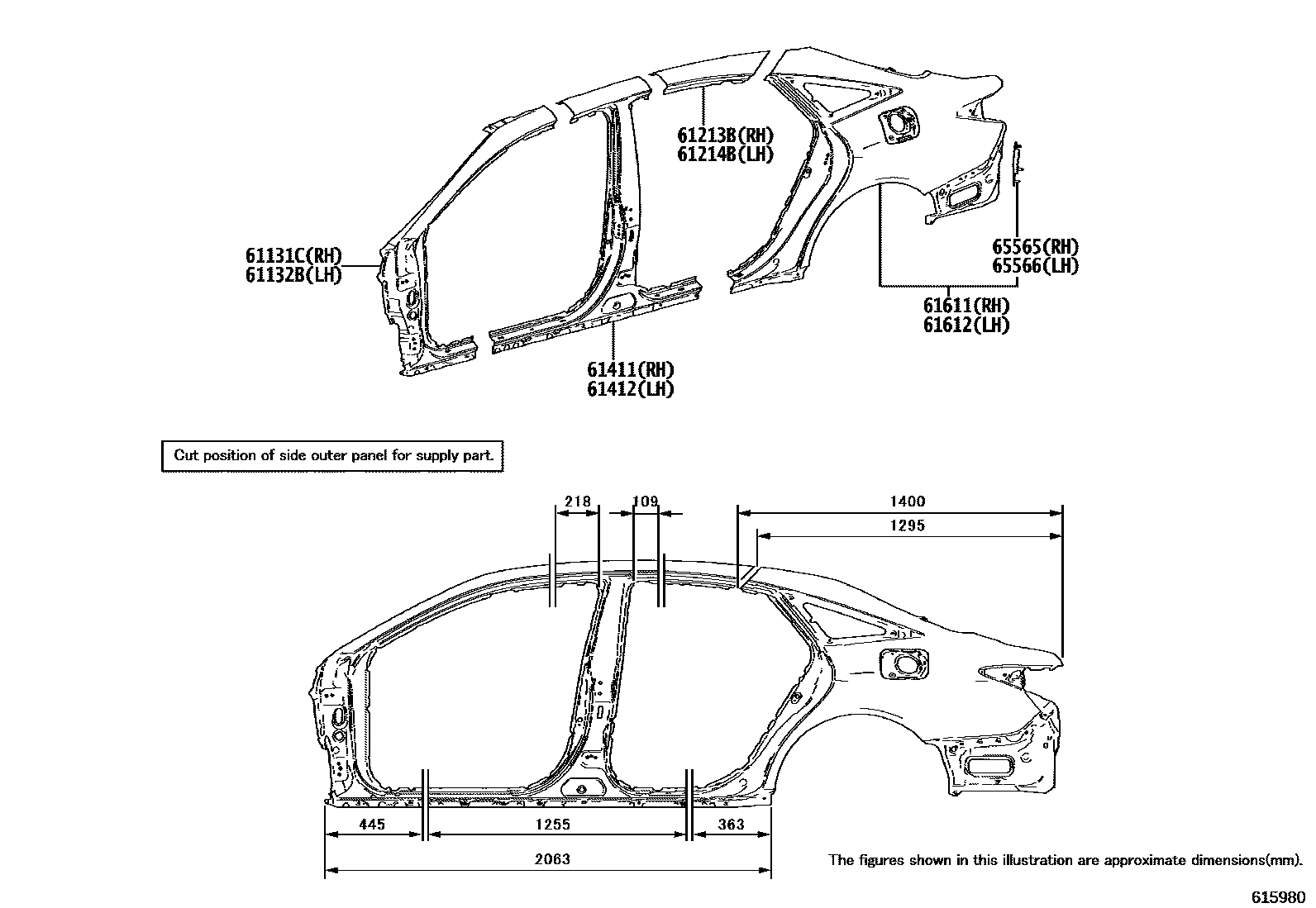

Toyota AVALON — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH 0004 1INNER PANEL,RH 0005 1INNER PANEL,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-07040iAXXH50,GSX50201804-202008

61132BPILLAR, FRONT BODY, OUTER LH

main61132-07040iAXXH50,GSX50201804-202008

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-07050iAXXH50,GSX50201804-202008

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-07050iAXXH50,GSX50201804-202008

61411PANEL, ROCKER, OUTER RH

main61311-07020iAXXH50,GSX50201804-202008

61412PANEL, ROCKER, OUTER LH

main61312-07020iAXXH50,GSX50201804-202008

61611PANEL, QUARTER, RH

main61601-07120iAXXH50,GSX50201804-202008

61612PANEL, QUARTER, LH

main61602-07100iAXXH50,GSX50201804-202008

65565PATCH, SIDE PANEL REAR END, RH

main65565-06110iAXXH50,GSX50201804-202008

65566PATCH, SIDE PANEL REAR END, LH

main65565-06110iAXXH50,GSX50201804-202008

10 parts on this diagram · 5 diagrams in section
