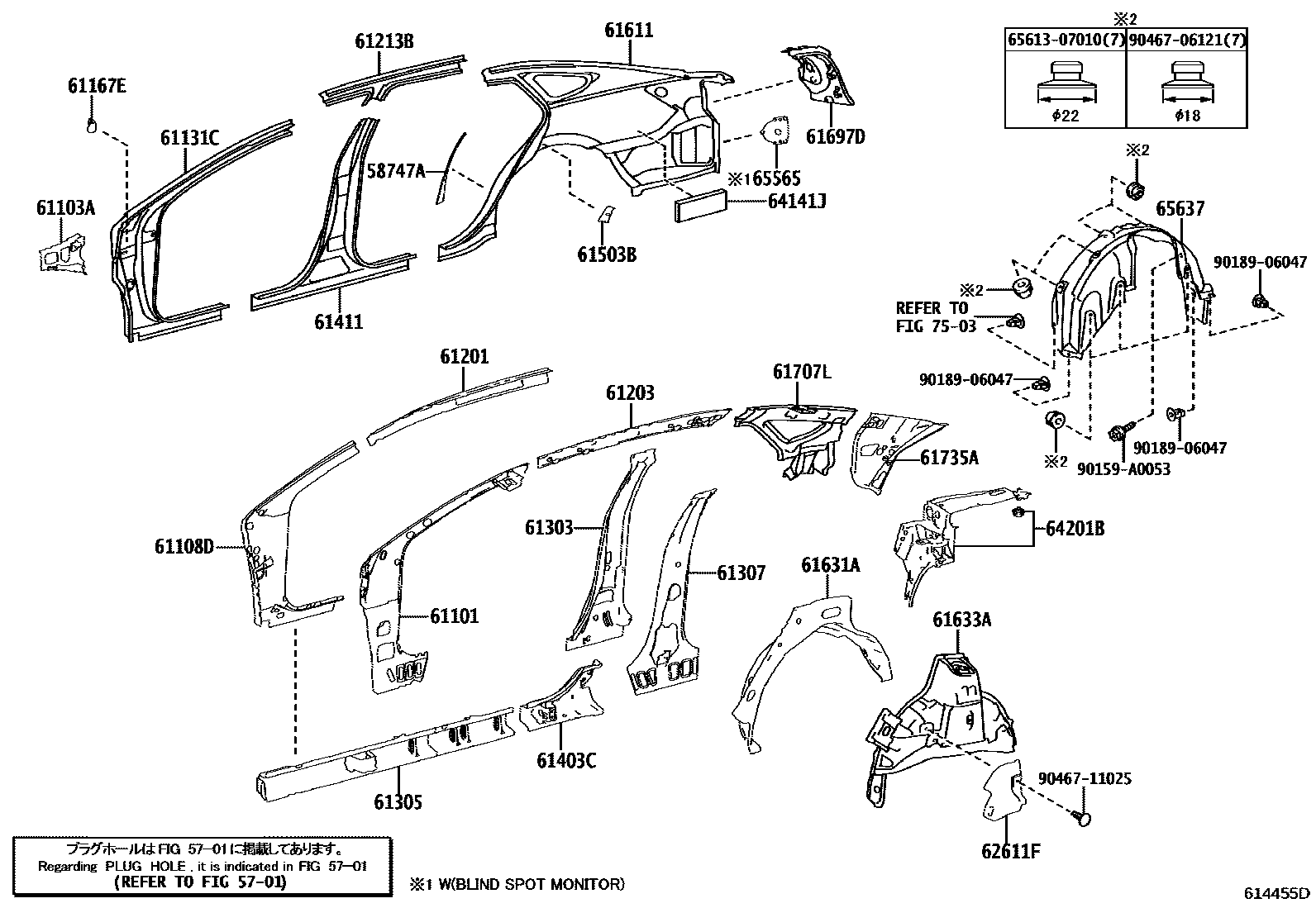

Toyota AVALON — SIDE MEMBER
5701
58747APROTECTOR, QUARTER PANEL, REAR RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61167EBRACKET, NO.6 PILLAR OUTER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61697DHOUSING, QUARTER PANEL END, RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61735APANEL, ROOF SIDE, INNER REAR RH
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
64141JSILENCER, QUATER PANEL, RH
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
65565PATCH, SIDE PANEL REAR END, RH
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
65637LINER, REAR WHEEL HOUSE, RH
7503
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
90159A0053
main90159-A0053
9018906047
main90189-06047
9046706121
main90467-06121
9046711025
main90467-11025
33 parts on this diagram · 2 diagrams in section
