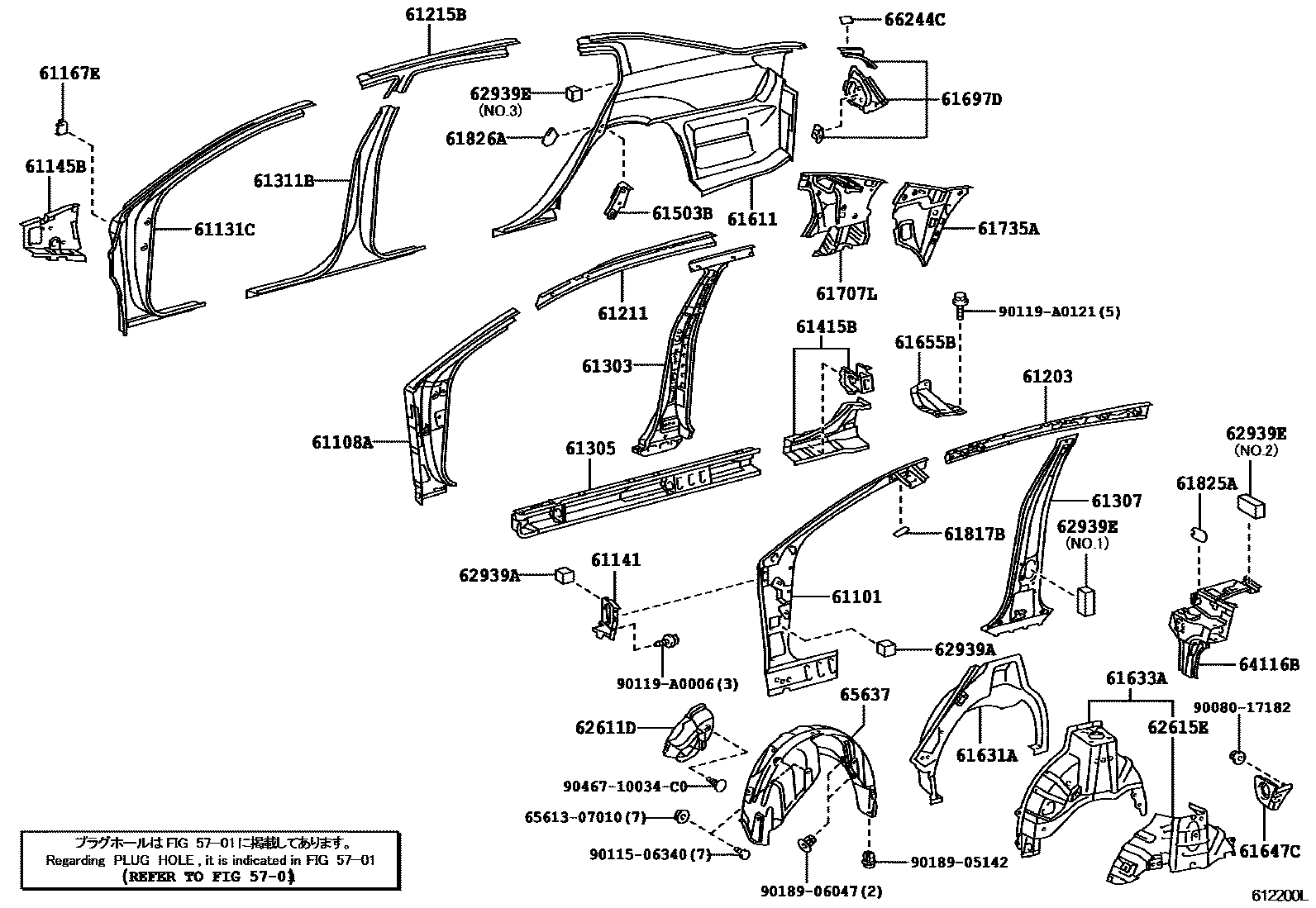

Toyota AVALON — SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH

5701

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-AC010iGSX30200707-201003

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-AC030iGSX30200501-200707

61131CPILLAR, FRONT BODY, OUTER RH

main61131-AC020iGSX30200501-200707

61141GUSSET, FRONT PILLAR UPPER CORNER, RH

main61141-AC010iGSX30200501-200707

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-AC020iGSX30200501-200707

61167EBRACKET, NO.6 PILLAR OUTER

main61168-06010iGSX30200501-200707

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-AC010iGSX30200501-200707

61211RAIL, ROOF SIDE, OUTER RH

main61211-AC020iGSX30200501-200707

61215BRAIL, ROOF SIDE, OUTER NO.3 RH

main61215-AC010iGSX30200501-200707

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-AC020iGSX30200501-200707

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-AC901iGSX30200501-200707

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-AC010iGSX30200501-200707

61311BPILLAR, CENTER BODY, OUTER RH

main61311-AC020iGSX30200501-200707

61415BEXTENSION, ROCKER, OUTER RH

main61415-AC901iGSX30200501-200707

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-AC020iGSX30200501-200707

61611PANEL, QUARTER, RH

main61611-AC030iGSX30200501-200707

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-AC901iGSX30200501-200707

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-AA901iGSX30..LIMD,XLS200707-201003

61647CREINFORCEMENT, WHEEL HOUSE, RH

main61647-07010iGSX30201003-201210

main61647-AC010iGSX30200501-200707

61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH

main61655-33010iGSX30200501-200707

61697DHOUSING, QUARTER PANEL END, RH

main61697-AC901iGSX30200501-200707

61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH

main61707-AC010iGSX30200501-200707

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-AC020iGSX30200501-200707

61817BCOVER, ROOF SIDE, INNER LOWER RH

main61817-AA010iGSX30200501-200707

main61824-12060iGSX30201010

61825APLATE, NOISE CONTROL, NO.2

main61825-AA020×2iGSX30200501-200707

61826APLATE, NOISE CONTROL, NO.3

main61826-AA010×2iGSX30..LIMD,XLS200707-201003

62611DPAD, QUARTER WHEEL HOUSE, RH

main62611-AC010iGSX30200501-200707

main62611-AC011iGSX30201102

62615ECOVER, QUARTER WHEEL HOUSE, INNER RH

main62615-AA011×2iGSX30..LIMD,XLS200707-201003

62939ASILENCER, QUARTER VENT

main62939-0T010×4iGSX30201204

main62939-32030×4iGSX30200501-200707

62939ESILENCER, QUARTER VENT

main62939-06010×2iGSX30..LIMD,XLS200707-201003

NO.1

main62939-07010×2iGSX30..LIMD,XLS200707-201003

NO.3

main62939-AC010×2iGSX30200501-200707

NO.2

64116BREINFORCEMENT, UPPER BACK, RH

main64201-AC010iGSX30..XL200707

65637LINER, REAR WHEEL HOUSE, RH

main65637-07010iGSX30201003

main65637-AC010iGSX30..XL200707

66244CPROTECTOR, REAR BODY, NO.2

main66244-02010×2iGSX30200501-200505

main66244-07010×2iGSX30200506-200707

6561307010STRIP, SIDE GATE HINGE, INSIDE

main65613-07010

9008017182

main90080-17182

9011506340

main90115-06340

90119A0006

main90119-A0006

90119A0121

main90119-A0121

9018905142

main90189-05142

9018906047

main90189-06047

9046710034C0

main90467-10034C0

42 parts on this diagram · 4 diagrams in section
