Toyota AVALON — SHORT BLOCK ASSEMBLY

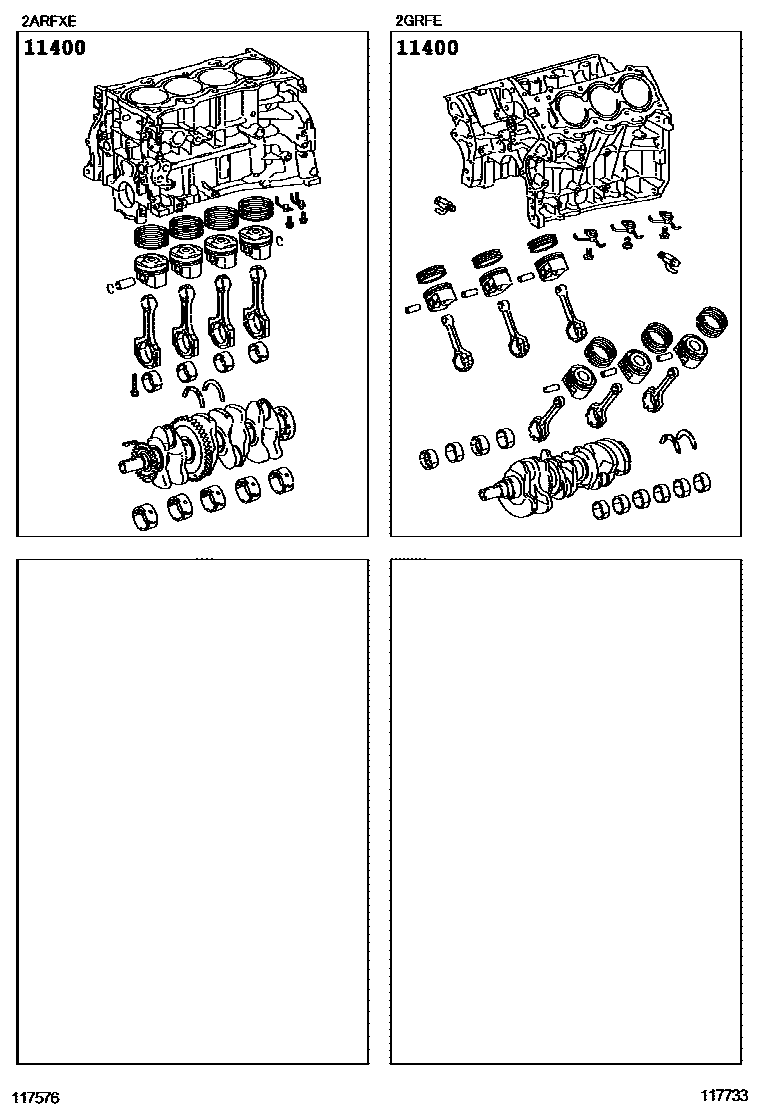

Parts diagram
11400BLOCK ASSY, SHORT
main11400-0P050i201210-201409
main11400-0P051i201409-201509
main11400-0P052i201510
main11400-0V100i201510-201708
(L)
main11400-36070i201708

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota AVALON

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota AVALON. Key components include: BLOCK ASSY, SHORT.
