Toyota AVALON — SHIFT LEVER & RETAINER

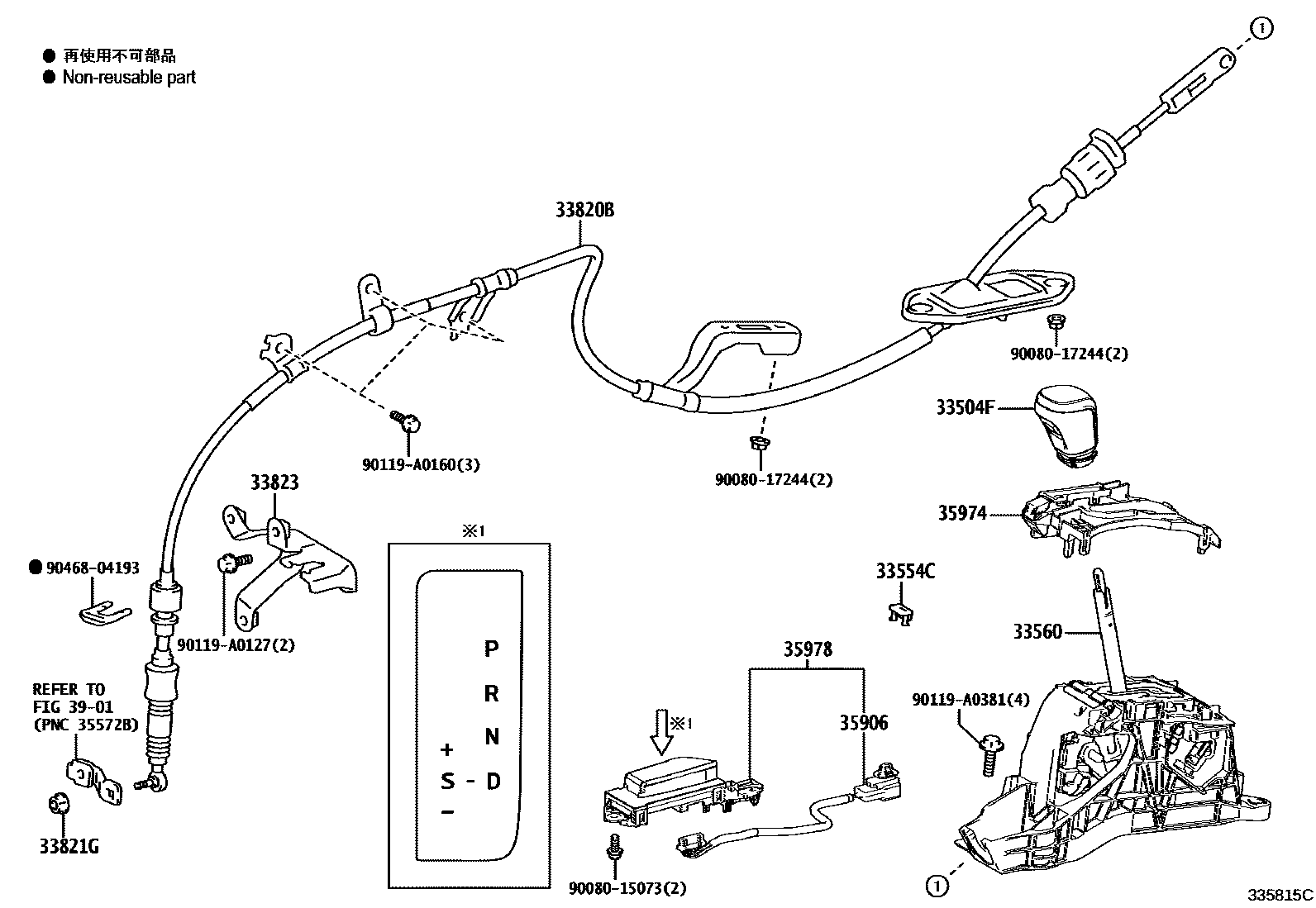

Parts diagram
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-06310-C0i201804-201908
BLACK,TRIM1#,4#
main33504-06310-C0i201804-201908
BLACK,TRIM1#,2#
main33504-06440-C0i201908-202008
BLACK,TRIM1#,4#
main33504-06440-C0i201908-202008
BLACK,TRIM1#,2#
main33504-06440-C0i201908-202107
BLACK,TRIM1#,2#,4#
main33504-06440-C0i202008-202107
BLACK,TRIM2#,4#
main33504-07040-C0i201804-201908
BLACK,TRIM1#,2#,4#
33554CCOVER, SHIFT LOCK RELEASE BUTTON
main33554-07070-B0i201804-202008
NEUTRAL WARM GRAY,TRIM1#,43
main33554-07070-B0i201804-202107
NEUTRAL WARM GRAY,TRIM1#
main33554-07070-B0i202008-202107
NEUTRAL WARM GRAY,TRIM1#,4#
main33554-07070-C0i201804-202008
BLACK,TRIM40
main33554-07070-C0i201804-202107
BLACK,TRIM2#
main33554-07070-C0i201804-202107
BLACK,TRIM2#,4#
33560UNIT ASSY, SHIFT LOCK CONTROL
main33560-06400i201804-202107
33820BCABLE ASSY, TRANSMISSION CONTROL
main33820-06520i201804-202107
main33820-06530i201805-202008
main33820-06590i202008-202107
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
main90178-A0024i201805-202008
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
main33823-06040i201804-202107
main33823-06070i201805-202008
35906WIRE SUB-ASSY, INDICATOR LAMP
main35906-07070i201804-202107
main35906-07080i201805-202008
35974HOUSING, POSITION INDICATOR, LOWER
main35974-06190i201804-202107
35978INDICATOR, SHIFT POSITION
main35978-07030i201804-202107
main35978-07040i201805-202008
3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)
→ Go to FIG 39-01
9008015073
main90080-15073
9008017244
main90080-17244
90119A0127
main90119-A0127
90119A0160
main90119-A0160
90119A0381
main90119-A0381
9046804193
main90468-04193

16 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota AVALON

This section contains 19 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota AVALON. Key components include: KNOB SUB-ASSY, SHIFT LEVER, COVER, SHIFT LOCK RELEASE BUTTON, UNIT ASSY, SHIFT LOCK CONTROL, CABLE ASSY, TRANSMISSION CONTROL, NUT (FOR TRANSMISSION CONTROL CABLE).
