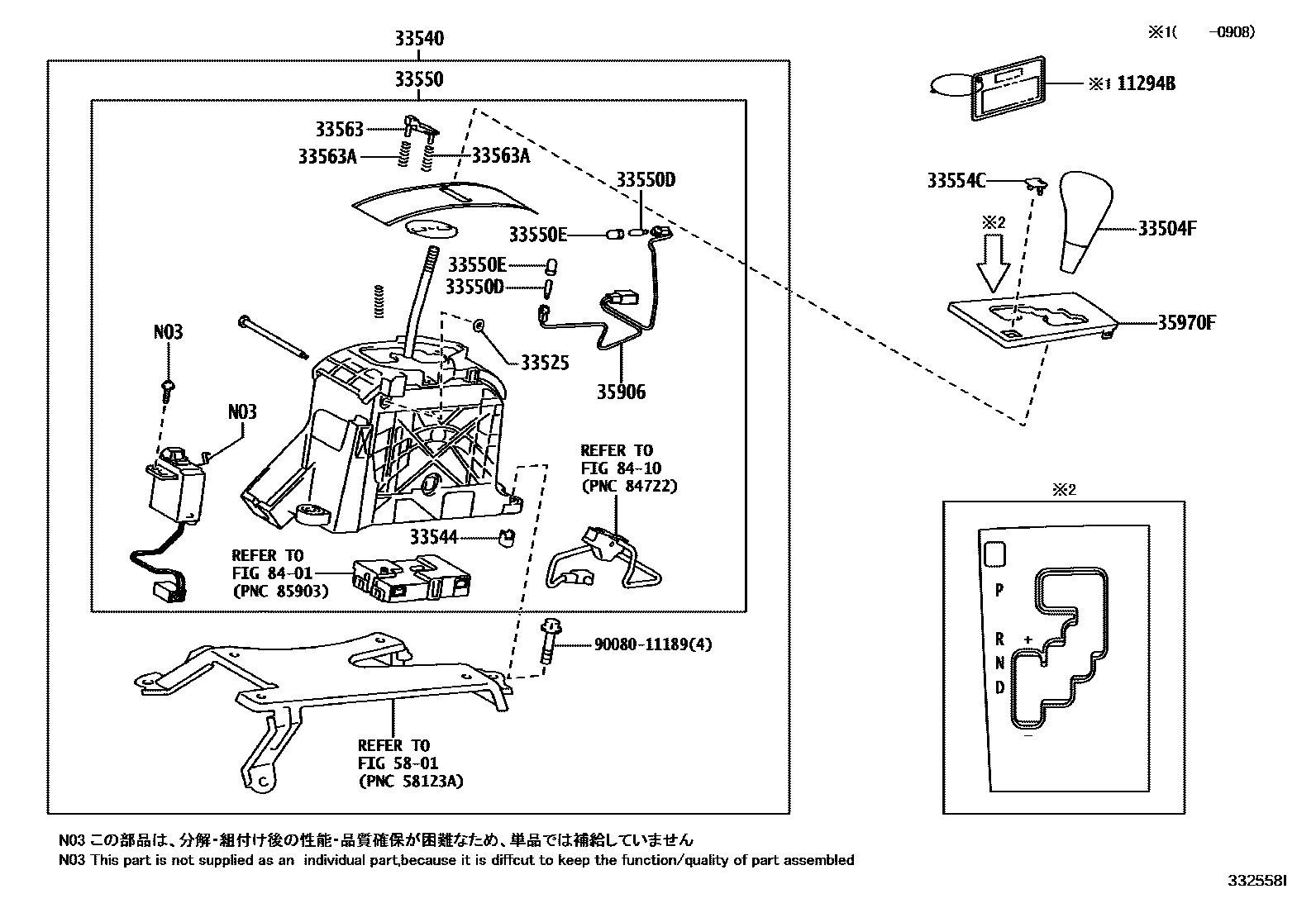

Toyota AVALON — SHIFT LEVER & RETAINER
11294BLABEL, LEAK DETECTION PUMP INFORMATION, NO.1
33504FKNOB SUB-ASSY, SHIFT LEVER
GRAY,TRIM1#
DUMMY NO. FOR 394W TOURIN,TRIM18
IVORY,TRIM0#
LT.GRAY,TRIM17
INTERIOR UPGRADE PACK,GRAY,TRIM16
SANDAL / DK WOOD,TRIM18
INTERIOR UPGRADE PACK,BLACK / MED YELLOW BRN,TRIM0#,1#
INTERIOR UPGRADE PACK,BLACK / DRK RED BRN,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
INTERIOR UPGRADE PACK,IVORY & LT.BROWN,TRIM0#
LT.GRAY & LT.BROWN,TRIM17
GRAY & LT.BROWN,TRIM16
DECONTENT PACKAGE,BLACK,TRIM0#,1#,2#
STEERING WHEEL-LEATHER W/STEERING S/W,DK.GRAY,TRIM18
33525SUPPORT, SHIFT LEVER
33540PLATE ASSY, SHIFT LEVER
33544INSERT, SHIFT LEVER, NO.1
33550FLOOR SHIFT ASSY, TRANSMISSION
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
35906WIRE SUB-ASSY, INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
5801
8401
8410
9008011189
main90080-11189
17 parts on this diagram · 4 diagrams in section
