Toyota AVALON — SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
DK.ROSE,TRIM41
DK.ROSE,TRIM4#,41
ADOBE,TRIM42
ROSE STONE,TRIM43
BLACK,TRIM2#
DK. ADOBE,TRIM4#
ROSE STONE,TRIM4#
SANDAL WOOD,TRIM4#
LEATHER PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
LEATHER PACKAGE,DK.ROSE,TRIM4#
DK.ROSE,TRIM41
DK.ADOBE,TRIM42
LEATHER PACKAGE,DK.ADOBE,TRIM4#
ROSE STONE,TRIM43
LEATHER PACKAGE,ROSE STONE,TRIM4#
LEATHER PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
DK. ADOBE,TRIM4#
LEATHER PACKAGE,DK. ADOBE,TRIM4#
ROSE STONE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM4#
SANDAL WOOD,TRIM4#
LEATHER PACKAGE,SANDAL WOOD,TRIM4#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511ERING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
14V 3.4W
12V 3.4W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33623BUTTON, SHIFT LEVER KNOB
BLACK,TRIM2#
DK.ROSE,TRIM41
ADOBE,TRIM4#
ROSE STONE,TRIM4#
SANDAL WOOD,TRIM4#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
35559SPRING, MANUAL DETENT
35559APIN (FOR MANUAL DETENT SPRING)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
BLACK,TRIM2#
DK.ROSE,TRIM41
ADOBE,TRIM4#
ROSE STONE,TRIM4#
SANDAL WOOD,TRIM4#
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9011908946
main90119-08946
9015940222
main90159-40222
9016850066
main90168-50066
9331514010
main93315-14010
9331914006
main93319-14006
35 parts on this diagram · 2 diagrams in section

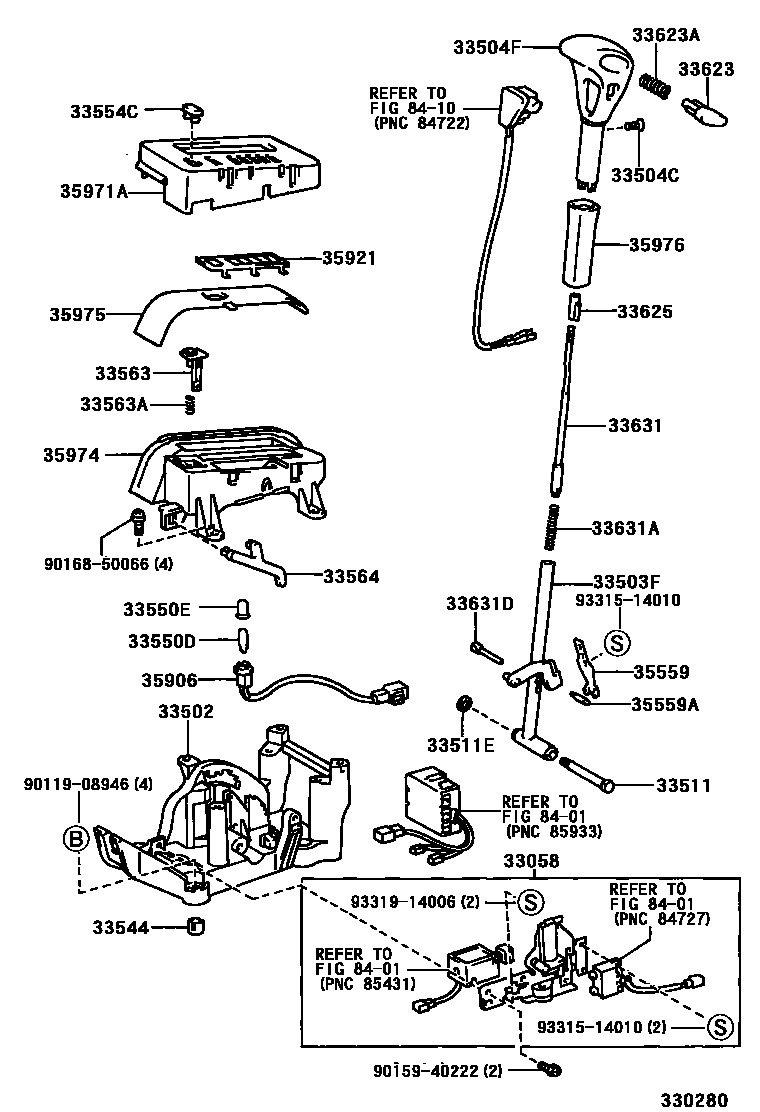

SHIFT LEVER & RETAINER for Toyota AVALON
This section contains 48 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota AVALON. Key components include: BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, PLATE SUB-ASSY, SHIFT LEVER, LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT), SCREW (FOR SHIFT LEVER KNOB SETTING), KNOB SUB-ASSY, SHIFT LEVER.
