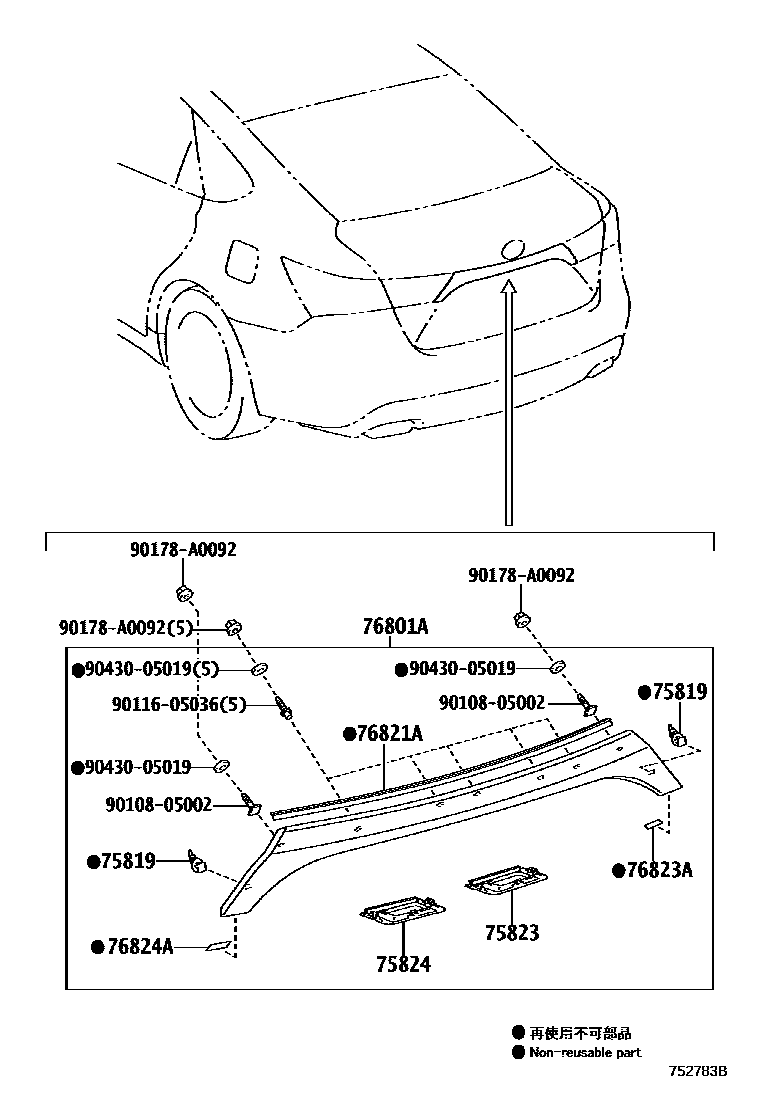

Toyota AVALON — REAR MOULDING

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main76817-07010iAVX40,GSX40201210-201510

75823MOULDING, LUGGAGE COMPARTMENT DOOR, SIDE RH

main76813-07010iAVX40,GSX40201210-201510

75824MOULDING, LUGGAGE COMPARTMENT DOOR, SIDE LH

main76814-07010iAVX40,GSX40201210-201510

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-07050iAVX40,GSX40201210-201510

PLATED

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76825-07020iAVX40,GSX40201210-201510

76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH

main76822-07020iAVX40,GSX40201210-201510

76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH

main76822-07020iAVX40,GSX40201210-201510

9010805002

main90108-05002

9011605036

main90116-05036

90178A0092

main90178-A0092

9043005019

main90430-05019

11 parts on this diagram · 1 diagram in section
