Toyota AVALON — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-04010iAVX40,GSX40201210-201510

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-04010iAVX40,GSX40201210-201510

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-04010iAVX40,GSX40201210-201510

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-04010iAVX40,GSX40201210-201510

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-07030iAVX40,GSX40201210-201510

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-07020iAVX40,GSX40201210-201510

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E050iAVX40,GSX40201210-201510

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0E070iAVX40,GSX40201210-201510

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90109A0031

main90109-A0031

90119A0186

main90119-A0186

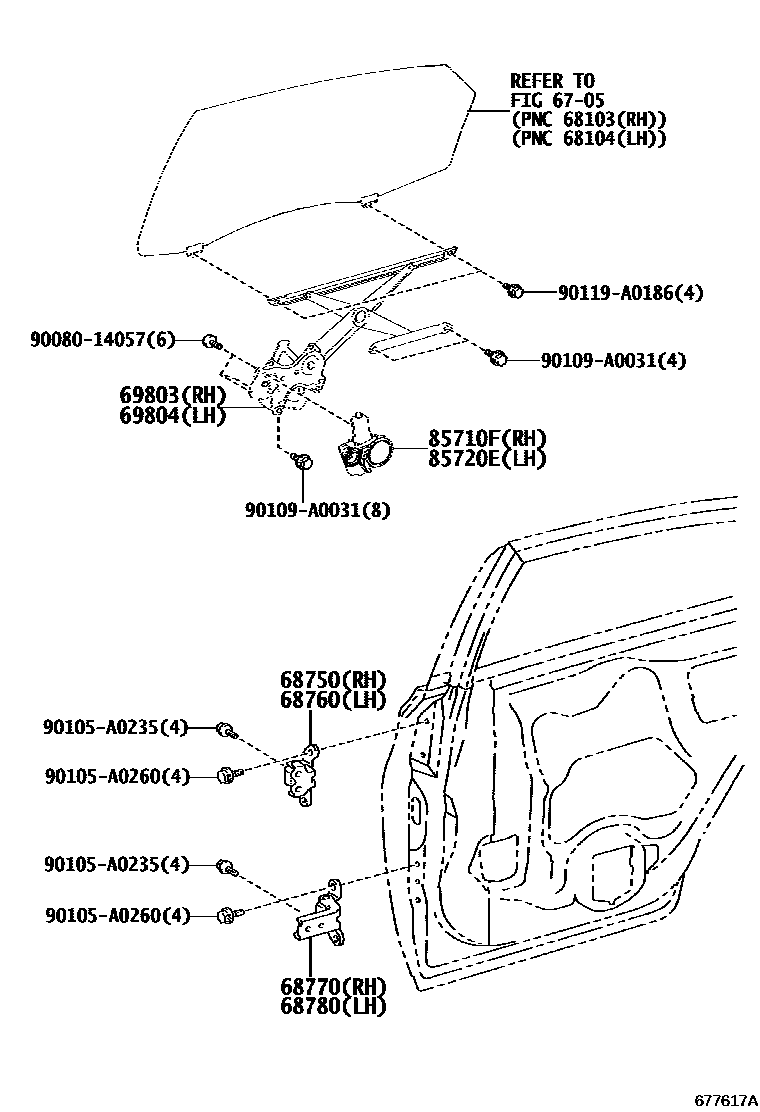

14 parts on this diagram · 1 diagram in section
