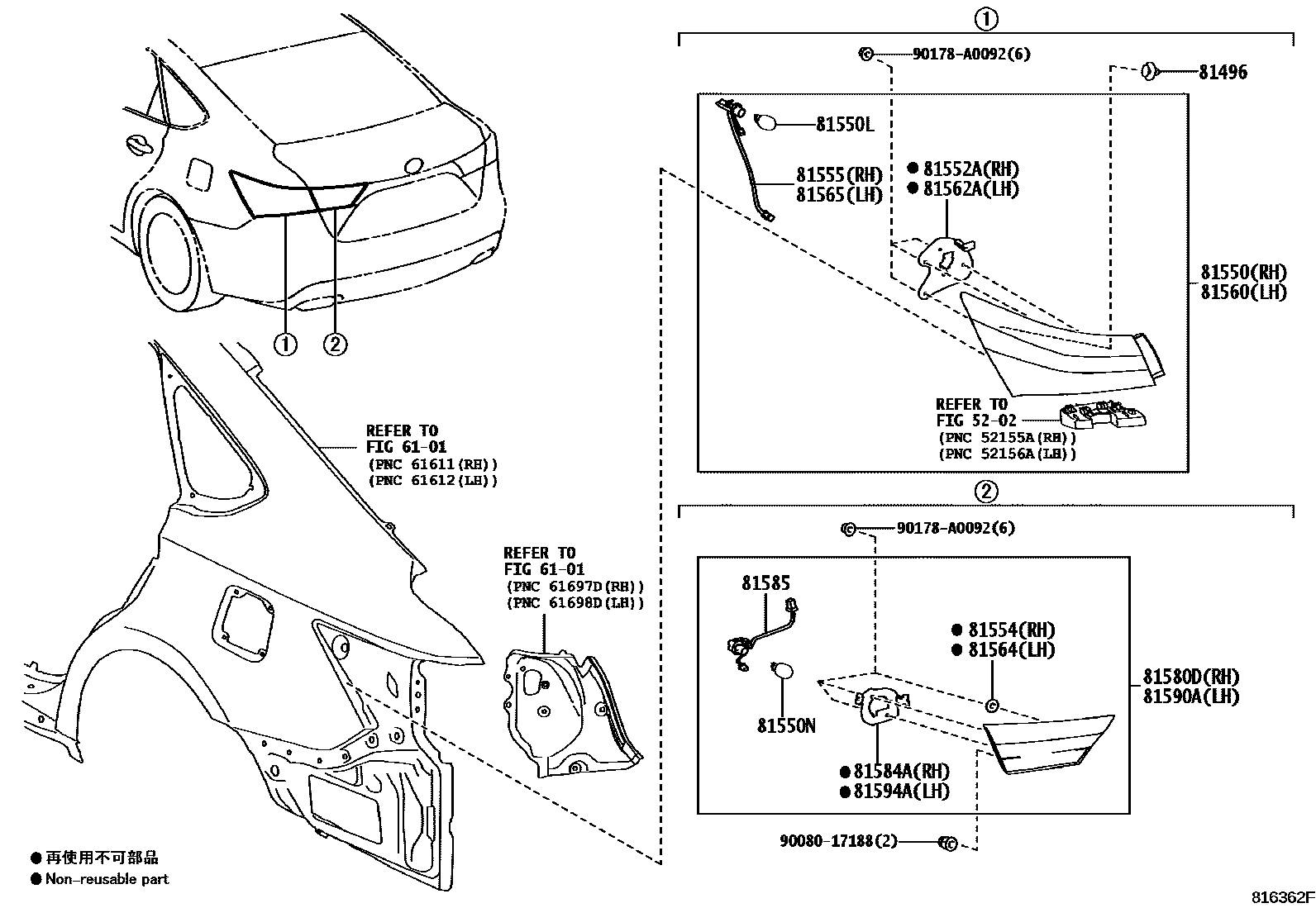

Toyota AVALON — REAR COMBINATION LAMP

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iAVX40,GSX40201210-201510

81550LAMP ASSY, REAR COMBINATION, RH

main81550-07070iAVX40,GSX40201210-201510

main81550-07080iAVX40,GSX40201510-201612

sub81550-07081

main81550-07081iAVX40,GSX40201612

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059iAVX40,GSX40201210-201510

12V 16W

81550NBULB, BACK UP LAMP

main90981-11059iAVX40,GSX40201210-201510

12V 16W

81552AGASKET, REAR COMBINATION LAMP, RH

main81554-07070iAVX40,GSX40201210-201510

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-32150iAVX40,GSX40201210-201510

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-07070iAVX40,GSX40201210-201612

main81555-07081iAVX40,GSX40201612

81560LAMP ASSY, REAR COMBINATION, LH

main81560-07070iAVX40,GSX40201210-201510

main81560-07080iAVX40,GSX40201510-201612

sub81560-07081

main81560-07081iAVX40,GSX40201612

81562AGASKET, REAR COMBINATION LAMP, LH

main81554-07070iAVX40,GSX40201210-201510

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-32150iAVX40,GSX40201210-201510

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-07070iAVX40,GSX40201210-201612

main81555-07081iAVX40,GSX40201612

81580DLAMP ASSY, REAR, RH

main81580-07040iAVX40,GSX40201510-201612

sub81580-07041

main81580-07041iAVX40,GSX40201612

main81580-07070iAVX40,GSX40201210-201510

81584AGASKET, REAR LAMP RH

main81584-07070iAVX40,GSX40201210-201510

81585SOCKET & WIRE, REAR LAMP

main81585-07031iAVX40,GSX40201612

main81585-07070iAVX40,GSX40201210-201612

sub81585-07031

81590ALAMP ASSY, REAR, LH

main81590-07030iAVX40,GSX40201510-201612

sub81590-07031

main81590-07031iAVX40,GSX40201612

main81590-07070iAVX40,GSX40201210-201510

81594AGASKET, REAR LAMP LH

main81584-07070iAVX40,GSX40201210-201510

9008017188

main90080-17188

90178A0092

main90178-A0092

20 parts on this diagram · 1 diagram in section
