Toyota AVALON — REAR BUMPER & BUMPER STAY

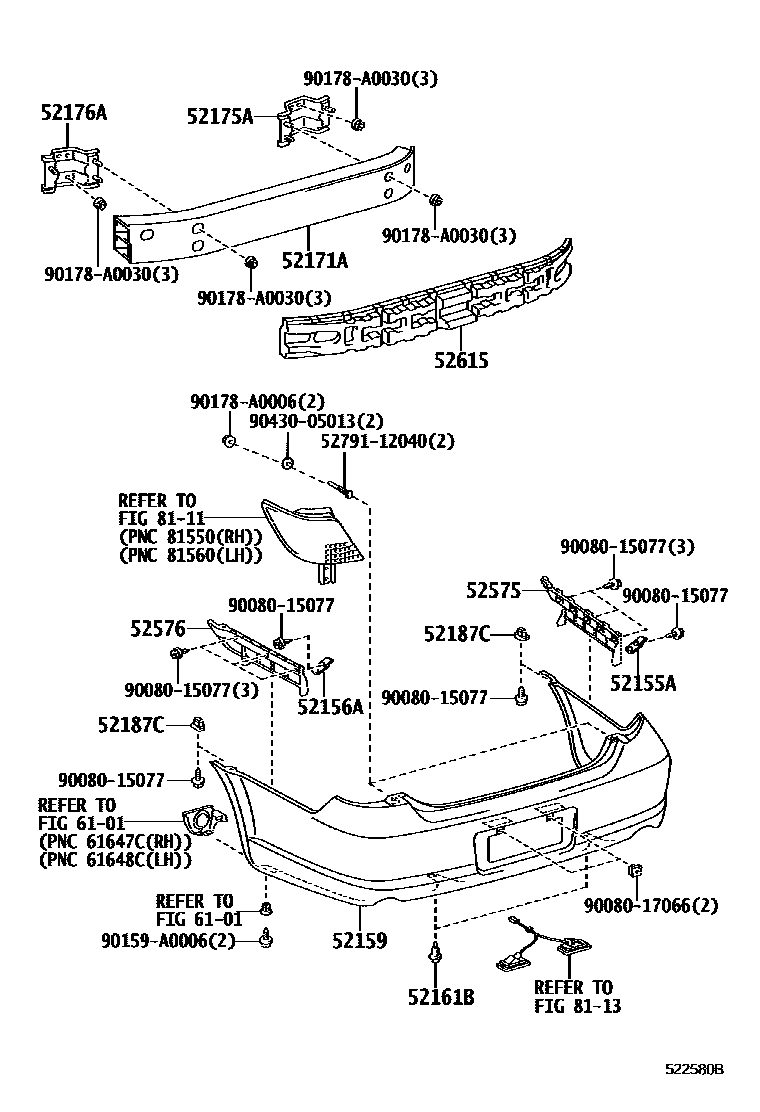

Parts diagram

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-AC010i200707-201003

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-AC010i200501-200707

52159COVER, REAR BUMPER

main52159-07900i201003

PAINT REQ.

main52159-AC904i200707-201003

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02020×2i200501-200707

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-AC060i200501-200707

main52171-AC061i201201-201210

52175ABRACKET, REAR BUMPER ARM MOUNTING, RH

main52175-AC030i200707-201003

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52176-AC030i200707-201003

52187CBRACKET, REAR BUMPER SIDE, NO.2

main52187-AC010×2i200501-200707

52575RETAINER, REAR BUMPER SIDE, RH

main52575-AC030i200707

52576RETAINER, REAR BUMPER SIDE, LH

main52576-AC030i200501-200707

52615ABSORBER, REAR BUMPER ENERGY

main52615-07010i201003

main52615-AC040i200707-201003

6101SIDE MEMBER

→ Go to FIG 61-01

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

5279112040BOLT, BUMPER MOULDING SET, NO.1

main52791-12040

9008015077

main90080-15077

9008017066

main90080-17066

90159A0006

main90159-A0006

90178A0006

main90178-A0006

90178A0030

main90178-A0030

9043005013

main90430-05013

21 parts on this diagram · 2 diagrams in section

REAR BUMPER & BUMPER STAY for Toyota AVALON

This section contains 23 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota AVALON. Key components include: SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, COVER, REAR BUMPER, PIECE, REAR BUMPER, COVER, REAR BUMPER, LOWER.
