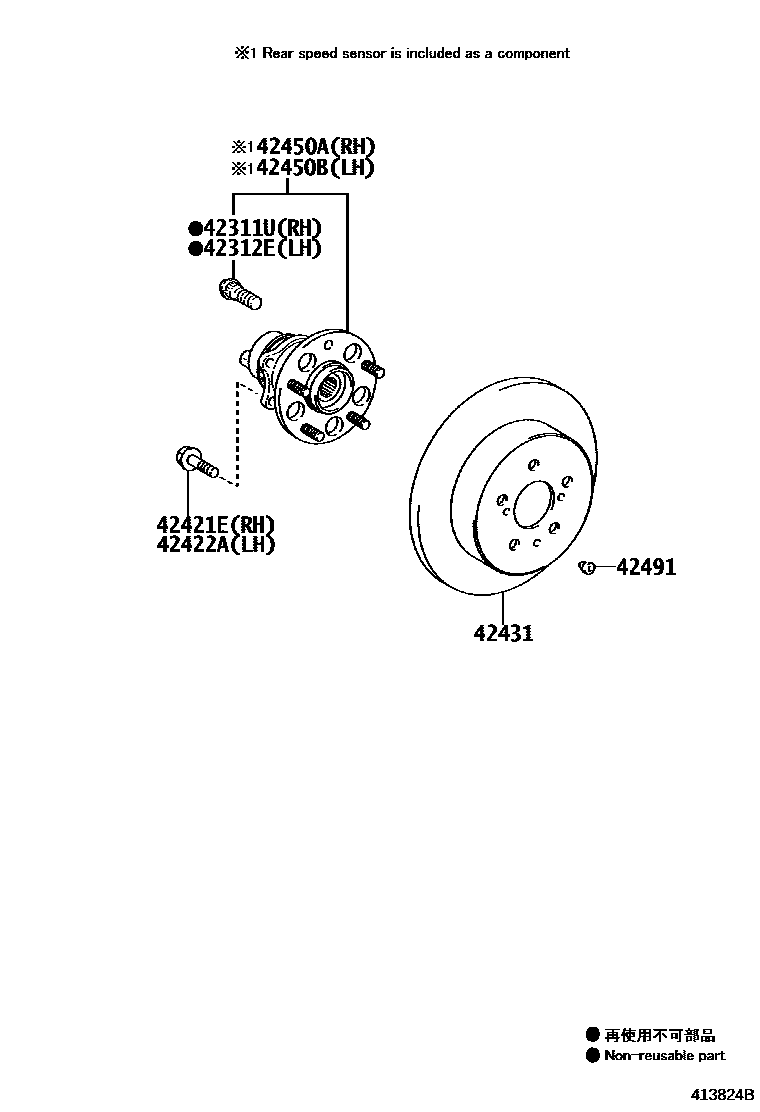

Toyota AVALON — REAR AXLE SHAFT & HUB
42311UBOLT, HUB(FOR REAR AXLE RH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42421EBOLT (FOR REAR AXLE BEARING CASE RH)
42422ABOLT (FOR REAR AXLE BEARING CASE LH)
42431DISC, REAR
42450AHUB & BEARING ASSY, REAR AXLE, RH
42450BHUB & BEARING ASSY, REAR AXLE, LH
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
8 parts on this diagram · 1 diagram in section
