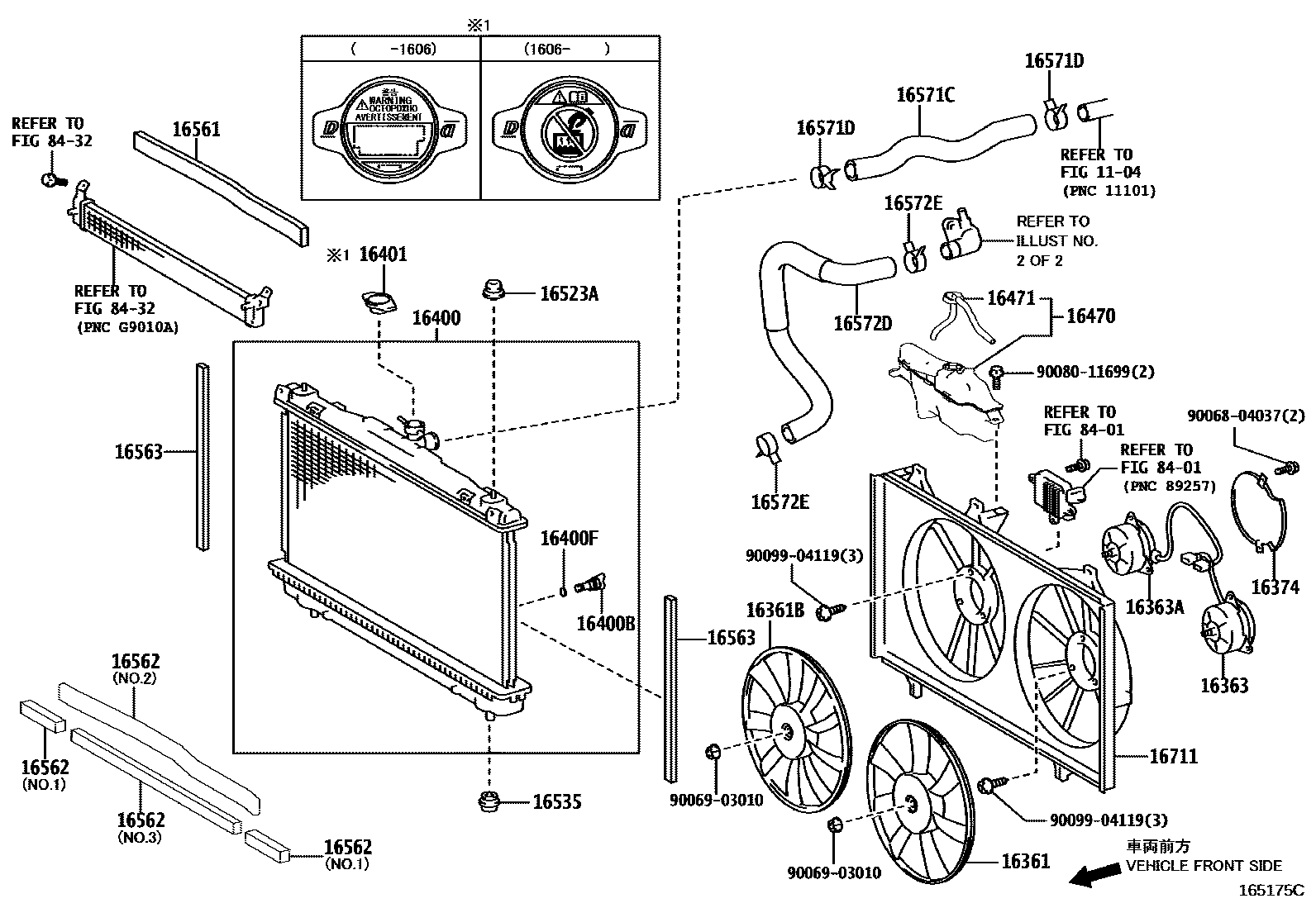

Toyota AVALON — RADIATOR & WATER OUTLET
1104
16374INSULATOR, COOLING FAN MOTOR
16400RADIATOR ASSY
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
NO.1
NO.2
NO.3
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
8401
8432
9006804037
main90068-04037
9006903010
main90069-03010
9008011699
main90080-11699
9009904119
main90099-04119
30 parts on this diagram · 4 diagrams in section
