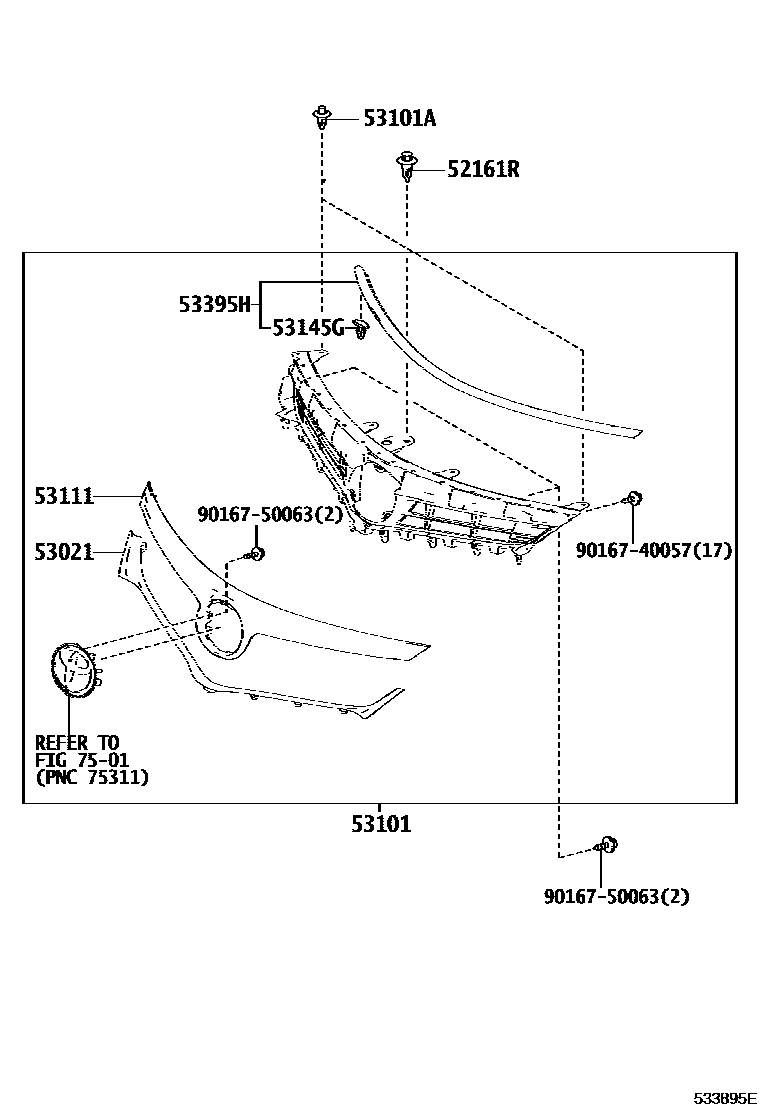

Toyota AVALON — RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-02020iAVX40,GSX40201210-201510

53021GARNISH, RADIATOR GRILLE, LOWER

main53142-07010iAVX40,GSX40201210-201510

53101GRILLE SUB-ASSY, RADIATOR

main53101-07010iGSX40201210-201510

PLATED

sub53101-07900

sub75310-06010

sub90167-50063

main53101-07070iAVX40201211-201510

PLATED

sub53101-07900

sub75310-47010

sub90167-50063

main53101-07090iGSX40201510

PLATED

sub53101-07901

sub75310-07020

sub90183-06031

main53101-07130iAVX40201510

PLATED

sub53101-07901

sub75310-47060

sub90183-06031

53101ACLIP, RADIATOR GRILLE

main90467-A0016-C0iAVX40,GSX40201210-201706

BLACK

main90467-A0016-C3iAVX40,GSX40201706

BLACK

53111GRILLE, RADIATOR

main53111-07020iAVX40,GSX40201210-201510

PLATED

main53111-07040iAVX40,GSX40201510

PLATED

53145GCLIP, RADIATOR GRILLE

main53145-60030iAVX40,GSX40201210-201510

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-07010iAVX40,GSX40201210-201510

main53395-07020iAVX40,GSX40201510

7501

9016740057

main90167-40057

9016750063

main90167-50063

10 parts on this diagram · 2 diagrams in section
