Toyota AVALON — PRE-COLLISION SYSTEM

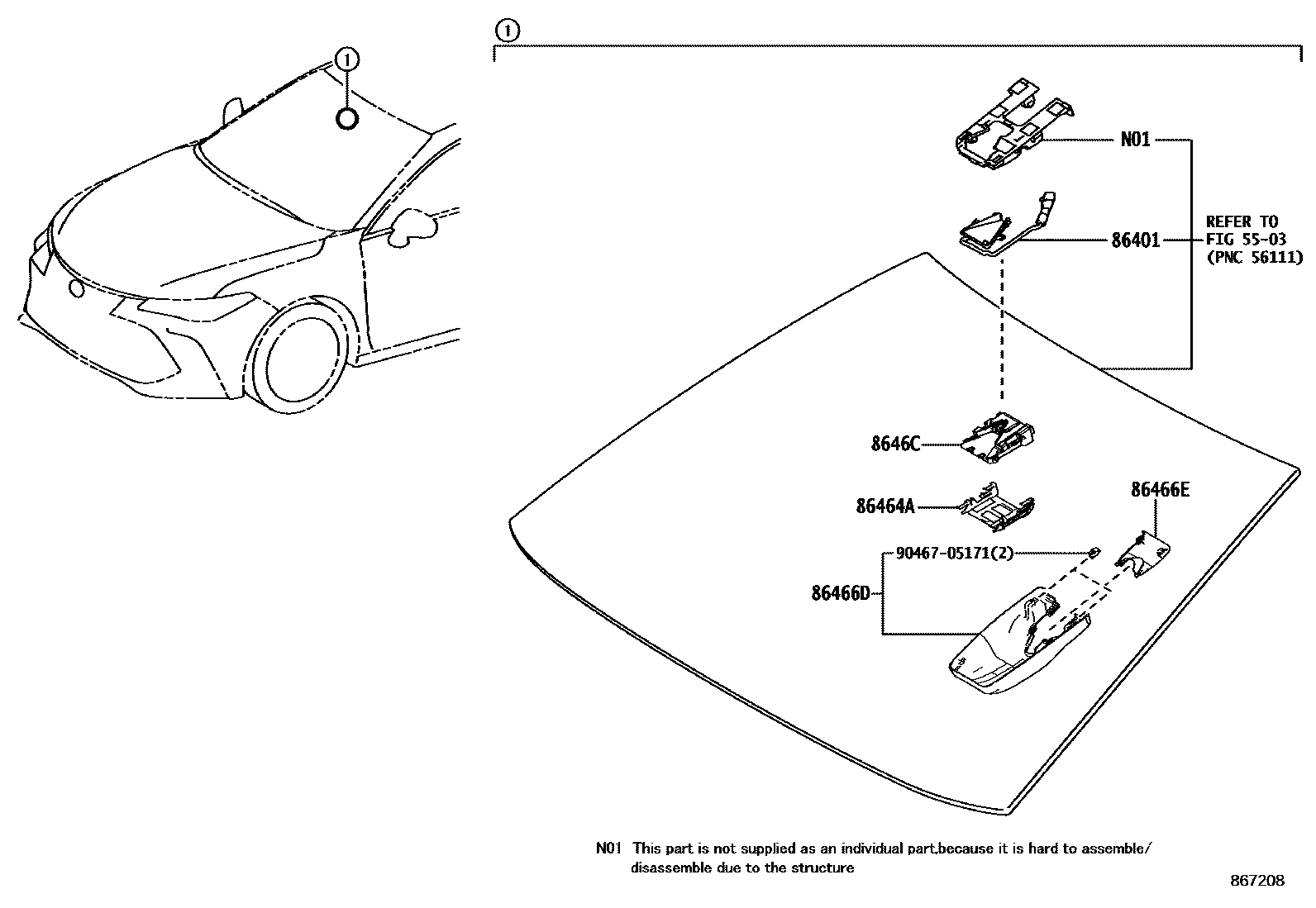

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-41010i201804-202108

main86401-47040i202108

86464ALATCH, FORWARD RECOGNITION

main86464-08010i202108

main86464-48011i201804-202108

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-41030i201804-202107

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-41040i201804-202107

8646CCAMERA, FORWARD RECOGNITION

main8646C-07020i201804-202108

main8646C-07050i202108

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota AVALON

This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota AVALON. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
