Toyota AVALON — PRE-COLLISION SYSTEM

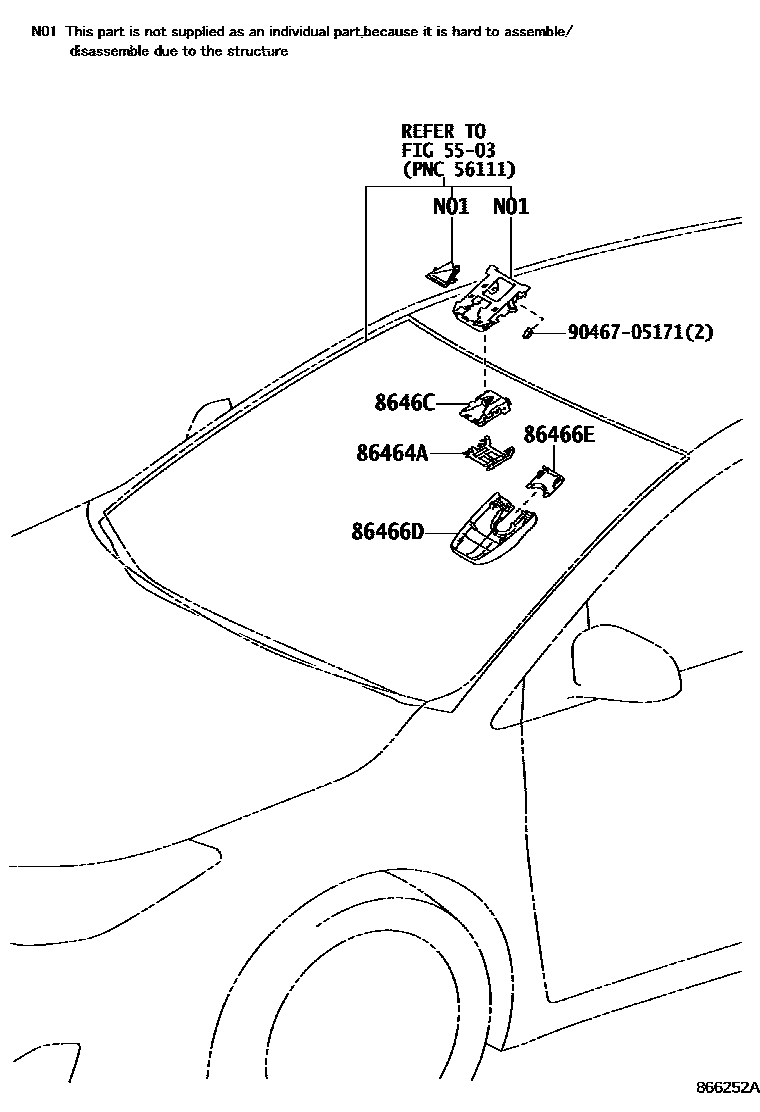

Parts diagram
5503COWL PANEL & WINDSHIELD GLASS
→ Go to FIG 55-03
86464ALATCH, FORWARD RECOGNITION
86466DCOVER, FORWARD RECOGNITION, NO.1
86466ECOVER, FORWARD RECOGNITION, NO.2
8646CCAMERA, FORWARD RECOGNITION
main8646C-07010
main8646C-07030
9046705171
main90467-05171

6 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota AVALON

This section contains 6 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota AVALON. Key components include: COWL PANEL & WINDSHIELD GLASS, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2, CAMERA, FORWARD RECOGNITION.
