Toyota AVALON — PARTIAL ENGINE ASSEMBLY

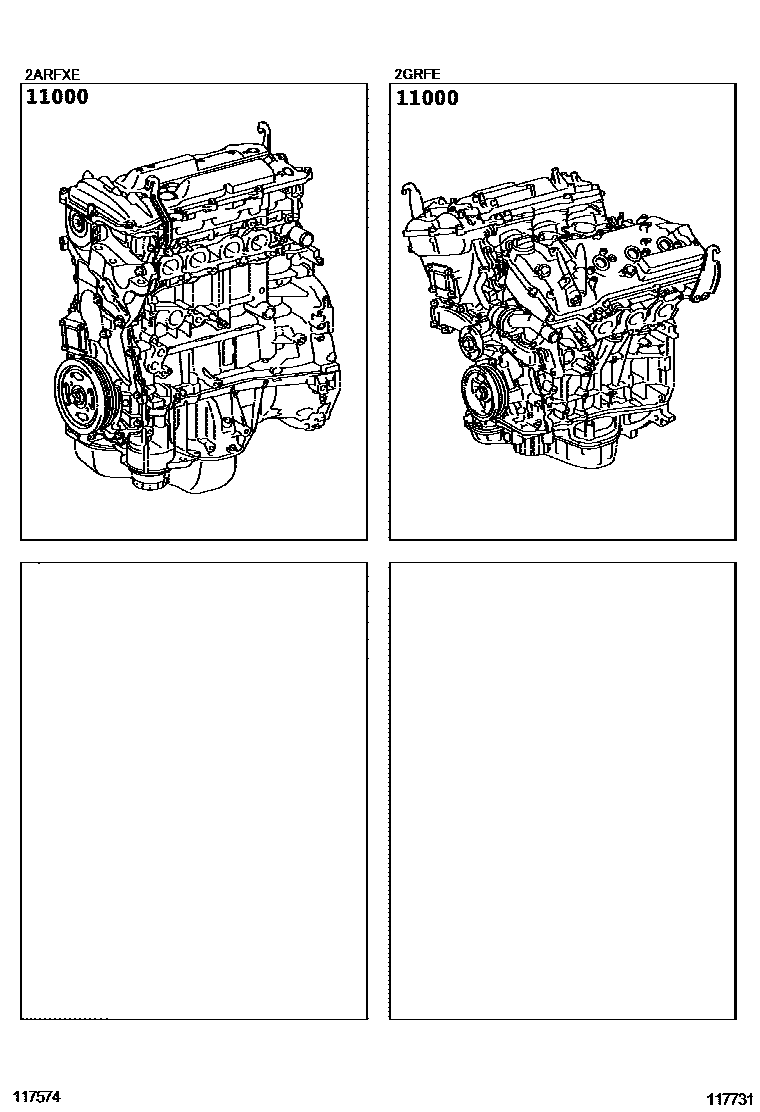

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0P310i201510

main19000-0V160i201310-201510

(L)

main19000-36320i201708

(L)

main19000-0P300i201510

KOREA SPEC

1 parts on this diagram · 1 diagram in section
