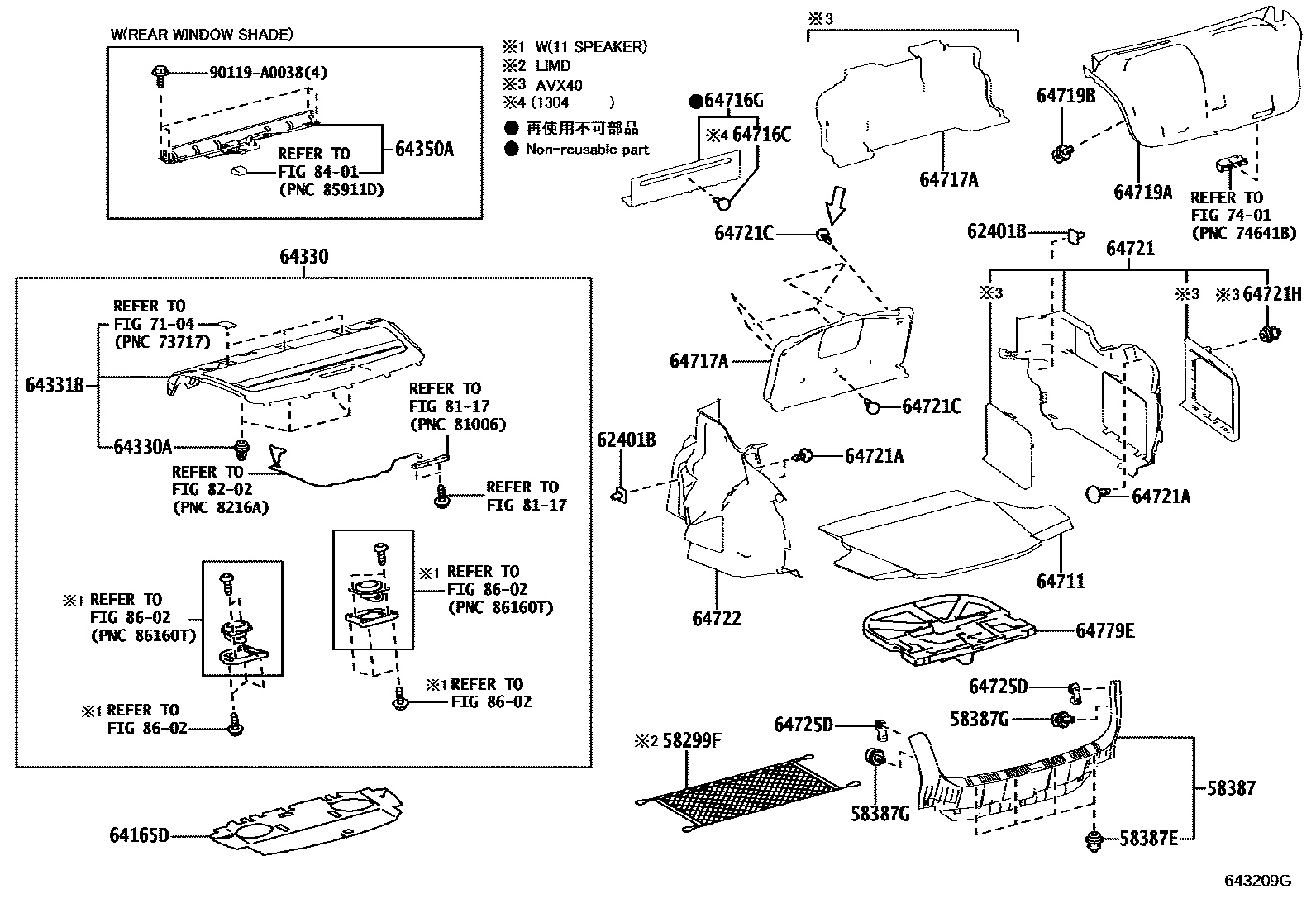

Toyota AVALON — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58299FNET, BAGGAGE HOLDER
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
62401BFASTENER, HOOK
64165DCOVER, UPPER BACK PANEL HOLE, NO.1
SEAT HEATER-WITH(FRONT & REAR SEAT)
64330PANEL ASSY, PACKAGE TRAY TRIM
FLAXEN,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),FLAXEN,TRIM0#; AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0#
AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1#
AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; AUDIO-AVN & 11SPEAKER,BLACK,TRIM2#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX),FLAXEN,TRIM0#; SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER,FLAXEN,TRIM0#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER,LT.GRAY,TRIM1#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER,BLACK,TRIM2#
AUDIO-*DA & 9SPEAKER,FLAXEN,TRIM0#; HAWAII SPEC&AUDIO-*DA & 9SPEAKER,FLAXEN,TRIM0#; USA POSSESSION SPEC&AUDIO-*DA & 9SPEAKER,FLAXEN,TRIM0#
AUDIO-*DA & 9SPEAKER,LT.GRAY,TRIM1#; HAWAII SPEC&AUDIO-*DA & 9SPEAKER,LT.GRAY,TRIM1#; USA POSSESSION SPEC&AUDIO-*DA & 9SPEAKER,LT.GRAY,TRIM1#
AUDIO-*DA & 9SPEAKER,BLACK,TRIM2#; HAWAII SPEC&AUDIO-*DA & 9SPEAKER,BLACK,TRIM2#; USA POSSESSION SPEC&AUDIO-*DA & 9SPEAKER,BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64331BBOARD, PACKAGE TRAY TRIM, FRONT
FLAXEN,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0#
AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1#
AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; AUDIO-AVN & 11SPEAKER,BLACK,TRIM2#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),FLAXEN,TRIM0#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),LT.GRAY,TRIM1#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),BLACK,TRIM2#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX),FLAXEN,TRIM0#; SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER,FLAXEN,TRIM0#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER,LT.GRAY,TRIM1#
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER,BLACK,TRIM2#
64350ASHADE ASSY, REAR WINDOW
KOREA SPEC&SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN(KOREA SPEC) & 11SPEAKER; SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT); SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX); SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER
SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA &11SPEAKER & WITH(EXTENSION BOX); SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN &11SPEAKER
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
BLACK
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK
BLACK
64721CCLIP(LUGGAGE COMPARTMENT)
BLACK
BLACK
64721HCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#
64779ETRAY, SPARE WHEEL COVER
7104SEAT BELT & CHILD RESTRAINT SEAT
7401ARMREST & VISOR
8117CENTER STOP LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8602SPEAKER
90119A0038
main90119-A0038
30 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota AVALON
This section contains 30 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota AVALON. Key components include: NET, BAGGAGE HOLDER, PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), FASTENER, HOOK.
