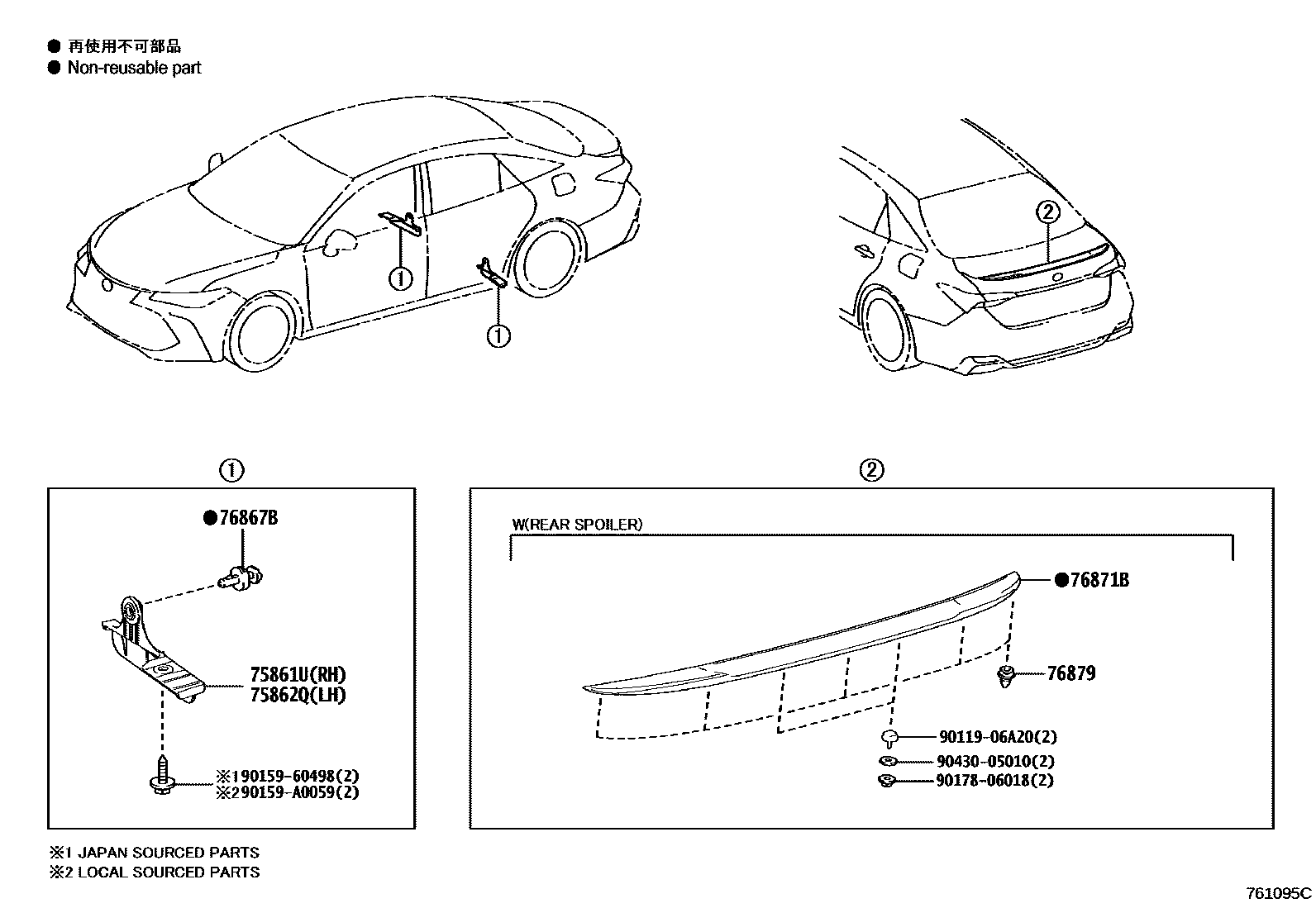

Toyota AVALON — MUDGUARD & SPOILER

75861UCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-06110i201804-202008

TRD PACKAGE

main75861-06110i202008-202107

75862QCOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-06120i201804-202008

TRD PACKAGE

main75862-06120i202008-202107

76867BRETAINER, SIDE MUDGUARD, NO.2

main90467-07222i201804-202008

TRD PACKAGE

main90467-07222i202008-202107

76871BCOVER, REAR SPOILER

main76871-07900i201804-202008

TRD PACKAGE

main76871-07900i202008-202107

76879CLIP, REAR SPOILER, NO.1

main90467-A0005i201804-202008

TRD PACKAGE

main90467-A0005i202008-202107

9011906A20

main90119-06A20

9015960498

main90159-60498

90159A0059

main90159-A0059

9017806018

main90178-06018

9043005010

main90430-05010

10 parts on this diagram · 2 diagrams in section

MUDGUARD & SPOILER for Toyota AVALON

This section contains 15 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota AVALON. Key components include: PIECE, REAR BUMPER, RETAINER, OUTSIDE MOULDING, COVER, ROCKER PANEL MOULDING END, FRONT RH, COVER, ROCKER PANEL MOULDING END, FRONT LH, RETAINER, SIDE MUDGUARD, NO.2.
