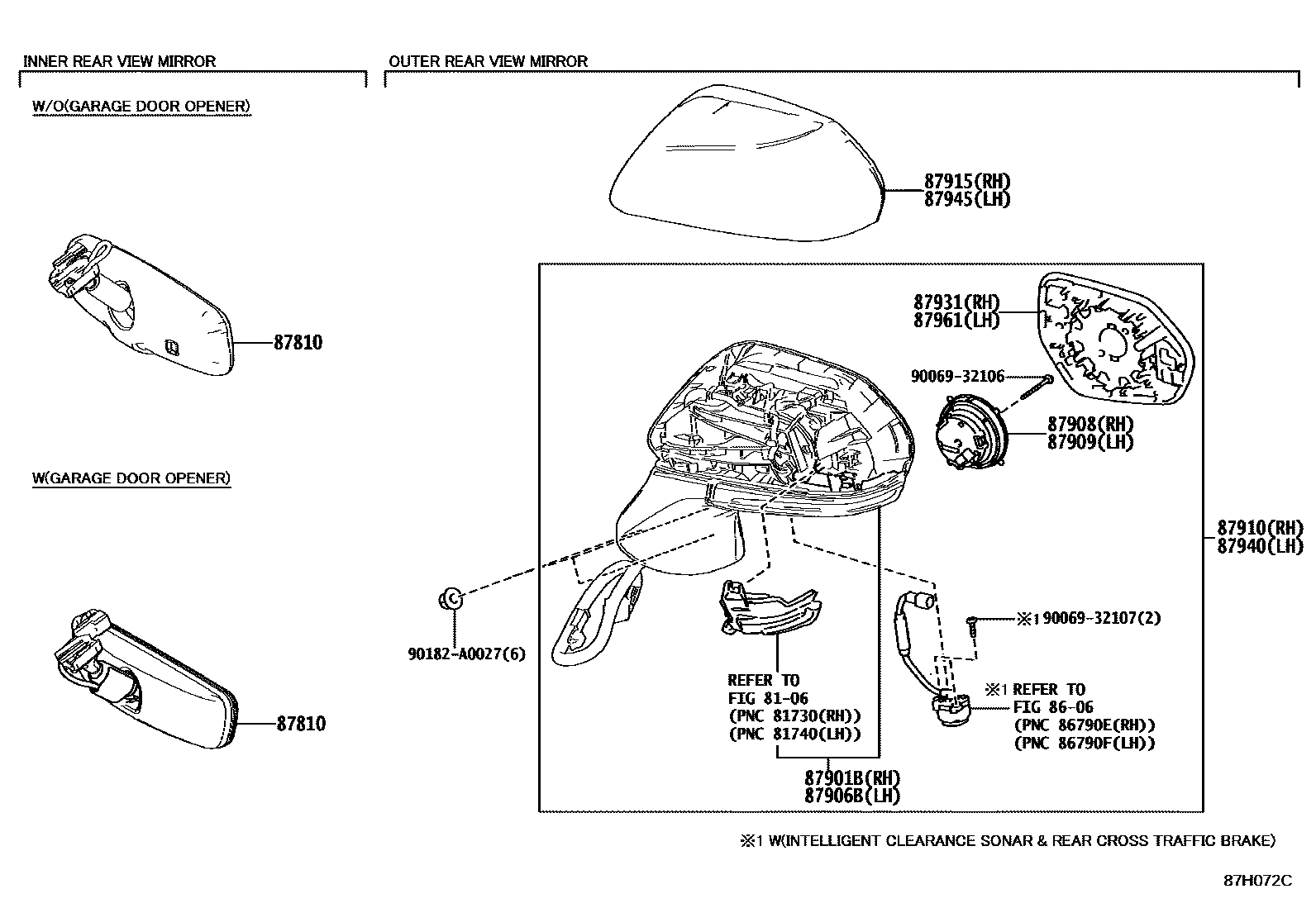

Toyota AVALON — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA)
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
NO PAINT REQ.,KOREA SPEC
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
NO PAINT REQ.,KOREA SPEC
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA)
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
NO PAINT REQ.,KOREA SPEC
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
87915COVER, OUTER MIRROR, RH
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1J9
SLATE GRAY ME.,1K4
ASH GRAY ME.,1K6
ATTITUDE BLACK MC.,218
BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,3T7 ,3U5 ,4X7 ,8W6
RED MC.,3T3
EMOTIONAL RED 2,3U5
GRAPHITE ME.,4X7
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W6
DK. BLUE MC.,8X8
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
NO PAINT REQ.,KOREA SPEC
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
87945COVER, OUTER MIRROR, LH
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1J9
SLATE GRAY ME.,1K4
ASH GRAY ME.,1K6
ATTITUDE BLACK MC.,218
BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,3T7 ,3U5 ,4X7 ,8W6
RED MC.,3T3
EMOTIONAL RED 2,3U5
GRAPHITE ME.,4X7
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W6
DK. BLUE MC.,8X8
87961MIRROR OUTER, LH
9006932106
main90069-32106
9006932107
main90069-32107
90182A0027
main90182-A0027
16 parts on this diagram · 2 diagrams in section
