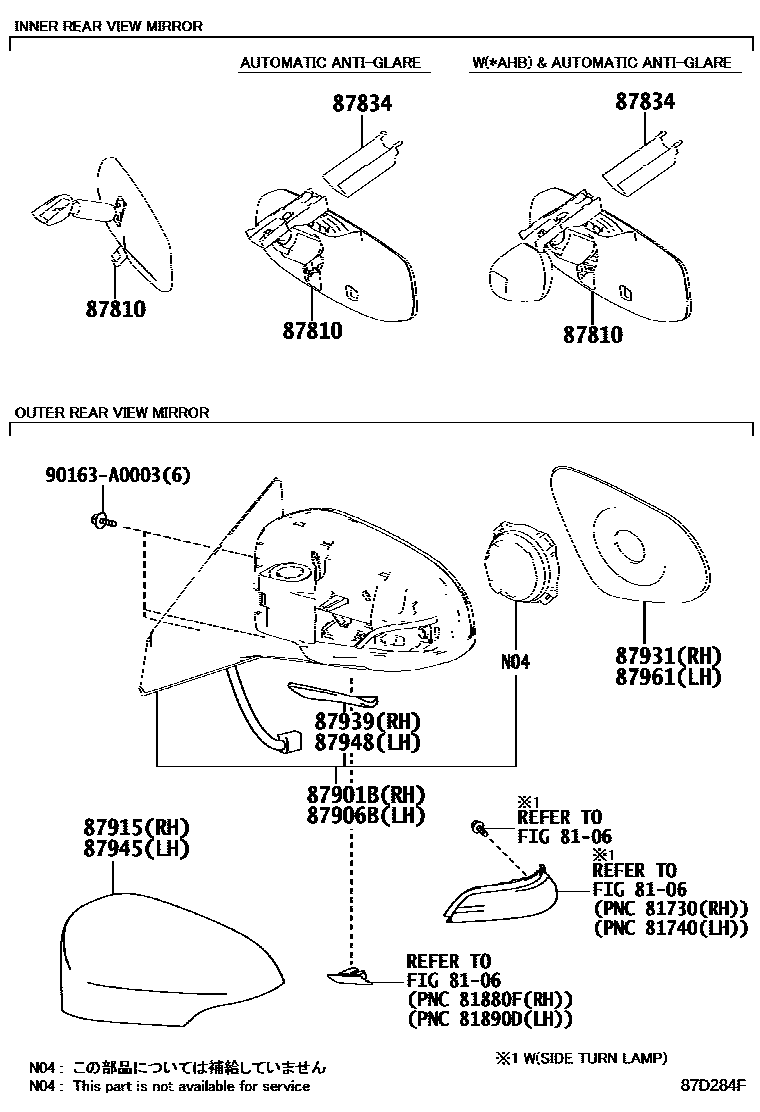

Toyota AVALON — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
BLACK CAR PACKAGE&GARAGE OPENER-WITHOUT
HEADLAMP-DISCHARGE & *AHB
KOREA SPEC&HEADLAMP-LED
CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED & WITH(*LKA)
BLACK CAR PACKAGE&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&GARAGE OPENER-WITHOUT
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,BLIND SPOT MONITOR-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
sub87901-07021
NO PAINT REQ.,KOREA SPEC
NO PAINT REQ.,KOREA SPEC
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,BLIND SPOT MONITOR-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
sub87906-07051
NO PAINT REQ.,KOREA SPEC
NO PAINT REQ.,KOREA SPEC
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
87931OUTER MIRROR, RH
BLIND SPOT MONITOR-WITHOUT
KOREA SPEC
87939COVER, OUTER MIRROR HOLE, RH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
KOREA SPEC
90163A0003
main90163-A0003
12 parts on this diagram · 3 diagrams in section
