Toyota AVALON — MIRROR

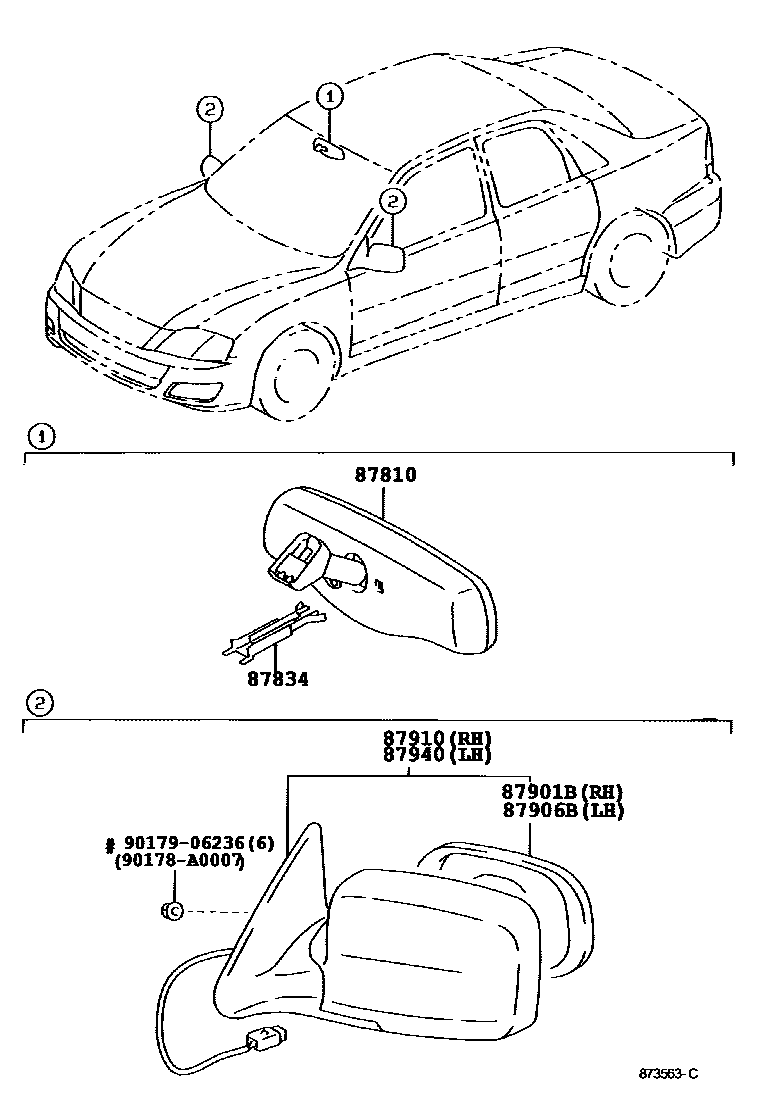

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-AC030i200206
main87810-AC040i199908-200206
main87810-AC050i200206
W(ELECTRIC REMOTE CONTROL INNER MIRROR)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-AC010i199908-200206
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-41060i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)
main87931-AC010i199908-200206
main87931-AC020i200206
W(ELECTRIC RETRACTABLE MIRROR W/HEATER)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-41050i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)
main87961-AC010i200206
main87961-AC020i199908-200206
W(ELECTRIC RETRACTABLE MIRROR W/HEATER)
main87961-AC040i200206
W(ELECTRIC RETRACTABLE MIRROR W/HEATER)
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-41060-A0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SU.WHITE PM,051
main87910-41060-B0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SLVER ME.,1C8
main87910-41060-C0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,202
main87910-41060-D0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK.RED MC.,3N6
main87910-41060-E0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BEIGE M.M.,4Q2
main87910-41060-E1i199908-200004
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BROWN M.M.GR.,4Q3
main87910-41060-G0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GR.GREEN ME.,6M3
main87910-41060-G1i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GREEN MC.,6R1
main87910-41060-J0i199908-200008
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLUE M.M.,8N4
main87910-AC010-A0i199908-200206
SU.WHITE PM,051
main87910-AC010-B0i199908-200206
SLVER ME.,1C8
main87910-AC010-C0i199908-200206
BLACK,202
main87910-AC010-D0i199908-200206
DK.RED MC.,3N6
main87910-AC010-E0i199908-200206
BEIGE M.M.,4Q2
main87910-AC010-E1i199908-200004
BROWN M.M.GR.,4Q3
main87910-AC010-G0i199908-200206
GR.GREEN ME.,6M3
main87910-AC010-G1i199908-200206
GREEN MC.,6R1
main87910-AC010-J0i199908-200008
BLUE M.M.,8N4
main87910-AC011-A0i200206-200501
SU. WHITE PM.,051
sub87910-AC900
main87910-AC011-B0i200206-200501
SILVER ME.,1C8
sub87910-AC900
main87910-AC011-B1i200206-200501
GRAY M.M.,1E3
sub87910-AC900
main87910-AC011-C0i200206-200501
BLACK,202
sub87910-AC900
main87910-AC011-D1i200206-200501
DK RED MC,3Q7
sub87910-AC900
main87910-AC011-E0i200206-200501
BEIGE M. M.,4Q2
sub87910-AC900
main87910-AC011-G0i200206-200501
GR.GREEN ME.,6M3
sub87910-AC900
main87910-AC011-G2i200206-200501
DK. GREEN MC.,6S7
sub87910-AC900
main87910-AC011-J1i200206-200501
DK.BLUE MC.,8Q0
sub87910-AC900
main87910-AC020-A0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SU.WHITE PM,051
main87910-AC020-B0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SLVER ME.,1C8
main87910-AC020-C0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,202
main87910-AC020-D0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK.RED MC.,3N6
main87910-AC020-E0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BEIGE M.M.,4Q2
main87910-AC020-E1i199908-200004
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BROWN M.M.GR.,4Q3
main87910-AC020-G0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GR.GREEN ME.,6M3
main87910-AC020-G1i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GREEN MC.,6R1
main87910-AC020-J0i199908-200008
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLUE M.M.,8N4
main87910-AC021-A0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SU. WHITE PM.,051
sub87910-AC901
main87910-AC021-B0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SILVER ME.,1C8
sub87910-AC901
main87910-AC021-B1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GRAY M.M.,1E3
sub87910-AC901
main87910-AC021-C0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,202
sub87910-AC901
main87910-AC021-D1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK RED MC,3Q7
sub87910-AC901
main87910-AC021-E0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BEIGE M. M.,4Q2
sub87910-AC901
main87910-AC021-G0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GR.GREEN ME.,6M3
sub87910-AC901
main87910-AC021-G2i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK. GREEN MC.,6S7
sub87910-AC901
main87910-AC021-J1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK.BLUE MC.,8Q0
sub87910-AC901
main87910-AC030-A0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SU.WHITE PM,051
main87910-AC030-B0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SLVER ME.,1C8
main87910-AC030-C0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BLACK,202
main87910-AC030-D0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK.RED MC.,3N6
main87910-AC030-E0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BEIGE M.M.,4Q2
main87910-AC030-E1i199908-200004
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BROWN M.M.GR.,4Q3
main87910-AC030-G0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GR.GREEN ME.,6M3
main87910-AC030-G1i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GREEN MC.,6R1
main87910-AC030-J0i199908-200008
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BLUE M.M.,8N4
main87910-AC031-A0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SU. WHITE PM.,051
sub87910-AC902
main87910-AC031-B0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SILVER ME.,1C8
sub87910-AC902
main87910-AC031-B1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GRAY M.M.,1E3
sub87910-AC902
main87910-AC031-C0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BLACK,202
sub87910-AC902
main87910-AC031-D1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK RED MC,3Q7
sub87910-AC902
main87910-AC031-E0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BEIGE M. M.,4Q2
sub87910-AC902
main87910-AC031-G0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GR.GREEN ME.,6M3
sub87910-AC902
main87910-AC031-G2i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK. GREEN MC.,6S7
sub87910-AC902
main87910-AC031-J1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK.BLUE MC.,8Q0
sub87910-AC902
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-41050-A0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SU.WHITE PM,051
main87940-41050-B0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SLVER ME.,1C8
main87940-41050-C0i199908-200206
TAIWAN SPEC & W(FOLDING MIRROR),BLACK,202
main87940-41050-D0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK.RED MC.,3N6
main87940-41050-E0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BEIGE M.M.,4Q2
main87940-41050-E1i199908-200004
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BROWN M.M.GR.,4Q3
main87940-41050-G0i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GR.GREEN ME.,6M3
main87940-41050-G1i199908-200206
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GREEN MC.,6R1
main87940-41050-J0i199908-200008
TAIWAN SPEC & W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLUE M.M.,8N4
main87940-AC010-A0i199908-200206
SU.WHITE PM,051
main87940-AC010-B0i199908-200206
SLVER ME.,1C8
main87940-AC010-C0i199908-200206
BLACK,202
main87940-AC010-D0i199908-200206
DK.RED MC.,3N6
main87940-AC010-E0i199908-200206
BEIGE M.M.,4Q2
main87940-AC010-E1i199908-200004
BROWN M.M.GR.,4Q3
main87940-AC010-G0i199908-200206
GR.GREEN ME.,6M3
main87940-AC010-G1i199908-200206
GREEN MC.,6R1
main87940-AC010-J0i199908-200008
BLUE M.M.,8N4
main87940-AC011-A0i200206-200501
SU. WHITE PM.,051
sub87940-AC900
main87940-AC011-B0i200206-200501
SILVER ME.,1C8
sub87940-AC900
main87940-AC011-B1i200206-200501
GRAY M.M.,1E3
sub87940-AC900
main87940-AC011-C0i200206-200501
BLACK,202
sub87940-AC900
main87940-AC011-D1i200206-200501
DK RED MC,3Q7
sub87940-AC900
main87940-AC011-E0i200206-200501
BEIGE M. M.,4Q2
sub87940-AC900
main87940-AC011-G0i200206-200501
GR.GREEN ME.,6M3
sub87940-AC900
main87940-AC011-G2i200206-200501
DK. GREEN MC.,6S7
sub87940-AC900
main87940-AC011-J1i200206-200501
DK.BLUE MC.,8Q0
sub87940-AC900
main87940-AC020-A0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SU.WHITE PM,051
sub87940-AC901
main87940-AC020-B0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SLVER ME.,1C8
sub87940-AC901
main87940-AC020-C0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,202
sub87940-AC901
main87940-AC020-D0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK.RED MC.,3N6
sub87940-AC901
main87940-AC020-E0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BEIGE M.M.,4Q2
sub87940-AC901
main87940-AC020-E1i199908-200004
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BROWN M.M.GR.,4Q3
sub87940-AC901
main87940-AC020-G0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GR.GREEN ME.,6M3
sub87940-AC901
main87940-AC020-G1i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GREEN MC.,6R1
sub87940-AC901
main87940-AC020-J0i199908-200008
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLUE M.M.,8N4
sub87940-AC901
main87940-AC030-A0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SU.WHITE PM,051
sub87940-AC902
main87940-AC030-B0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SLVER ME.,1C8
sub87940-AC902
main87940-AC030-C0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BLACK,202
sub87940-AC902
main87940-AC030-D0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK.RED MC.,3N6
sub87940-AC902
main87940-AC030-E0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BEIGE M.M.,4Q2
sub87940-AC902
main87940-AC030-E1i199908-200004
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BROWN M.M.GR.,4Q3
sub87940-AC902
main87940-AC030-G0i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GR.GREEN ME.,6M3
sub87940-AC902
main87940-AC030-G1i199908-200206
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GREEN MC.,6R1
sub87940-AC902
main87940-AC030-J0i199908-200008
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BLUE M.M.,8N4
sub87940-AC902
main87940-AC040-A0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SU. WHITE PM.,051
sub87940-AC903
main87940-AC040-B0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),SILVER ME.,1C8
sub87940-AC903
main87940-AC040-B1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GRAY M.M.,1E3
sub87940-AC903
main87940-AC040-C0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BLACK,202
sub87940-AC903
main87940-AC040-D0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK RED MC,3Q7
sub87940-AC903
main87940-AC040-E0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),BEIGE M. M.,4Q2
sub87940-AC903
main87940-AC040-G0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK. GREEN MC.,6S7
sub87940-AC903
main87940-AC040-G1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),GR.GREEN ME.,6M3
sub87940-AC903
main87940-AC040-J0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER),DK.BLUE MC.,8Q0
sub87940-AC903
main87940-AC050-A0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SU. WHITE PM.,051
sub87940-AC904
main87940-AC050-B0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),SILVER ME.,1C8
sub87940-AC904
main87940-AC050-B1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GRAY M.M.,1E3
sub87940-AC904
main87940-AC050-C0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BLACK,202
sub87940-AC904
main87940-AC050-D0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK RED MC,3Q7
sub87940-AC904
main87940-AC050-E0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),BEIGE M. M.,4Q2
sub87940-AC904
main87940-AC050-G0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK. GREEN MC.,6S7
sub87940-AC904
main87940-AC050-G1i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),GR.GREEN ME.,6M3
sub87940-AC904
main87940-AC050-J0i200206-200501
W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & MEMORY ADJUST SYSTEM),DK.BLUE MC.,8Q0
sub87940-AC904
90178A0007
main90178-A0007
9017906236
main90179-06236

8 parts on this diagram · 1 diagram in section

Toyota AVALON MIRROR — Parts Diagram | EPC Data
