Toyota AVALON — MIRROR

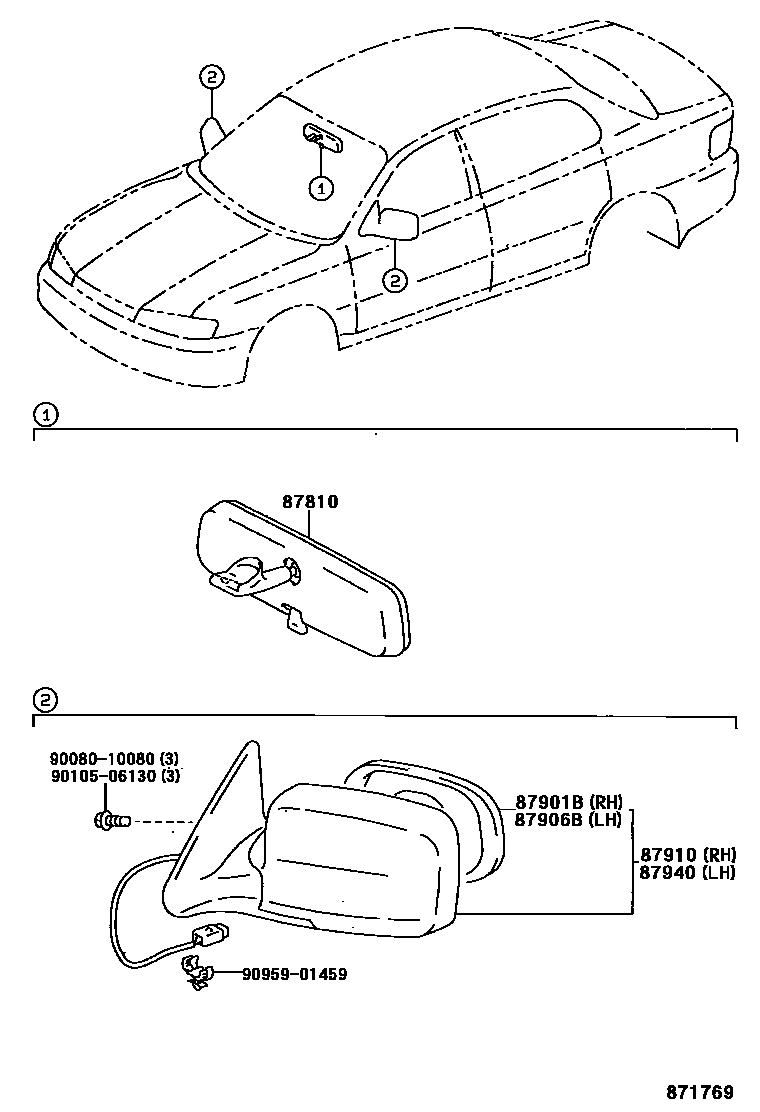

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-AC020i199409
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-33070i199608
TAIWAN SPEC OR KOREA SPEC
main87931-AA010i199409-199709
main87931-AA040i199608-199709
W(HEATER MIRROR)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-33070i199608
TAIWAN SPEC OR KOREA SPEC
main87961-AA010i199409-199608
main87961-AA040i199608-199709
W(HEATER MIRROR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-07010-A0i199409-199607
SUPER WHITE 2,040
sub87910-07900
main87910-07010-A1i199409-199607
SU.WHITE PM,051
sub87910-07900
main87910-07010-B0i199409-199508
BLUISH SILVER ME.,1A0
sub87910-07900
main87910-07010-C0i199409-199607
BLACK,202
sub87910-07900
main87910-07010-D0i199409-199607
MAGENTA MC.,3L3
sub87910-07900
main87910-07010-E0i199409-199607
BEIGE ME.,4M9
sub87910-07900
main87910-07010-G0i199409-199607
GR.GREEN ME.,6M3
sub87910-07900
main87910-07010-H0i199409-199607
DK. TEAL GRREN MC,751
sub87910-07900
main87910-07010-J0i199409-199607
DK.BLUE M.M.,8K0
sub87910-07900
main87910-07010-K1i199409-199607
DARK TAUPE MCOP,927
sub87910-07900
main87910-07011-A0i199608-199709
SUPER WHITE 2,040
sub87910-07901
main87910-07011-A1i199608-199908
SU.WHITE PM,051
sub87910-07901
main87910-07011-B2i199808-199908
SLVER ME.,1C8
sub87910-07901
main87910-07011-C0i199607-199608
BLACK,202
sub87910-07901
main87910-07011-D0i199608-199709
MAGENTA MC.,3L3
sub87910-07901
main87910-07011-D1i199709-199908
DK.RED M.M.,3M6
sub87910-07901
main87910-07011-E0i199608-199709
BEIGE ME.,4M9
sub87910-07901
main87910-07011-E1i199608-199908
LT.BEIGE ME.OP.,4N5
sub87910-07901
main87910-07011-E2i199709-199908
BEIGE M.M.,4N7
sub87910-07901
main87910-07011-F0i199709-199808
GOLD ME.,578
sub87910-07901
main87910-07011-G0i199608-199908
GR.GREEN ME.,6M3
sub87910-07901
main87910-07011-G1i199709-199908
DK.GREEN M.M.,6P2
sub87910-07901
main87910-07011-H0i199607-199608
DK.TEAL GREEN MC.,751
sub87910-07901
main87910-07011-J1i199608-199908
DK.BLUE M.M.,8L3
sub87910-07901
main87910-07011-K1i199607-199608
DK.TAUPE ME.OP.,927
sub87910-07901
main87910-07030-A0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),SUPER WHITE 2,040
sub87910-07902
main87910-07030-A1i199608-199908
SU.WHITE PM,051
sub87910-07902
main87910-07030-B1i199808-199908
W(ELECTRIC HEATER CONTROL MIRROR),SLVER ME.,1C8
sub87910-07902
main87910-07030-C0i199608-199908
W(ELECTRIC HEATER CONTROL MIRROR),BLACK,202
sub87910-07902
main87910-07030-D0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),MAGENTA MC.,3L3
sub87910-07902
main87910-07030-D1i199709-199908
W(ELECTRIC HEATER CONTROL MIRROR),DK.RED M.M.,3M6
sub87910-07902
main87910-07030-E0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),BEIGE ME,4M9
sub87910-07902
main87910-07030-E1i199608-199908
LT. BEIGE ME OP.,4N5
sub87910-07902
main87910-07030-E2i199709-199908
W(ELECTRIC HEATER CONTROL MIRROR),BEIGE M.M.,4N7
sub87910-07902
main87910-07030-F0i199709-199808
GOLD ME.,578
sub87910-07902
main87910-07030-G0i199608-199908
W(ELECTRIC HEATER CONTROL MIRROR),GR GREEN ME,6M3
sub87910-07902
main87910-07030-G1i199709-199908
W(ELECTRIC HEATER CONTROL MIRROR),DK.GREEN M.M.,6P2
sub87910-07902
main87910-07030-H0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),DK. TEAL GREEN MC,751
sub87910-07902
main87910-07030-J0i199608-199908
DK. BLUE M.M.,8L3
sub87910-07902
main87910-07030-K0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),DK. TAUPE ME.OP.,927
sub87910-07902
main87910-41010-A0i199409-199709
TAIWAN SPEC,SUPER WHITE2,040
main87910-41010-A1i199409-199908
TAIWAN SPEC,SU WHITE PM,051
main87910-41010-B0i199409-199508
TAIWAN SPEC,BLUISH SILVER ME,1A0
main87910-41010-B2i199808-199908
TAIWAN SPEC,SLVER ME.,1C8
main87910-41010-C0i199409-199908
TAIWAN SPEC,BLACK,202
main87910-41010-D0i199409-199709
TAIWAN SPEC,MAZENTA MC,3L3
main87910-41010-D1i199709-199908
TAIWAN SPEC,DK.RED M.M.,3M6
main87910-41010-E0i199409-199709
TAIWAN SPEC,BEIGE ME,4M9
main87910-41010-E1i199608-199908
TAIWAN SPEC OR KOREA SPEC,LT.BEIGE ME.OP.,4N5
main87910-41010-E2i199709-199908
TAIWAN SPEC,BEIGE M.M.,4N7
main87910-41010-F0i199709-199808
TAIWAN SPEC,GOLD ME.,578
main87910-41010-G0i199409-199908
TAIWAN SPEC,GR. GREEN ME,6M3
main87910-41010-G1i199709-199908
TAIWAN SPEC,DK.GREEN M.M.,6P2
main87910-41010-H0i199409-199709
TAIWAN SPEC,DK. TEAL GREEN MC,751
main87910-41010-J0i199409-199608
TAIWAN SPEC,DK. BLUE MM,8K0
main87910-41010-J1i199608-199908
TAIWAN SPEC OR KOREA SPEC,DK.BLUE M.M.,8L3
main87910-41010-K0i199409-199709
TAIWAN SPEC,DARK TAUPE MCOP,927
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-07010-A0i199409-199607
SUPER WHITE 2,040
sub87940-07900
main87940-07010-A1i199409-199607
SU.WHITE PM,051
sub87940-07900
main87940-07010-B0i199409-199508
BLUISH SILVER ME.,1A0
sub87940-07900
main87940-07010-C0i199409-199607
BLACK,202
sub87940-07900
main87940-07010-D0i199409-199607
MAGENTA MC.,3L3
sub87940-07900
main87940-07010-E0i199409-199607
BEIGE ME.,4M9
sub87940-07900
main87940-07010-G0i199409-199607
GR.GREEN ME.,6M3
sub87940-07900
main87940-07010-H0i199409-199607
DK.TEAL GREEN MC,751
sub87940-07900
main87940-07010-J0i199409-199607
DK.BLUE M.M.,8K0
sub87940-07900
main87940-07010-K1i199409-199607
DARK TAUPE MCOP,927
sub87940-07900
main87940-07011-A0i199608-199709
SUPER WHITE 2,040
sub87940-07901
main87940-07011-A1i199608-199908
SU.WHITE PM,051
sub87940-07901
main87940-07011-B2i199808-199908
SLVER ME.,1C8
sub87940-07901
main87940-07011-C0i199607-199608
BLACK,202
sub87940-07901
main87940-07011-D0i199608-199709
MAGENTA MC.,3L3
sub87940-07901
main87940-07011-D1i199709-199908
DK.RED M.M.,3M6
sub87940-07901
main87940-07011-E0i199608-199709
BEIGE ME.,4M9
sub87940-07901
main87940-07011-E1i199608-199908
LT.BEIGE ME.OP.,4N5
sub87940-07901
main87940-07011-E2i199709-199908
BEIGE M.M.,4N7
sub87940-07901
main87940-07011-F0i199709-199808
GOLD ME.,578
sub87940-07901
main87940-07011-G0i199607-199608
GR.GREEN ME.,6M3
sub87940-07901
main87940-07011-G1i199709-199908
DK.GREEN M.M.,6P2
sub87940-07901
main87940-07011-H0i199607-199608
DK.TEAL GREEN MC.,751
sub87940-07901
main87940-07011-J1i199608-199908
DK.BLUE M.M.,8L3
sub87940-07901
main87940-07011-K1i199607-199608
DK.TAUPE ME.OP.,927
sub87940-07901
main87940-07030-A0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),SUPER WHITE 2,040
sub87940-07902
main87940-07030-A1i199608-199908
SU.WHITE PM,051
sub87940-07902
main87940-07030-B1i199808-199908
W(ELECTRIC HEATER CONTROL MIRROR),SLVER ME.,1C8
sub87940-07902
main87940-07030-C0i199608-199908
W(ELECTRIC HEATER CONTROL MIRROR),BLACK,202
sub87940-07902
main87940-07030-D0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),MAGENTA MC.,3L3
sub87940-07902
main87940-07030-D1i199709-199908
W(ELECTRIC HEATER CONTROL MIRROR),DK.RED M.M.,3M6
sub87940-07902
main87940-07030-E0i199608-199709
BEIGE ME.,4M9
sub87940-07902
main87940-07030-E1i199608-199908
LT.BEIGE ME OP.,4N5
sub87940-07902
main87940-07030-E2i199709-199908
W(ELECTRIC HEATER CONTROL MIRROR),BEIGE M.M.,4N7
sub87940-07902
main87940-07030-F0i199709-199808
GOLD ME.,578
sub87940-07902
main87940-07030-G0i199608-199908
W(ELECTRIC HEATER CONTROL MIRROR),GR GREEN ME,6M3
sub87940-07902
main87940-07030-G1i199709-199908
W(ELECTRIC HEATER CONTROL MIRROR),DK.GREEN M.M.,6P2
sub87940-07902
main87940-07030-H0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),DK. TEAL GREEN MC.,751
sub87940-07902
main87940-07030-J0i199608-199908
DK. BLUE M.M.,8L3
sub87940-07902
main87940-07030-K0i199608-199709
W(ELECTRIC HEATER CONTROL MIRROR),DK. TAUPE ME.OP.,927
sub87940-07902
main87940-41010-A0i199409-199709
TAIWAN SPEC,SUPER WHITE2,040
main87940-41010-A1i199409-199908
TAIWAN SPEC,SU WHITE PM,051
main87940-41010-B0i199409-199508
TAIWAN SPEC,BLUISH SILVER ME,1A0
main87940-41010-B2i199808-199908
TAIWAN SPEC,SLVER ME.,1C8
main87940-41010-C0i199409-199908
TAIWAN SPEC,BLACK,202
main87940-41010-D0i199409-199709
TAIWAN SPEC,MAZENTA MC,3L3
main87940-41010-D1i199709-199908
TAIWAN SPEC,DK.RED M.M.,3M6
main87940-41010-E0i199409-199709
TAIWAN SPEC,BEIGE ME,4M9
main87940-41010-E1i199608-199908
TAIWAN SPEC OR KOREA SPEC,LT.BEIGE ME.OP.,4N5
main87940-41010-E2i199709-199908
TAIWAN SPEC,BEIGE M.M.,4N7
main87940-41010-F0i199709-199808
TAIWAN SPEC,GOLD ME.,578
main87940-41010-G0i199409-199908
TAIWAN SPEC,GR. GREEN ME,6M3
main87940-41010-G1i199709-199908
TAIWAN SPEC,DK.GREEN M.M.,6P2
main87940-41010-H0i199409-199709
TAIWAN SPEC,DK. TEAL GREEN MC,751
main87940-41010-J0i199409-199608
TAIWAN SPEC,DK. BLUE MM,8K0
main87940-41010-J1i199608-199908
TAIWAN SPEC OR KOREA SPEC,DK.BLUE M.M.,8L3
main87940-41010-K0i199409-199709
TAIWAN SPEC,DARK TAUPE MCOP,927
9008010080
main90080-10080
9010506130
main90105-06130
9095901459
main90959-01459

8 parts on this diagram · 1 diagram in section
