Toyota AVALON — METER

0001 1COMBINATION METER 0002 1HEAD-UP DISPLAY

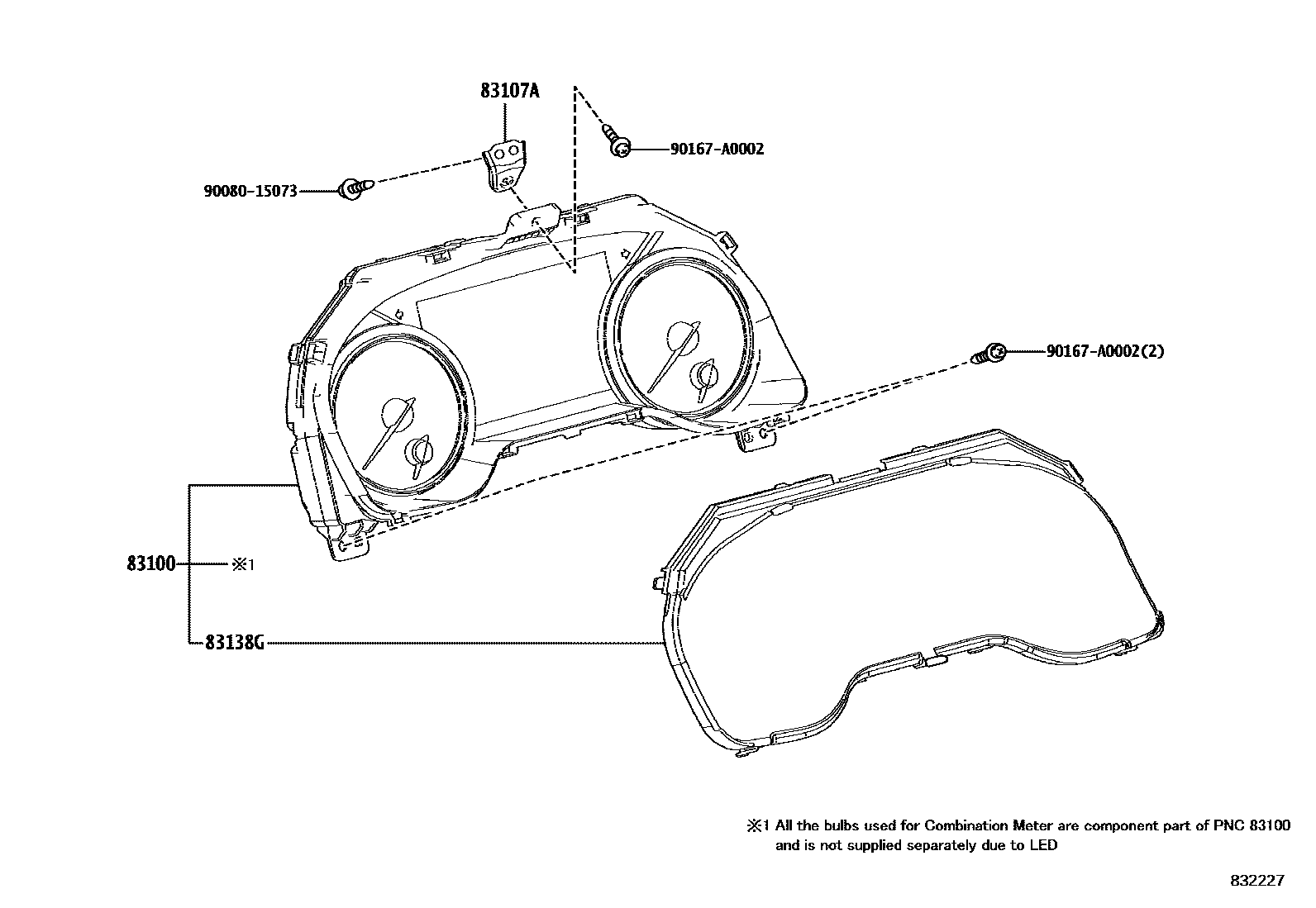

83100METER ASSY, COMBINATION

main83800-07620iGSX50..LIMD,TOU,XSE201804-201908

DENSO

main83800-07621iGSX50..LIMD,TOU,XSE201908-202008

DENSO

main83800-07650iAXXH50201805-201908

DENSO

main83800-07651iAXXH50201908-202008

DENSO

main83800-07680iGSX50..XLE201804-201908

DENSO

main83800-07681iGSX50..XLE201908-202008

DENSO

main83800-07790iGSX50..LIMD,TOU202008-202108

DENSO

main83800-07820iAXXH51202008-202108

DENSO

main83800-07840iGSX50..XLE202008-202108

DENSO

main83800-07850iAXXA55..XLE202008-202107

DENSO

main83800-07860iGSX50..LIMD,TOU202108

DENSO

main83800-07890iAXXH51202108

DENSO

main83800-07A20iGSX50..XLE202108

DENSO

main83800-07630iGSX50..LIMD,XSE201804-201908

DENSO,CANADA SPEC

main83800-07631iGSX50..LIMD,XSE201908-202008

DENSO,CANADA SPEC

main83800-07660iAXXH50..XLE201805-201908

DENSO,KOREA SPEC

main83800-07661iAXXH50..XLE201908-202008

DENSO,KOREA SPEC

main83800-07750supersedes 83800-07790iGSX50..XSE202008-202107

DENSO,TRD PACKAGE

main83800-07760supersedes 83800-07770iAXXA55..LIMD202008-202107

DENSO,CANADA SPEC

main83800-07800supersedes 83800-07790iGSX50..XSE202008-202107

DENSO,CANADA SPEC

main83800-07830iAXXH51..XLE202008-202108

DENSO,KOREA SPEC

main83800-07A00iAXXH51..XLE202108

DENSO,KOREA SPEC

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-33010iAXXH50,GSX50201804-202008

83138GGLASS, COMBINATION METER

main83852-07620iAXXH50,GSX50201804-202008

9008015073

main90080-15073

90167A0002

main90167-A0002

5 parts on this diagram · 2 diagrams in section
