Toyota AVALON — METER

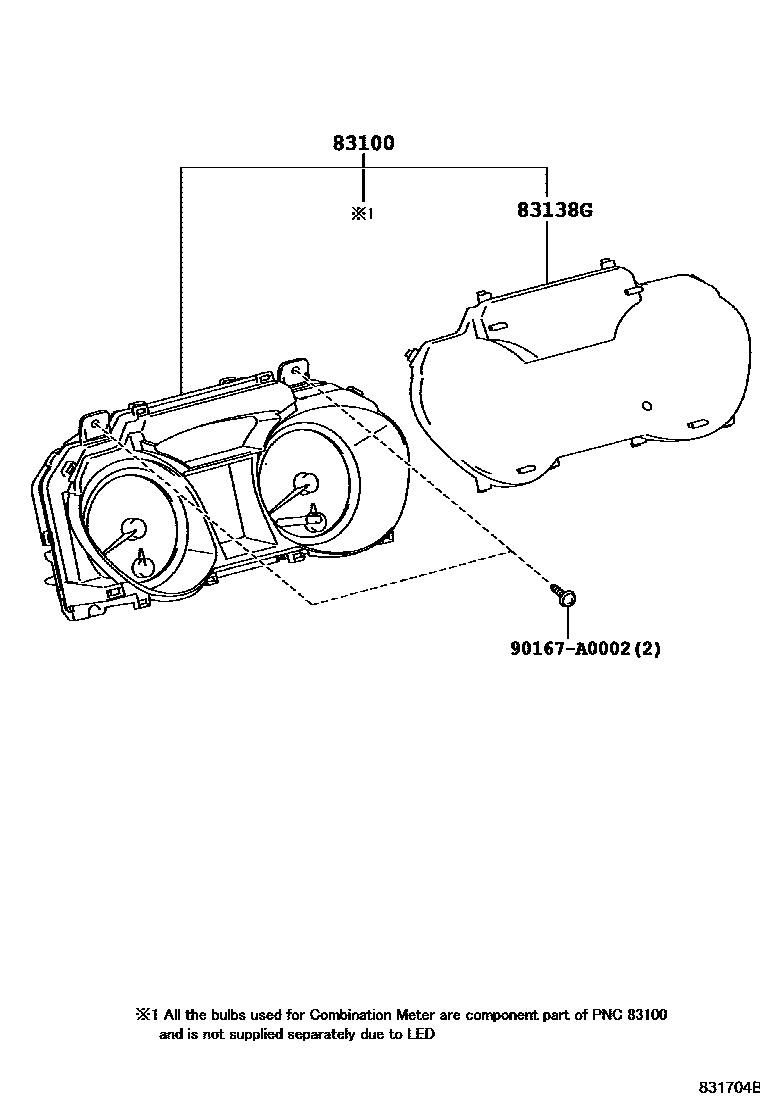

Parts diagram

83100METER ASSY, COMBINATION

main83800-07510i201210-201310

main83800-07511i201310-201510

main83800-07540i201211-201310

main83800-07541i201310-201510

main83800-07560i201510

main83800-07590i201510

83138GGLASS, COMBINATION METER

main83852-07510i201210-201310

main83852-07511i201310-201510

90167A0002

main90167-A0002

3 parts on this diagram · 1 diagram in section
