Toyota AVALON — METER

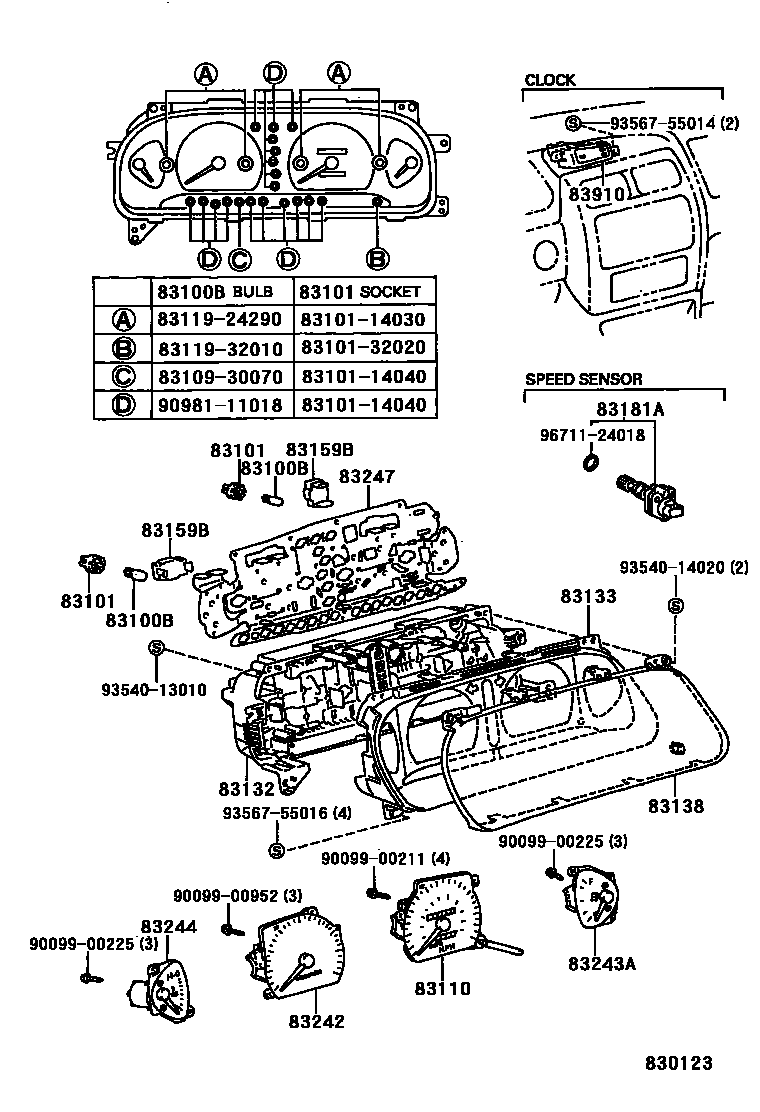

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-30070i199409-199709

14V 2.0W,W/O SOCKET

main83119-07010×4i199709

14V 3.78W

main83119-24290×4i199409-199709

14V 3.78W

main83119-32010i199409-199709

14V 3.0W

main83120-02010i199709

14V 3.0W

main83120-02020i199709

14V 2.0W

main83120-02030×18i199709

14V 1.4W,W(SOCKET)

main90981-11018×20i199409-199709

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4i199409-199709

BULB;14V 3.78W

main83101-14040×20i199409-199709

BULB;14V 1.4W,2.0W

main83101-32020i199409-199709

BULB;14V 3.0W

83110SPEEDOMETER ASSY

main83110-07010i199409-199709

main83110-07011i199709

main83110-07020i199608-199709

TAIWAN SPEC OR KOREA SPEC

main83110-07021i199709

TAIWAN SPEC

83132CASE, COMBINATION METER

main83132-07010i199409-199709

main83132-07011i199709

main83132-07020i199409-199709

main83132-07021i199709

TAIWAN SPEC OR KOREA SPEC

83133PLATE, COMBINATION METER, NO.1

main83133-07010i199409

83138GLASS, SPEEDOMETER

main83138-07010i199409

83159BRELAY ASSY, METER

main83159-22170i199409

83181ASENSOR, SPEEDOMETER

main83181-12040i199409

83242TACHOMETER ASSY, ENGINE

main83242-07010i199409

main83242-07020i199409-199608

TAIWAN SPEC

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-07010i199409

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-07010i199409

83247PLATE, METER CIRCUIT

main83247-07010i199409-199709

main83247-07011i199709

main83247-07020i199409-199709

W(HEADLAMP CLEANER)

main83247-07021i199709

W(HEADLAMP CLEANER)

83910CLOCK ASSY

main83910-AC010i199608

main83910-AC020i199409-199608

W(ANTI-THEFT DEVICE)

main83910-AC030i199409-199608

W(ANTI-THEFT DEVICE & LUXURY PACKAGE)

9009900211

main90099-00211

9009900225

main90099-00225

9009900952

main90099-00952

9354013010

main93540-13010

9354014020

main93540-14020

9356755014

main93567-55014

9356755016

main93567-55016

9671124018

main96711-24018

21 parts on this diagram · 2 diagrams in section
