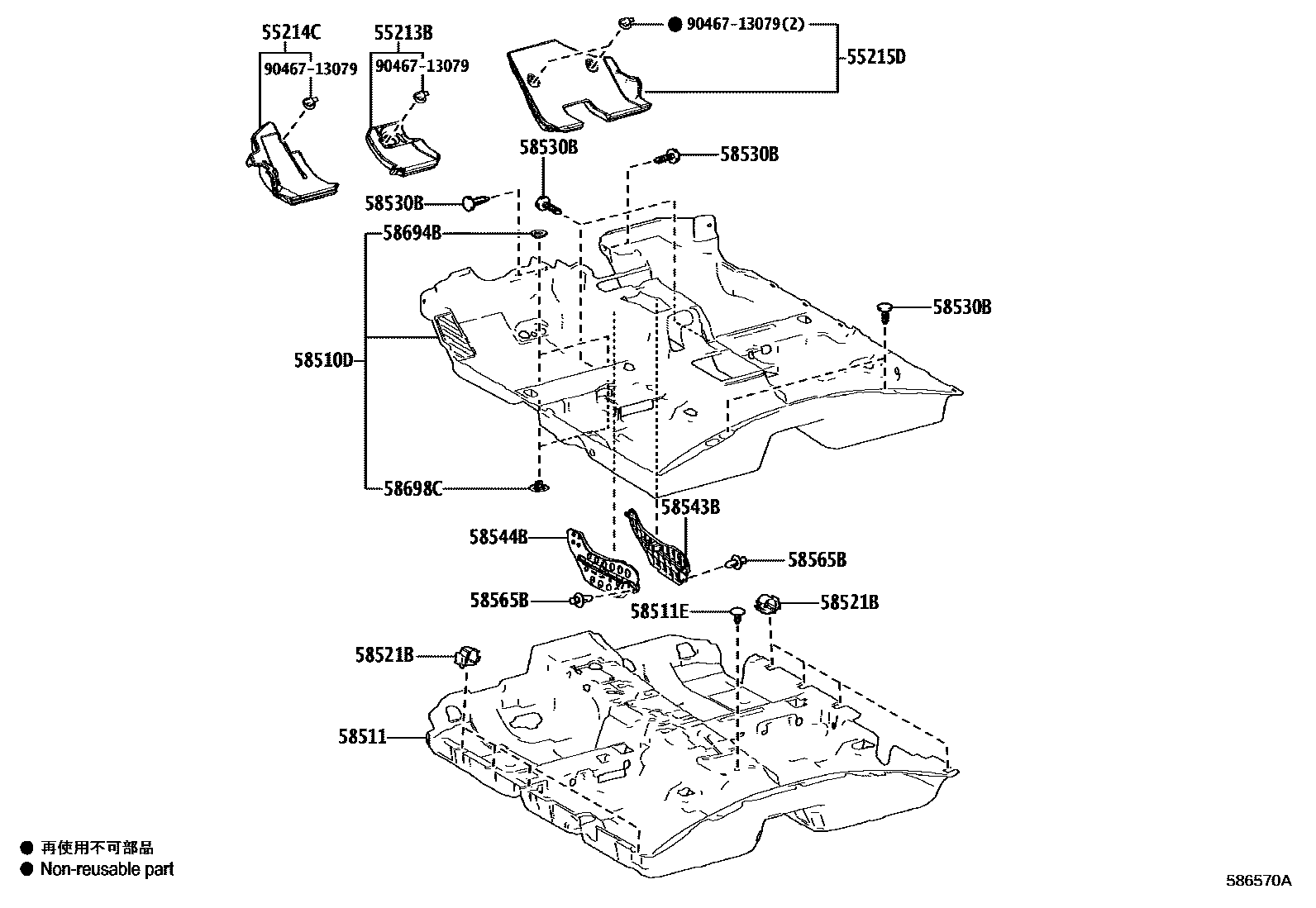

Toyota AVALON — MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
KOREA SPEC,BLACK,TRIM1#,2#,4#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK
BLACK
58543BBRACKET, FLOOR CARPET, RH
58544BBRACKET, FLOOR CARPET, LH
58565BCLIP
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046713079
main90467-13079
14 parts on this diagram · 2 diagrams in section
MAT & CARPET for Toyota AVALON
This section contains 24 genuine Toyota parts for the MAT & CARPET system of the Toyota AVALON. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, COVER, BATTERY SERVICE HOLE, CLIP(FOR BATTERY SERVICE HOLE COVER).
