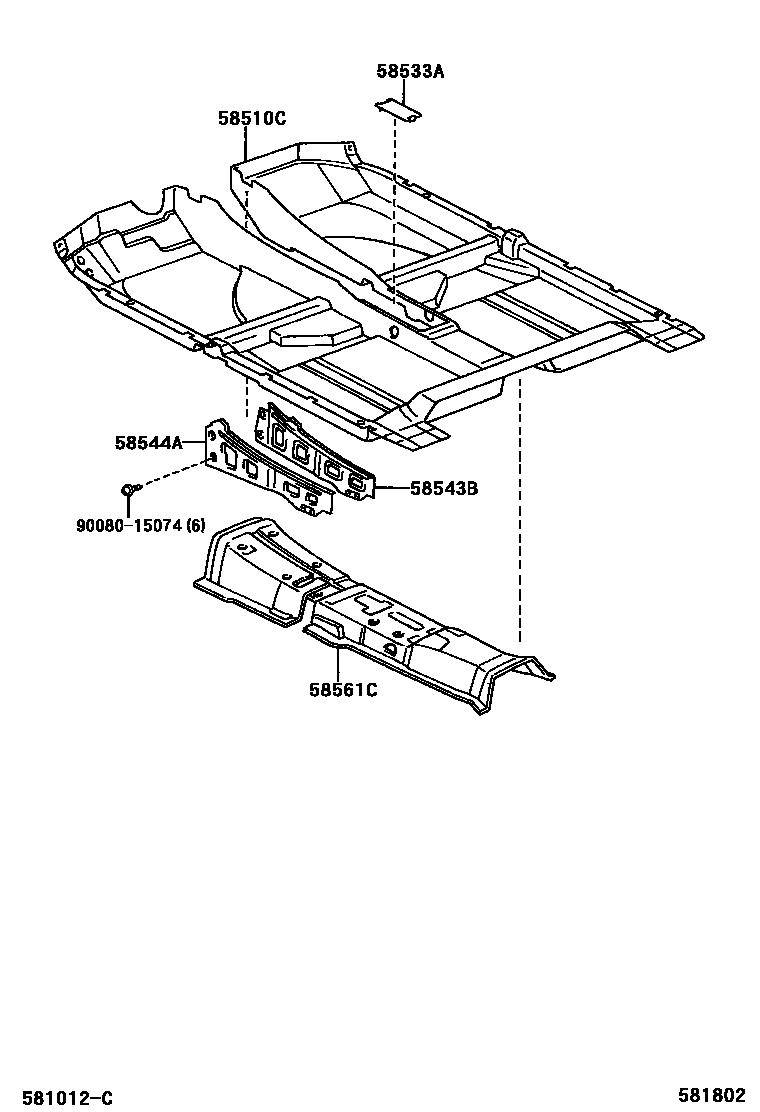

Toyota AVALON — MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
IVORY,TRIM0#
STONE,TRIM1#
FAWN,TRIM4#
IVORY,TRIM0#
STONE,TRIM1#
FAWN,TRIM4#
58533ACOVER, FLOOR CARPET, CENTER RH
IVORY,TRIM0#
STONE,TRIM1#
FAWN,TRIM4#
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
9008015074
main90080-15074
6 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota AVALON
This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota AVALON. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, COVER, FLOOR CARPET, CENTER RH, BRACKET, FLOOR CARPET, RH, BRACKET, FLOOR CARPET, LH, SILENCER, FRONT FLOOR, NO.1.
