Toyota AVALON — MAT & CARPET

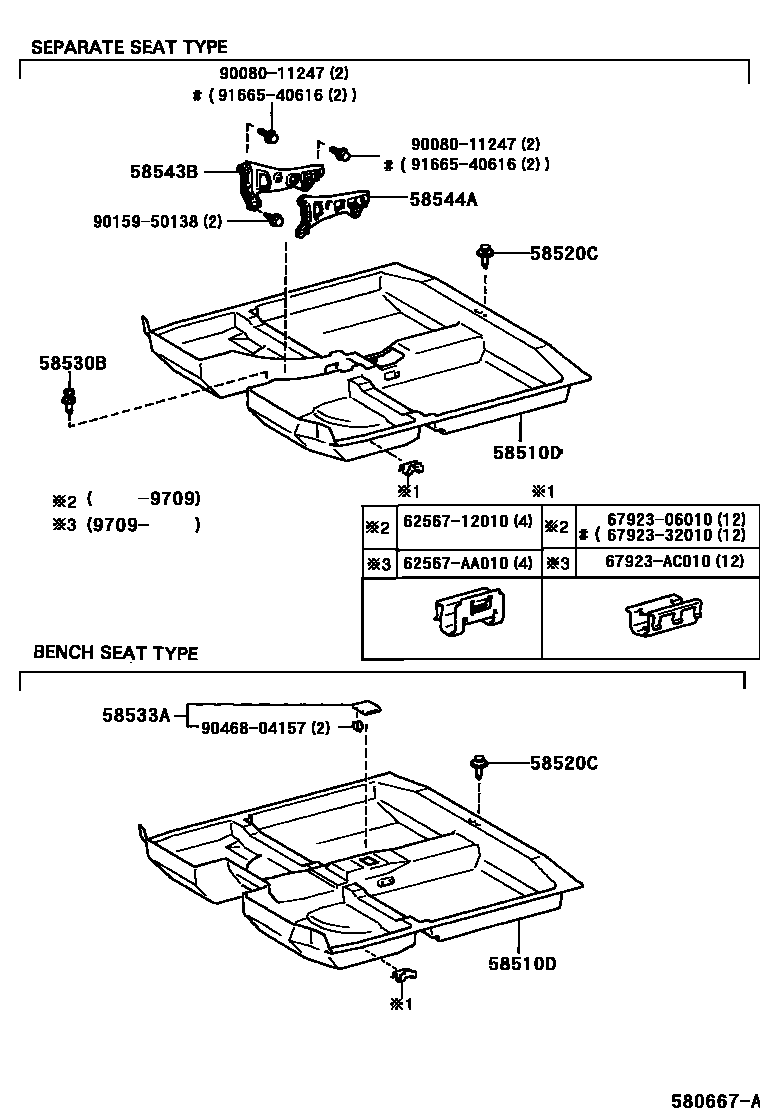

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-AC010-B0i199409-199603
GRAY,TRIM2#
main58510-AC010-E0i199409-199603
QUARTZ,TRIM41
main58510-AC010-E1i199409-199603
ADOBE,TRIM42
main58510-AC011-A0i199709-199908
IVORY,TRIM4#; IVORY,TRIM44
main58510-AC011-B0i199603-199908
BLUISH GRAY,TRIM2#
main58510-AC011-E0i199709-199908
QUARTZ,TRIM4#; QUARTZ,TRIM43
main58510-AC011-E1i199603-199709
ADOBE,TRIM42
main58510-AC020-A0i199709-199908
IVORY,TRIM44
main58510-AC020-B0i199409-199908
GRAY,TRIM2#
main58510-AC020-E0i199608-199908
QUARTZ,TRIM43
main58510-AC020-E1i199409-199709
ADOBE,TRIM42
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06151-C0i199409-199608
BLACK,TRIM2#,41,42
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-06091i199512-199608
main90467-10017-11i199608-199709
BLACK,TRIM2#,42,43
58533ACOVER, FLOOR CARPET, CENTER RH
main58533-AC010-A0i199709-199908
IVORY,TRIM44
main58533-AC010-B1i199409-199908
BLUISH GRAY,TRIM2#
main58533-AC010-E2i199409-199608
QUARTZ,TRIM41
main58533-AC010-E3i199409-199709
ADOBE,TRIM42
58543BBRACKET, FLOOR CARPET, RH
main58543-AC010i199409
58544ABRACKET, FLOOR CARPET, LH
main58544-AC010i199409
6256712010COVER, QUARTER TRIM, REAR LOWER RH
main62567-12010
62567AA010COVER, QUARTER TRIM, REAR LOWER RH
main62567-AA010
6792306010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-06010
6792332010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32010
67923AC010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-AC010
9008011247
main90080-11247
9015950138
main90159-50138
9046804157
main90468-04157
9166540616
main91665-40616

15 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota AVALON

This section contains 15 genuine Toyota parts for the MAT & CARPET system of the Toyota AVALON. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), COVER, FLOOR CARPET, CENTER RH, BRACKET, FLOOR CARPET, RH.
