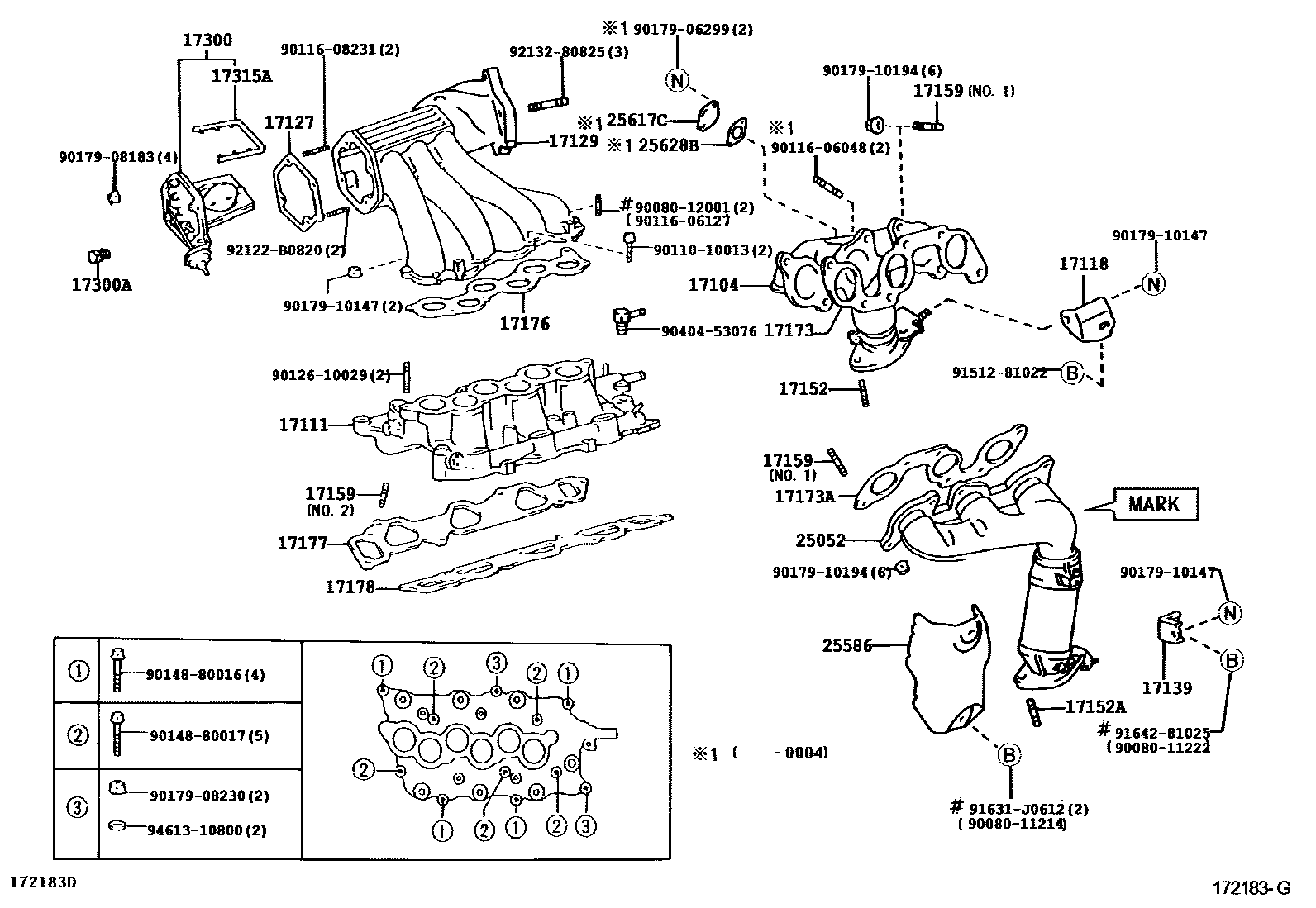

Toyota AVALON — MANIFOLD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17111MANIFOLD, INTAKE
(L)
(J)
(J)
17118STAY, MANIFOLD
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
(L)
(J)
(J)
(J)
17139STAY, MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17300APLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)
17315AGASKET, INTAKE AIR CONTROL VALVE
25052CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2
MARK 20080
MARK 20080
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25617CPLATE, EGR HOLE COVER
25628BGASKET, EGR INLET
9008011214
main90080-11214
9008011222
main90080-11222
9008012001
main90080-12001
9011010013
main90110-10013
9011606048
main90116-06048
9011606127
main90116-06127
9011608231
main90116-08231
9012610029
main90126-10029
9014880016
main90148-80016
9014880017
main90148-80017
9017906299
main90179-06299
9017908183
main90179-08183
9017908230
main90179-08230
9017910147
main90179-10147
9017910194
main90179-10194
9040453076
main90404-53076
9151281022
main91512-81022
91631J0612
main91631-J0612
9164281025
main91642-81025
92122B0820
main92122-B0820
9213280825
main92132-80825
9461310800
main94613-10800
43 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota AVALON
This section contains 43 genuine Toyota parts for the MANIFOLD system of the Toyota AVALON. Key components include: MANIFOLD SUB-ASSY, EXHAUST, RH, MANIFOLD, INTAKE, STAY, MANIFOLD, GASKET, SURGE TANK COVER, TANK, INTAKE AIR SURGE.
