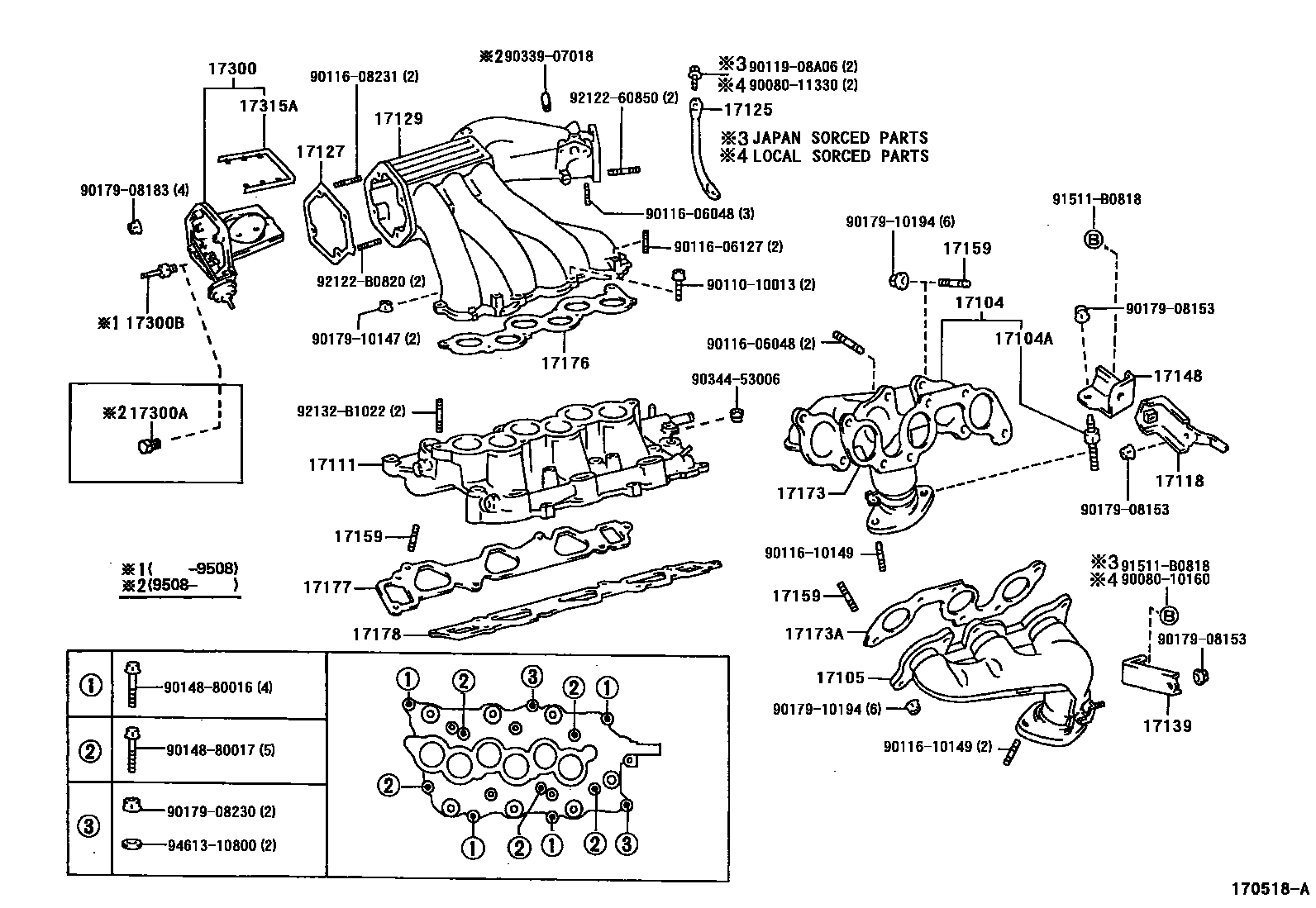

Toyota AVALON — MANIFOLD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
CALIFORNIA SPEC
(L)
(J)
17104ABOLT(FOR FRONT PIPE & STAY)
17105MANIFOLD SUB-ASSY, EXHAUST, LH
(L)
(J)
17118STAY, MANIFOLD
CALIFORNIA SPEC
17125STAY, SURGE TANK, NO.1
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
(L)
(J)
17139STAY, MANIFOLD, NO.2
CALIFORNIA SPEC
17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
INTAKE MANIFOLD
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
(L)
(J)
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17300APLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)
17300BUNION(FOR INTAKE AIR CONTROL VALVE)
17315AGASKET, INTAKE AIR CONTROL VALVE
9008010160
main90080-10160
9008011330
main90080-11330
9011010013
main90110-10013
9011606048
main90116-06048
9011606127
main90116-06127
9011608231
main90116-08231
9011610149
main90116-10149
9011908A06
main90119-08A06
9014880016
main90148-80016
9014880017
main90148-80017
9017908153
main90179-08153
9017908183
main90179-08183
9017908230
main90179-08230
9017910147
main90179-10147
9017910194
main90179-10194
9033907018
main90339-07018
9034453006
main90344-53006
91511B0818
main91511-B0818
9212260850
main92122-60850
92122B0820
main92122-B0820
92132B1022
main92132-B1022
9461310800
main94613-10800
42 parts on this diagram · 2 diagrams in section
MANIFOLD for Toyota AVALON
This section contains 48 genuine Toyota parts for the MANIFOLD system of the Toyota AVALON. Key components include: MANIFOLD SUB-ASSY, EXHAUST, RH, BOLT(FOR FRONT PIPE & STAY), MANIFOLD SUB-ASSY, EXHAUST, LH, MANIFOLD, INTAKE, STAY, MANIFOLD.
