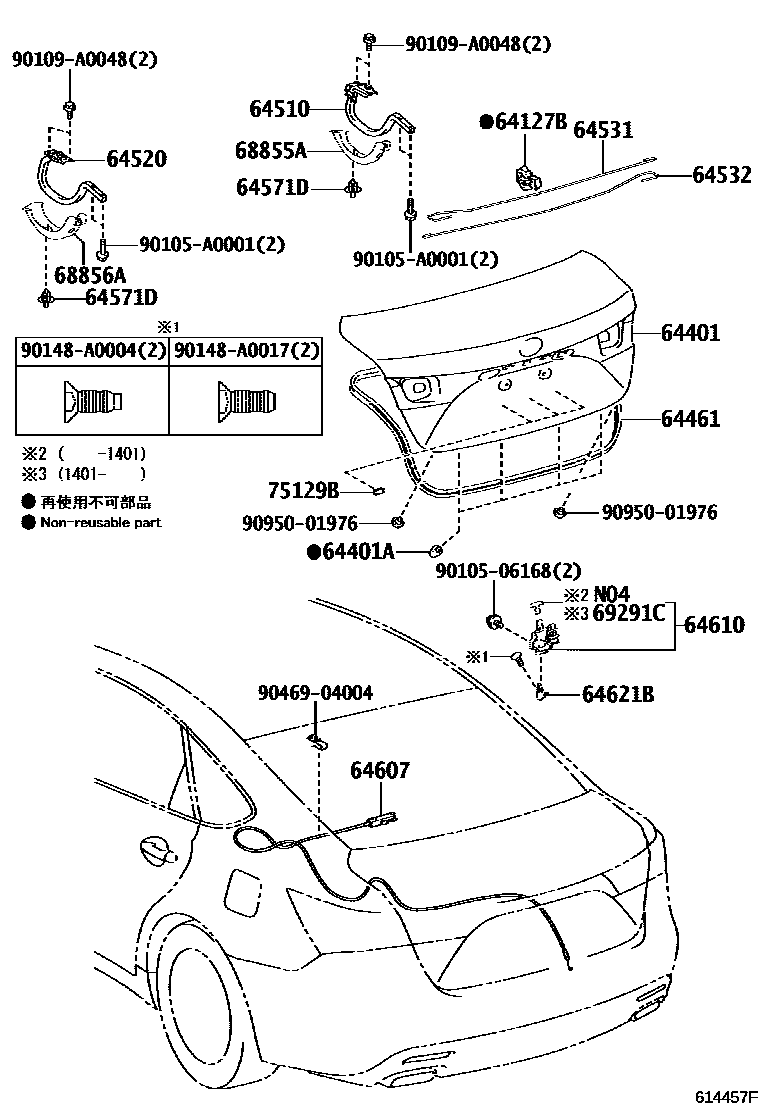

Toyota AVALON — LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-06061iAVX40,GSX40201210-201408

main64127-06110iAVX40,GSX40201409-201510

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-07150iAVX40,GSX40201210-201510

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90084-54011iAVX40,GSX40201301-201510

main90541-A0001iAVX40,GSX40201210-201301

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-07050iAVX40,GSX40201210-201510

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-07010iAVX40,GSX40201210-201301

sub64510-07011

main64510-07011iAVX40,GSX40201302-201510

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-07010iAVX40,GSX40201210-201301

sub64520-07011

main64520-07011iAVX40,GSX40201302-201510

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-07021iAVX40,GSX40201210-201510

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-07020iAVX40,GSX40201210-201510

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-A0002-C0iAVX40,GSX40201212-201307

BLACK

sub90467-A0002

main90467-A0016-C0iAVX40,GSX40201210-201706

BLACK

main90467-A0016-C3iAVX40,GSX40201706

BLACK

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-07010iAVX40,GSX40201210-201510

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-06040iAVX40,GSX40201210-201312

sub64600-06041

main64600-06041iAVX40,GSX40201401-201510

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06030iAVX40,GSX40201210-201510

68855APROTECTOR, BACK DOOR HINGE, UPPER RH

main82817-07490iGSX40201210-201212

sub82817-07491

sub90467-A0002

main82817-07491iAVX40,GSX40201212-201306

sub82817-07492

main82817-07492iAVX40,GSX40201307-201510

68856APROTECTOR, BACK DOOR HINGE, UPPER LH

main82818-07010iGSX40201210-201212

sub82818-07011

sub90467-A0002

main82818-07011iAVX40,GSX40201212-201306

sub82818-07012

main82818-07012iAVX40,GSX40201307-201510

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-33020iAVX40,GSX40201401-201510

75129BCUSHION, REAR LICENCE PLATE

main75129-02020iAVX40,GSX40201210-201510

7 X 12 X 25

main75129-AC010iAVX40,GSX40201210-201510

5 X 12 X 25

9010506168

main90105-06168

90105A0001

main90105-A0001

90109A0048

main90109-A0048

90148A0004

main90148-A0004

90148A0017

main90148-A0017

9046904004

main90469-04004

9095001976

main90950-01976

23 parts on this diagram · 1 diagram in section
