Toyota AVALON — LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-07020i201804-202008

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-06160i201804-202008

69503CYLINDER SET, LOCK

main69005-07050i201804-202008

69503AKEY, BLANK

main69515-06050i201804-202008

MASTER KEY,W(*68)

main69515-16110i202105-202107

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-06040×2i201804-202008

MASTER KEY,W(*68)

main69515-0A010×2i202111

MASTER KEY,W(*68)

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-07010×2i201804-201908

main89072-07020×2i201805-201908

main89072-07070×2i201908-202008

main89072-07080×2i201908-202008

main89072-07030×2i201805-201908

KOREA SPEC

main89072-07090×2i201908-202008

KOREA SPEC

89745ABATTERY, TRANSMITTER

main89745-45010i201804-202008

CR2032

main89745-50020i202008-202107

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-07010i201804-201908

main8990H-07020i201805-201908

main8990H-07070i201908-202008

main8990H-07080i201908-202008

main8990H-07030i201805-201908

KOREA SPEC

main8990H-07090i202008

KOREA SPEC

8 parts on this diagram · 1 diagram in section

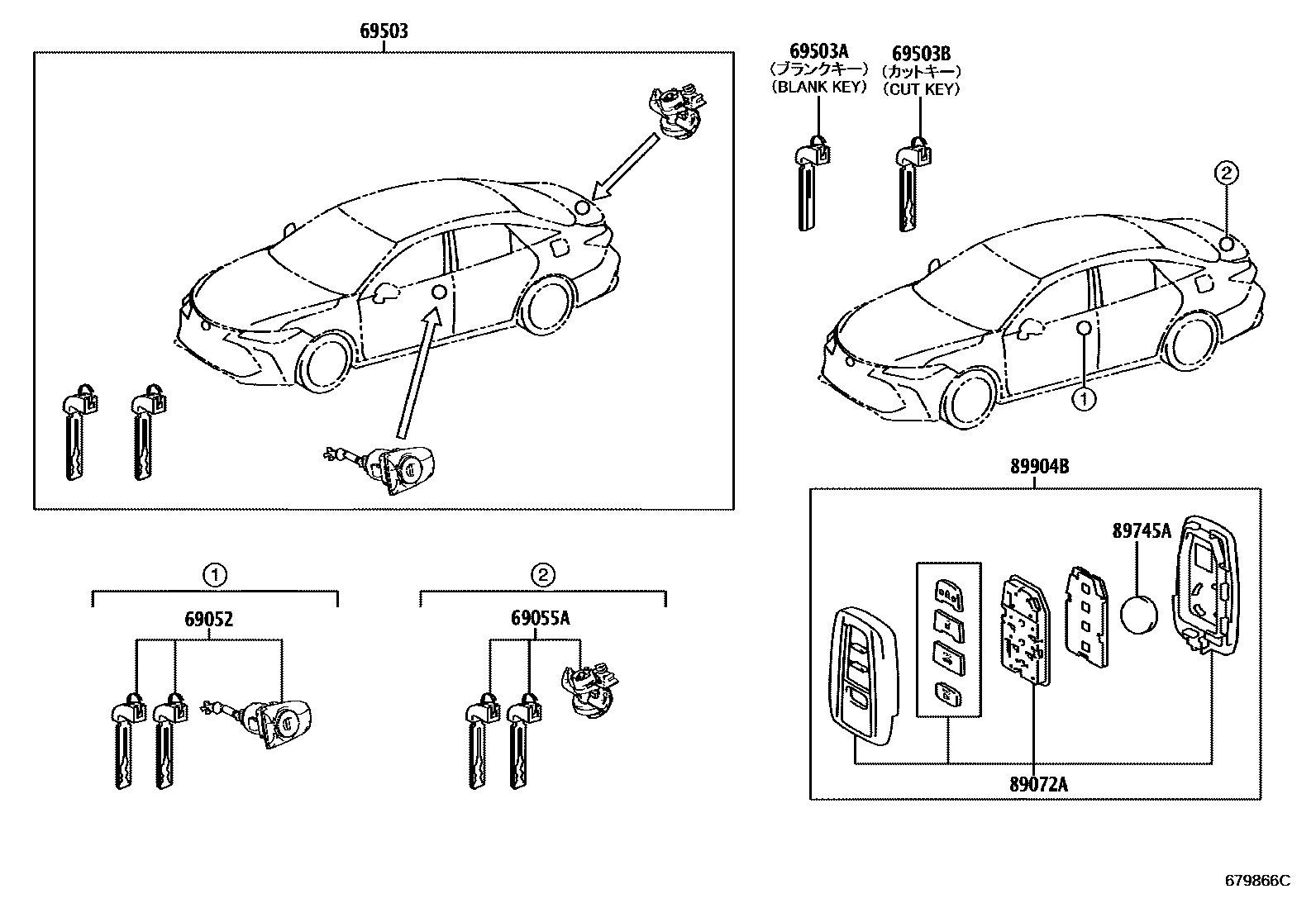

LOCK CYLINDER SET for Toyota AVALON

This section contains 8 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota AVALON. Key components include: CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT.
