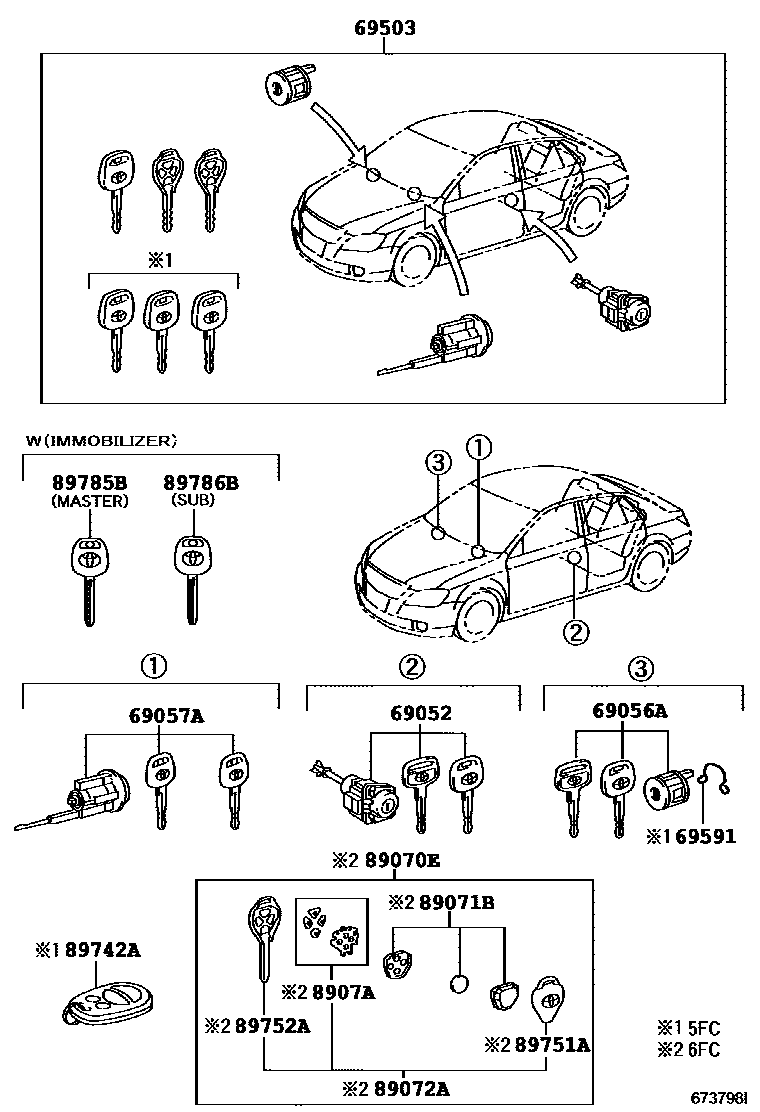

Toyota AVALON — LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-07030i200707-201003

main69052-AC010i200501-200707

main69052-AC020i201003

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-07030i201003

main69056-AC010i201003

main69056-AE010i200501-200707

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-07040i200707

main69057-AA010i200501-200707

69503CYLINDER SET, LOCK

main69005-07010i200707

main69005-07020i201003

main69005-07030i201003

main69005-AC010i200501-200707

main69005-AC020i200707-201003

69591RING, REAR SEAT ARMREST DOOR KEY CYLINDER

main69591-41010i200501-200707

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-02270i200802

main89070-07080i200707-200802

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-02070×2i200802-201003

main89071-07030×2i200707-200802

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-02100i200707

8907ASWITCH SET, TRANSMITTER

main8907A-33010×2i200707-201003

89742ATRANSMITTER, DOOR CONTROL

main89742-AA040×2i200501-200707

89751ACOVER, TRANSMITTER HOUSING

main89751-28070×2i200707-201003

89752ACASE, TRANSMITTER HOUSING

main89752-02070i200707

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020i200501-200707

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020i200707

BLANK KEY

14 parts on this diagram · 3 diagrams in section

LOCK CYLINDER SET for Toyota AVALON

This section contains 17 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota AVALON. Key components include: CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK, KEY, BLANK.
