Toyota AVALON — LOCK CYLINDER SET

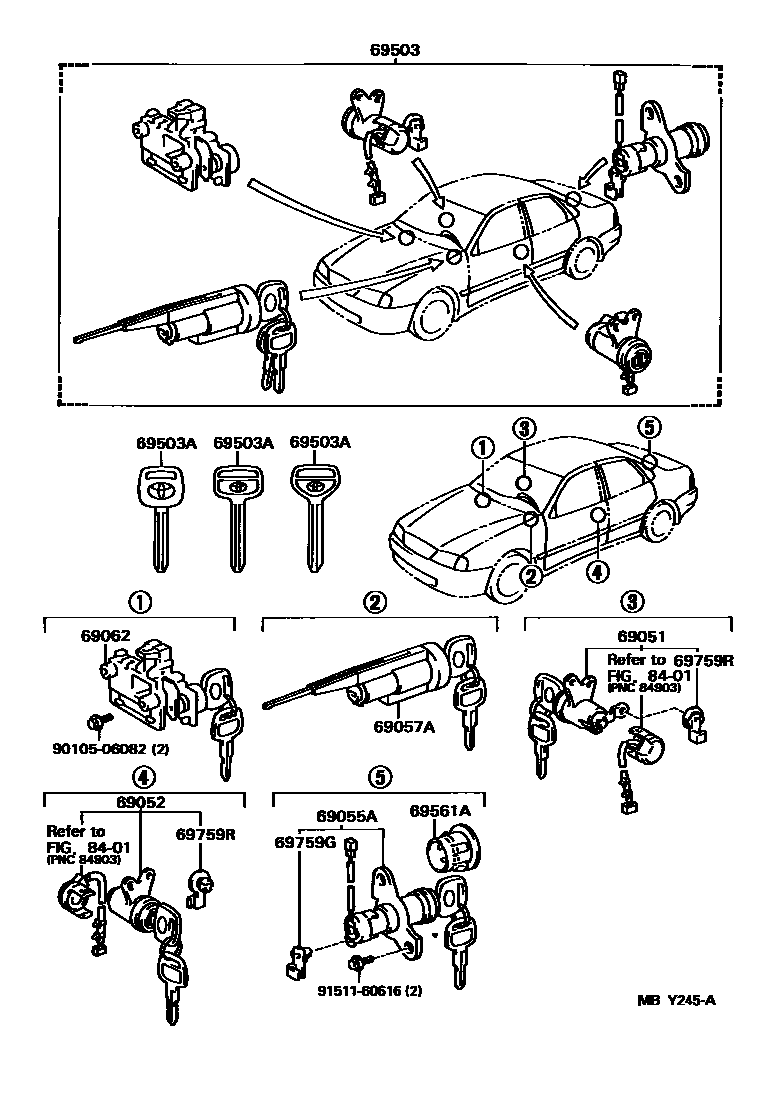

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-41010i199409
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-41010i199608
main69052-41020i199409-199608
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
main69055-41010i199409-199608
main69055-41020i199608-199709
W(ENGINE IMMOBILIZER SYSTEM)
main69055-41030i199409-199608
PLATINUM EDITION & W(ENGINE IMMOBILIZER SYSTEM)
main69055-41060i199709
main69055-41070i199709
W(ENGINE IMMOBILIZER SYSTEM)
main69055-41080i199709
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-41010i199409-199709
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-33010i199409
69503CYLINDER SET, LOCK
main69005-41010i199409-199508
main69005-41011i199508-199608
main69005-41020i199409-199508
W(LUGGAGE DOOR LOCK SWITCH)
main69005-41021i199508-199709
W(LUGGAGE DOOR LOCK SWITCH)
main69005-41030i199409-199508
main69005-41031i199508-199608
main69005-41040i199409-199508
W(LUGGAGE DOOR LOCK SWITCH)
main69005-41041i199508-199608
W(LUGGAGE DOOR LOCK SWITCH)
main69005-41050i199409-199508
W(AVTI-THEFT DEVICE & LUGGAGEDOOR LOCK SWITCH)
main69005-41051i199508-199608
W(AVTI-THEFT DEVICE & LUGGAGEDOOR LOCK SWITCH)
main69005-41052i199608-199709
main69005-41080i199709
69503AKEY, BLANK
main90999-00185i199409-199608
MASTER KEY,W(*68)
main90999-00186i199608
MASTER KEY
main90999-00188i199409-199709
SUB KEY
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
main69561-41010-A0i199409-199709
WHITE,040 ,051
main69561-41010-C0i199508-199608
BLACK,202 ,3L3 ,4M9 ,6M3 ,751 ,8K0 ,927
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
main69759-20080i199709
main69759-24080i199409-199709
69759RSNAP, FRONT DOOR LOCK CYLINDER
main69759-22080i199409
ORANGE
main69759-22090i199409
PINK
