Toyota AVALON — INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81231CCLIP, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
LI, ADOBE,TRIM42
IVORY,TRIM44
W(MOON ROOF),IVORY,TRIM44
IVORY,TRIM4#
W(MOON ROOF),IVORY,TRIM4#
W(MOON ROOF),BLUISH GRAY,TRIM2#
BLUISH GRAY,TRIM2#
W(SUN ROOF),QUARTZ,TRIM41
QUARTZ,TRIM41
QUARTZ,TRIM43
W(MOON ROOF),QUARTZ,TRIM43
LI, ADOBE,TRIM42
W(MOON ROOF),LI, ADOBE,TRIM42
IVORY,TRIM4#
W(MOON ROOF),IVORY,TRIM4#
W(MOON ROOF),BLUISH GRAY,TRIM2#
W(MOON ROOF),QUARTZ,TRIM4#,43
W(MOON ROOF),QUARTZ,TRIM43
81240BBULB, ROOM LAMP, NO.1
12V 8W,W(MOON ROOF)
12V 8W
12V 8W,W(MOON ROOF)
12V 8W
81241LENS, ROOM LAMP, NO.1
W(MOON ROOF)
W(MOON ROOF),II STANLEY
W(MOON ROOF)
W(MOON ROOF),DONNELLY
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM4#,NO.1
IVORY,TRIM44,NO.1
BLUISH GRAY,TRIM2#,NO.1
QUARTZ,TRIM4#,NO.1
QUARTZ,TRIM41,NO.1
QUARTZ,TRIM43,NO.1
LI, ADOBE,TRIM42,NO.1
IVORY,TRIM4#,NO.2
IVORY,TRIM44,NO.2
BLUISH GRAY,TRIM2#,NO.2
QUARTZ,TRIM41,NO.2
QUARTZ,TRIM4#,NO.2
QUARTZ,TRIM43,NO.2
LI, ADOBE,TRIM42,NO.2
81250BBULB, ROOM LAMP, NO.2
12V 8W
81251BLENS, REAR ROOM LAMP, RH
IVORY,TRIM44
IVORY,TRIM4#
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM41
QUARTZ,TRIM4#
ADOBE,TRIM42
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM4#
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM4#
QUARTZ,TRIM43
QUARTZ,TRIM41
LI, ADOBE,TRIM42
W(MOON ROOF),BLUISH GRAY,TRIM2#
BLUISH GRAY,TRIM2#
W(MOON ROOF),QUARTZ,TRIM43
QUARTZ,TRIM41
W(MOON ROOF),QUARTZ,TRIM41
QUARTZ,TRIM43
W(MOON ROOF),LI, ADOBE,TRIM42
LI, ADOBE,TRIM42
W(MOON ROOF),IVORY,TRIM2#,44
W(MOON ROOF),BLUISH GRAY,TRIM21,43
W(MOON ROOF),QUARTZ,TRIM43,44
W(MOON ROOF),QUARTZ,TRIM4#,43,44
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 8W,W(MOON ROOF),NO.1
12V 8W,NO.1
12V 8W,NO.2
81261LENS AND COVER, MAP LAMP
W(MOON ROOF)
W(MOON ROOF),BLUISH GRAY,TRIM2#
W(MOON ROOF),QUARTZ,TRIM43
W(SUN ROOF),QUARTZ,TRIM41
W(MOON ROOF),ADOBE,TRIM42
81291ALENS, REAR ROOM LAMP, LH
IVORY,TRIM4#
IVORY,TRIM44
BLUISH GRAY,TRIM2#
QUARTZ,TRIM4#
QUARTZ,TRIM41
QUARTZ,TRIM43
ADOBE,TRIM42
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
ICHIKOH
KEELER BRASS
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3W,ICHIKOH LAMP
12V 3W,KEELER BRASS LAMP
81331LENS, LUGGAGE COMPARTMENT LAMP
KEELER BRASS
ICHIKOU
81331BCLIP, LUGGAGE LAMP
81340LAMP ASSY, VANITY
BLUISH GRAY,TRIM2#
TAIWAN SPEC,BLUISH GRAY,TRIM2#
TAIWAN SPEC,QUARTZ,TRIM43
QUARTZ,TRIM41
QUARTZ,TRIM43
LI, ADOBE,TRIM42
IVORY,TRIM44
IVORY,TRIM4#
BLUISH GRAY,TRIM2#
QUARTZ,TRIM43
QUARTZ,TRIM4#
ADOBE,TRIM42
81340BBULB (FOR VANITY LAMP)
81351LENS, SURGICAL LAMP
81870DLAMP ASSY, KEY CYLINDER
W(ENGINE IMMOBILIZER SYSTEM)
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81870FCAP, KEY CYLINDER LAMP BULB
81871LENS, KEY ILLUMINATION
81872HOUSING, KEY CYLINDER LAMP
8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24420
9008416002
main90084-16002
9011906198
main90119-06198
9016745012
main90167-45012
9321915012
main93219-15012
9331514010
main93315-14010
9354054012
main93540-54012

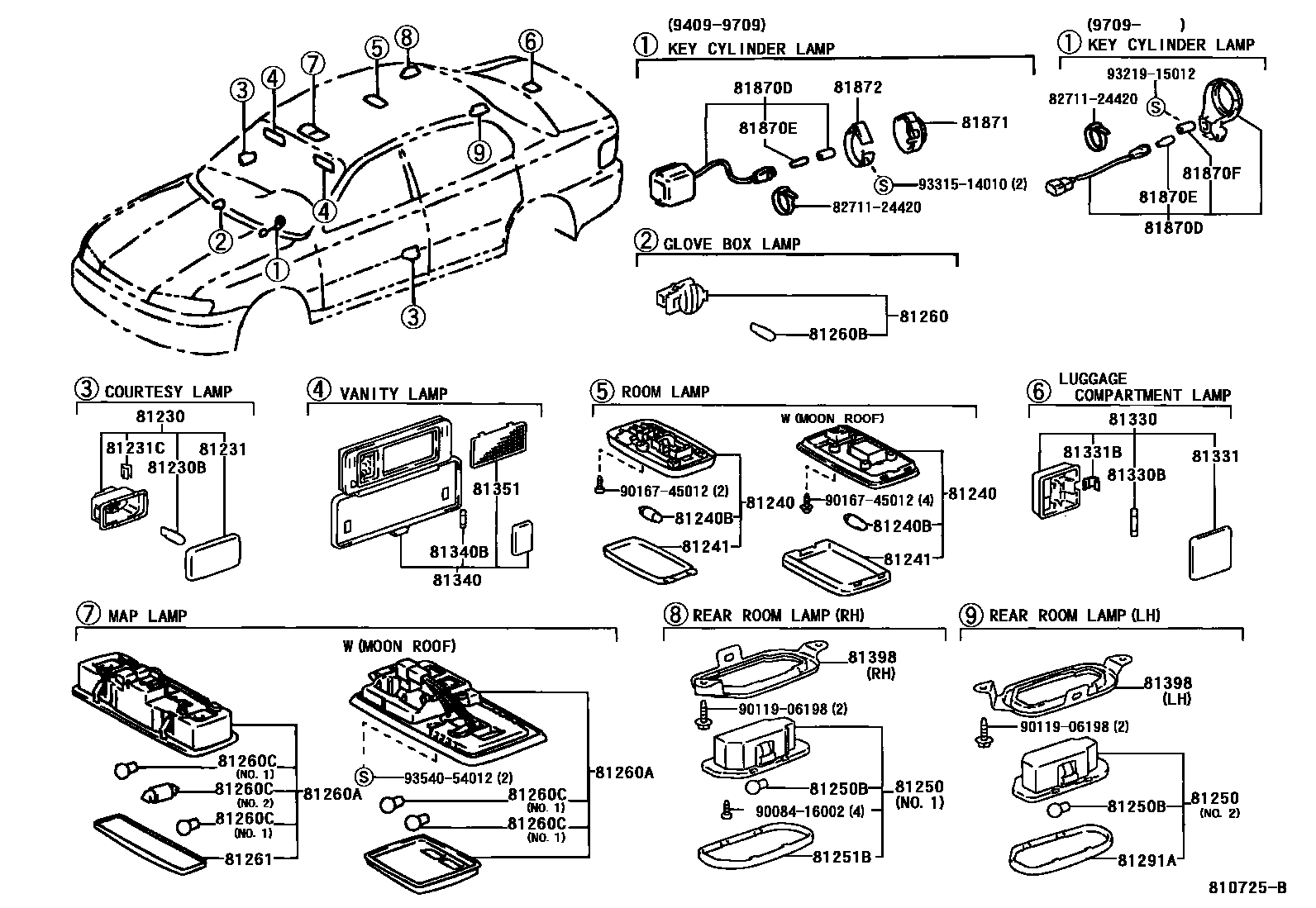

36 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota AVALON
This section contains 36 genuine Toyota parts for the INTERIOR LAMP system of the Toyota AVALON. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, CLIP, COURTESY LAMP, LAMP ASSY, ROOM, NO.1.
