Toyota AVALON — INSTRUMENT PANEL & GLOVE COMPARTMENT

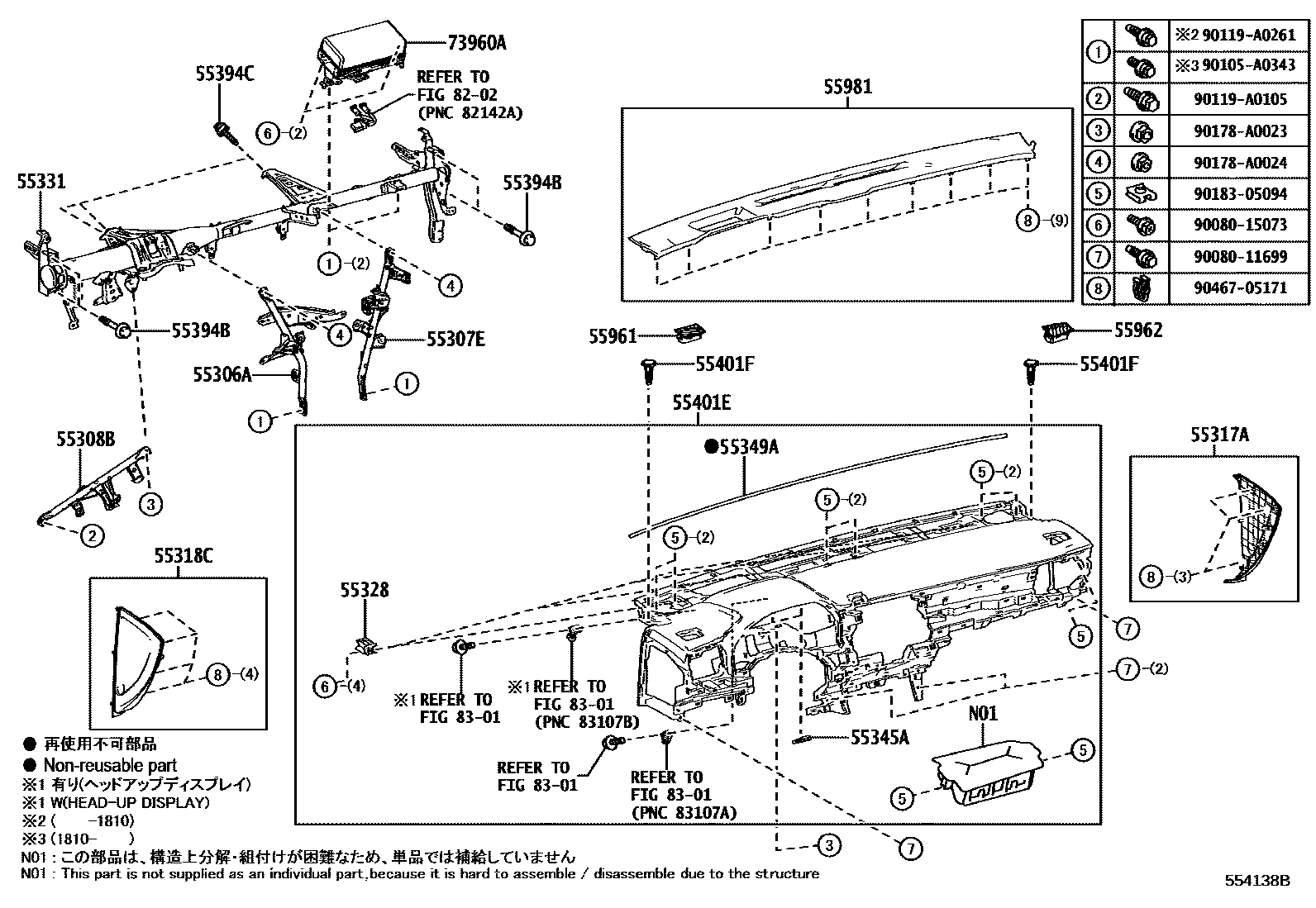

Parts diagram
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-07060i201804-202008
55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-07050i201804-202008
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-06160i201804-202008
55317APANEL, INSTRUMENT SIDE, RH
main55317-07050-C0i201804-202008
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
55318CPANEL, INSTRUMENT SIDE, LH
main55318-07050-C0i201804-202008
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-60090×4i201804-202008
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-07080i202008-202107
55345ACLIP, INSTRUMENT PANEL, NO.1
main55345-12060×2i201804-202008
55349ACUSHION, INSTRUMENT PANEL
main55349-06170i202008
55394BBOLT, INSTRUMENT PANEL
main90105-A0280×4i201804-202008
55394CBOLT, INSTRUMENT PANEL
main90119-A0312×3i202008
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-07120-B0i201804-202008
NEUTRAL WARM GRAY,TRIM1#
main55401-07120-C2i202008
SOFT BLACK,TRIM2#,4#
main55401-07130-B0i201804-202008
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,43
main55401-07130-C2i201804-202008
SOFT BLACK,TRIM2#; SOFT BLACK,TRIM40
55401FCLIP(FOR SAFETY PAD)
main52161-02020×2i202008-202107
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-07040-B0i202008
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main55961-07040-C0i201804-202008
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM40
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-07040-B0i202008
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main55962-07040-C0i202008-202107
BLACK,TRIM2#; BLACK,TRIM2#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-07040-B0i201804-202008
NEUTRAL WARM GRAY,TRIM1#
main55981-07040-C0i201804-202008
BLACK,TRIM2#; BLACK,TRIM2#,4#
main55981-07060-B0i201804-202008
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,43
main55981-07060-C0i201804-202008
BLACK,TRIM2#; BLACK,TRIM40
main55981-07050-B0supersedes 55981-07040-B0i202008
AUDIO-9INCH DISPLAY & 14SPEAKER,NEUTRAL WARM GRAY,TRIM1#; AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA,NEUTRAL WARM GRAY,TRIM1#
main55981-07050-C0i202008
AUDIO-9INCH DISPLAY & 14SPEAKER,BLACK,TRIM2#,4#; AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA,BLACK,TRIM2#,4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-07100i201804-201809
main73960-07111i201809-202008
8202WIRING & CLAMP
→ Go to FIG 82-02
8301METER
→ Go to FIG 83-01
9008011699
main90080-11699
9008015073
main90080-15073
90105A0343
main90105-A0343
90119A0105
main90119-A0105
90119A0261
main90119-A0261
90178A0023
main90178-A0023
90178A0024
main90178-A0024
9018305094
main90183-05094
9046705171
main90467-05171

28 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota AVALON

This section contains 67 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota AVALON. Key components include: GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1, GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1, PANEL SUB-ASSY, INSTRUMENT, LOWER.
