Toyota AVALON — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01263×6i202008-202108

FK20HBR8

main90919-A1001×4i202008-202107

FC16HR-Q8

19500COIL ASSY, IGNITION

main90919-A2009×4i202008-202107

main90919-A2010×4i202008

main90919-A2013×6i202008

90105A0339

main90105-A0339

3 parts on this diagram · 2 diagrams in section

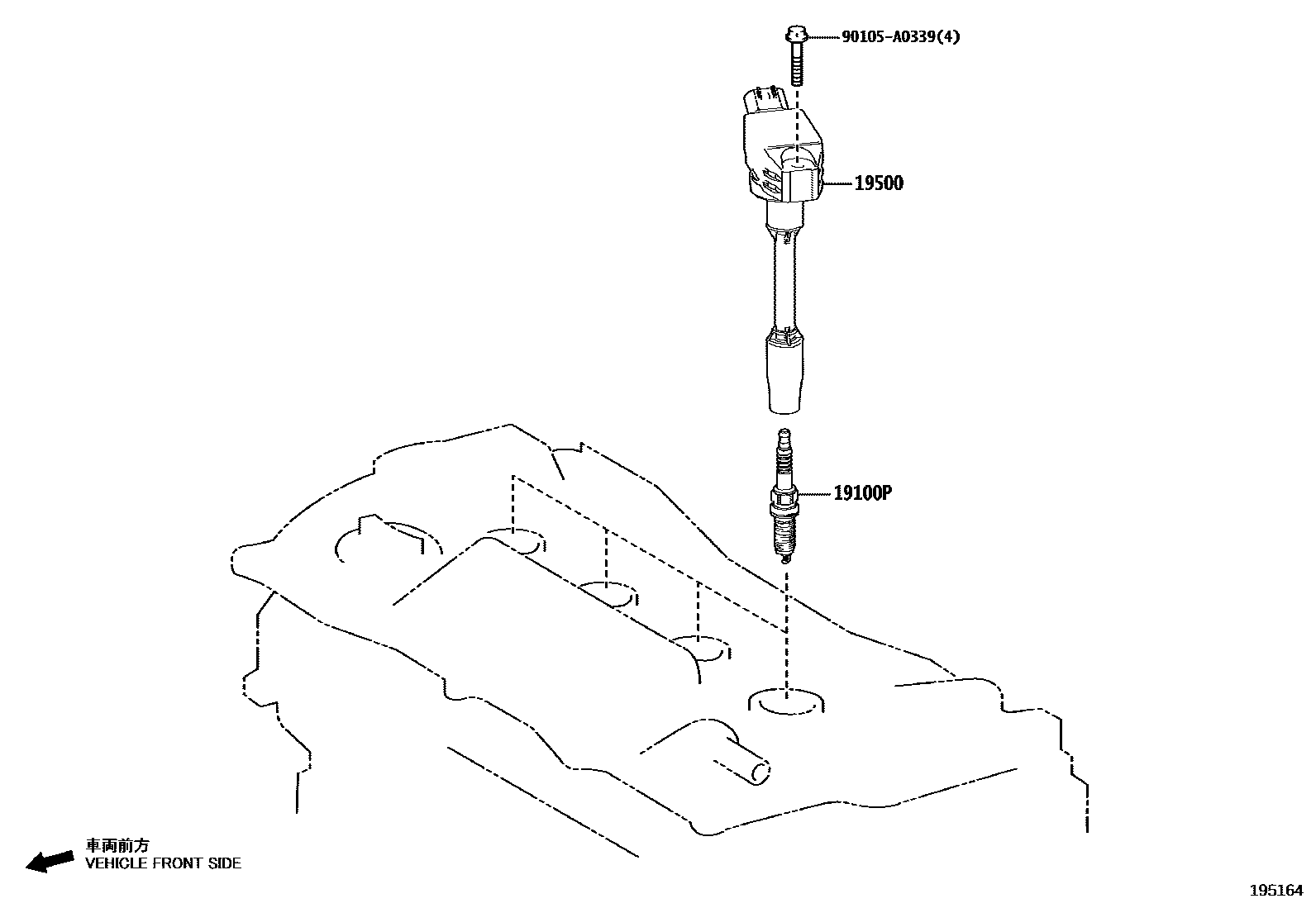

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota AVALON

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota AVALON. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
