Toyota AVALON — IGNITION COIL & SPARK PLUG / GLOW PLUG

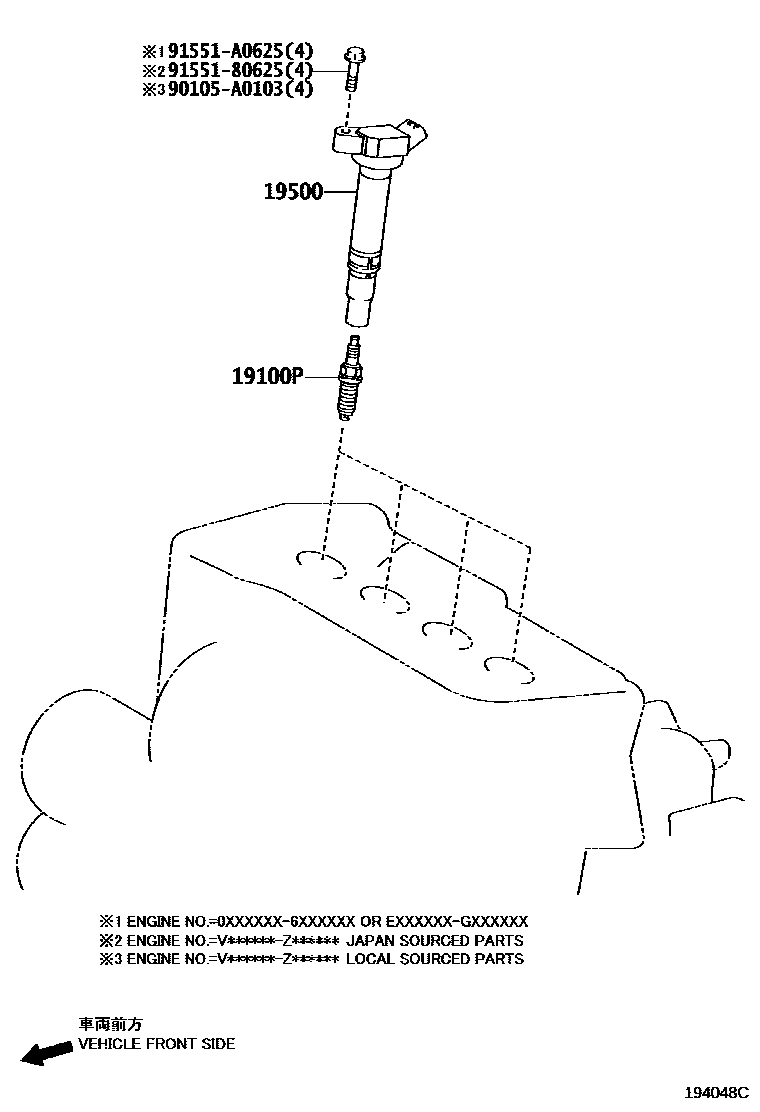

Parts diagram
19100PPLUG, SPARK
main90919-01247i201210-201510
FK20HR11
main90919-01259i201211-201510
FK16HR-A8,*107
main90919-01259i201310-201510
FK16HR-A8,*288
main90919-01259i201510
FK16HR-A8,*107,*288
19500COIL ASSY, IGNITION
main90919-02256i201211-201510
*107
main90919-A2005i201310-201510
*288
main90919-A2007i201210-201510
90105A0103
main90105-A0103
9155180625
main91551-80625
91551A0625
main91551-A0625

5 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota AVALON

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota AVALON. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
