Toyota AVALON — HORN

86510HORN ASSY, HIGH PITCHED

main86510-AA010i201804-202008

86510AHORN ASSY, SECURITY

main86560-06060i201804-202008

86520HORN ASSY, LOW PITCHED

main86520-AA010i202008-202107

main86520-48040i202008

KOREA SPEC

86540AHORN ASSY, SUPER LOW PITCHED

main86540-48010i201805-202008

KOREA SPEC

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-33070i201805-202008

main86570-41010i202008

FRONT

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-41030i201805-202008

main86572-41050i202008

9008017244

main90080-17244

9010508478

main90105-08478

90105A0343

main90105-A0343

90119A0255

main90119-A0255

90178A0023

main90178-A0023

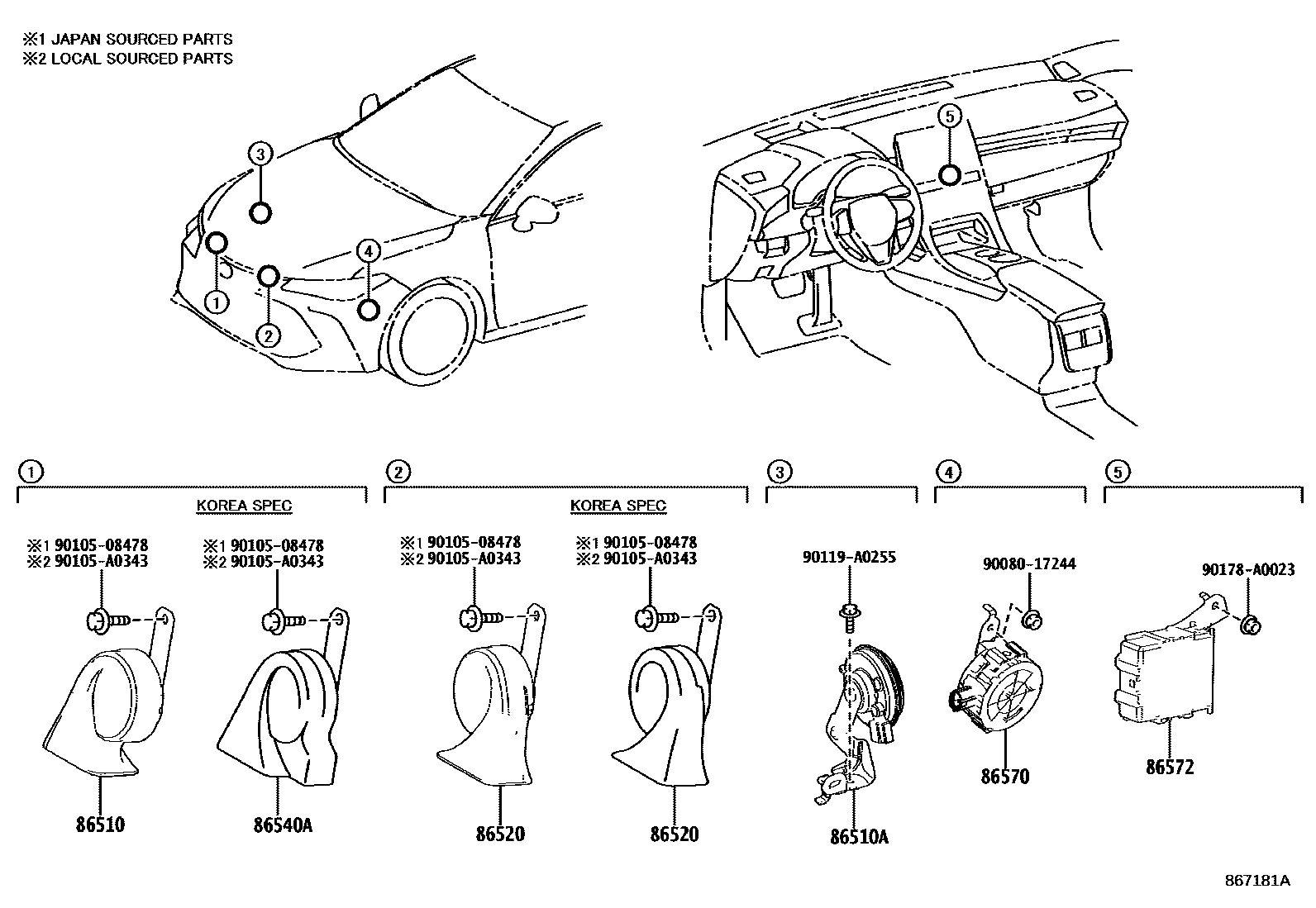

11 parts on this diagram · 2 diagrams in section

HORN for Toyota AVALON

This section contains 14 genuine Toyota parts for the HORN system of the Toyota AVALON. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, HORN ASSY, SUPER LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING.
