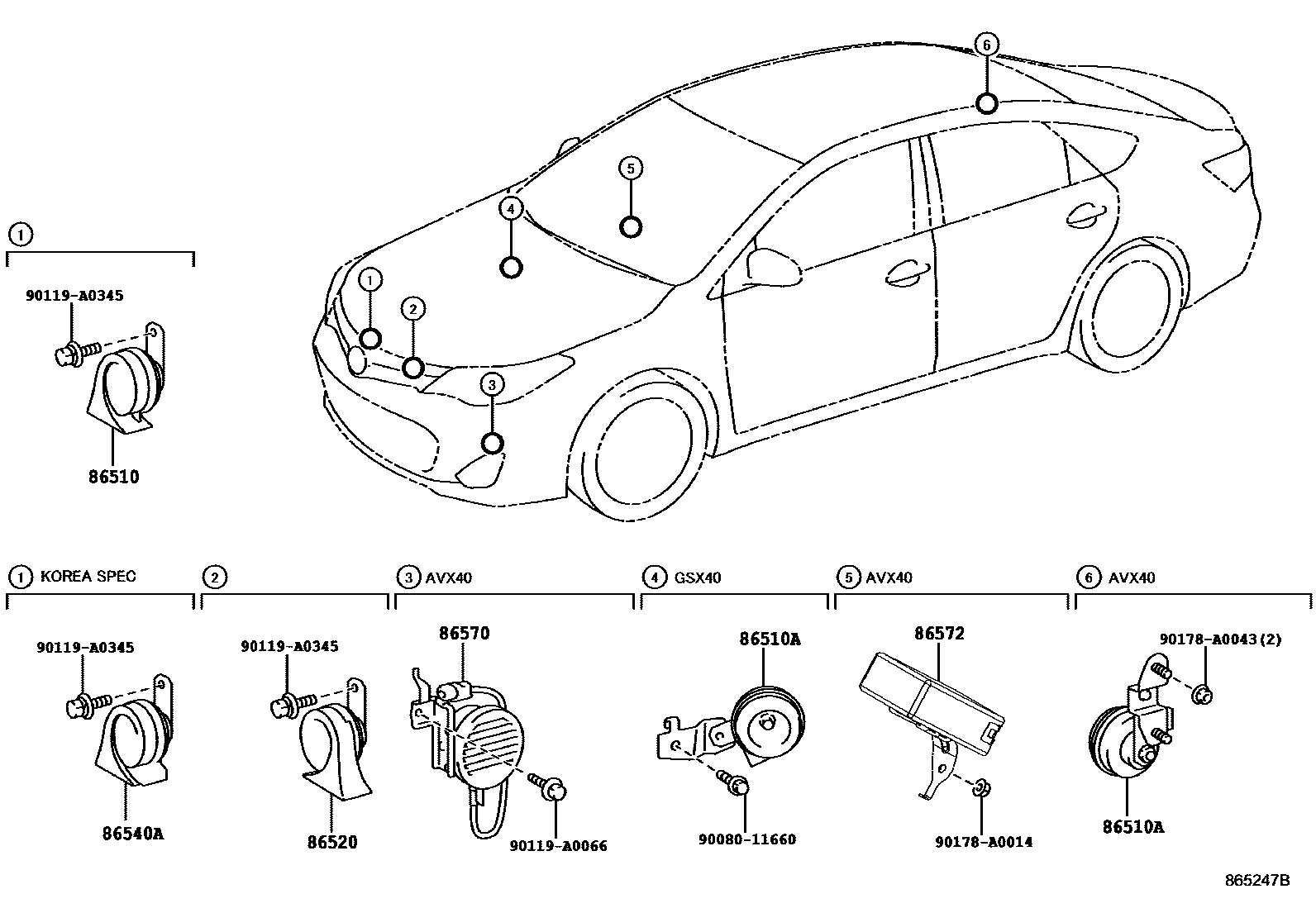

Toyota AVALON — HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-AA010iAVX40,GSX40201210-201510

86510AHORN ASSY, SECURITY

main86560-06050iGSX40201510

main86560-06100iAVX40201510

86520HORN ASSY, LOW PITCHED

main86520-AA010iAVX40,GSX40201510

main86520-48040iGSX40..LIMD201510

KOREA SPEC

86540AHORN ASSY, SUPER LOW PITCHED

main86540-48010iGSX40..LIMD201510

KOREA SPEC

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-33010iAVX40201211-201410

main86570-33050iAVX40201510

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-33060iAVX40201410-201505

main86572-41010iAVX40201211-201410

main86572-41020iAVX40201506-201510

9008011660

main90080-11660

90119A0066

main90119-A0066

90119A0345

main90119-A0345

90178A0014

main90178-A0014

90178A0043

main90178-A0043

11 parts on this diagram · 2 diagrams in section
