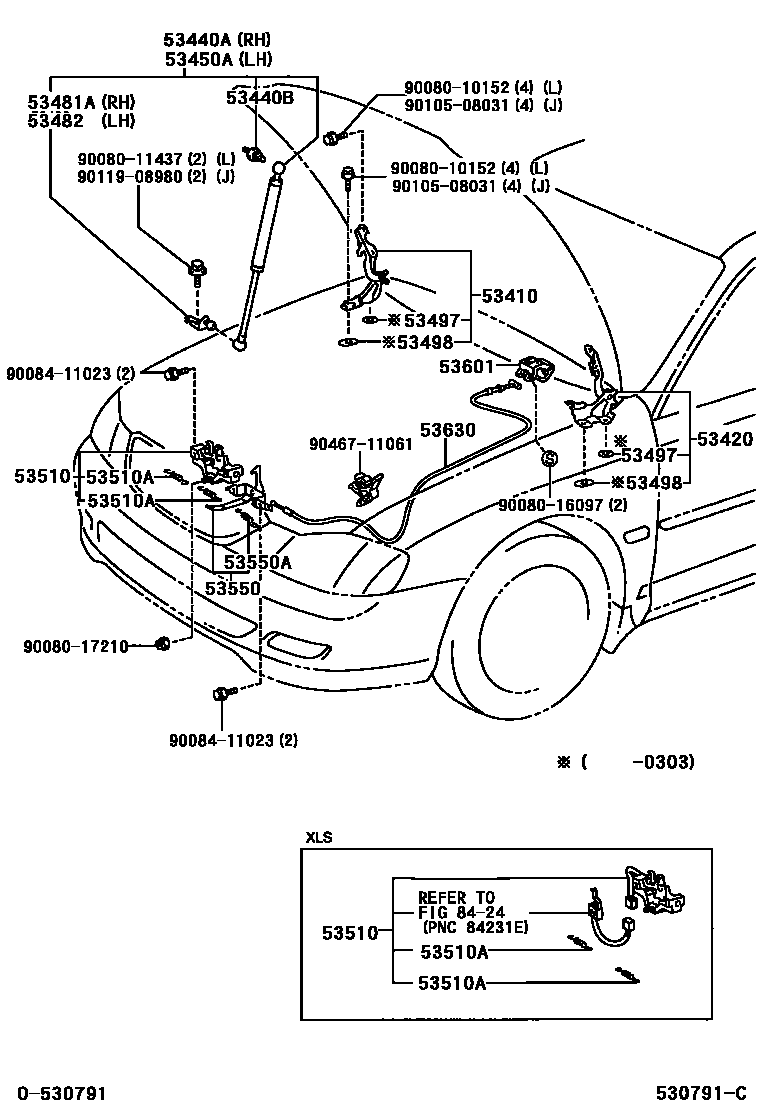

Toyota AVALON — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-AC020i199908-200206

53420HINGE ASSY, HOOD, LH

main53420-AC020i199908-200206

53440ASUPPORT ASSY, HOOD, RH

main53440-A9020i199908-200206

main53440-A9040i200311

53440BBOLT, HOOD SUPPORT, NO.1

main68961-23010×2i199908-200206

53450ASUPPORT ASSY, HOOD, LH

main53450-A9020i199908-200206

main53450-A9040i200311

53481ABRACKET, HOOD SUPPORT, RH

main53481-AA010i199908-200206

53482BRACKET, HOOD SUPPORT, LH

main53481-AA010i199908-200206

53497PAD, HOOD HINGE, NO.1

main53497-02010×2i199908-200206

53498PAD, HOOD HINGE, NO.2

main53498-02010×2i199908-200206

53510LOCK ASSY, HOOD

main53510-AC010i199908-200206

main53510-AC040i199908-200206

53510ASPRING, TENSION(FOR HOOD LOCK)

main90084-50002i199908-200206

WD=1.8,CW=5

main90084-50003i200206

WD=2.3,CW=10

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-AC020i199908-200206

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90084-50022i199908-200206

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-AA010-C0i199908-200206

BLACK,TRIM0#,1#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-AC030i199908-200206

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9008010152

main90080-10152

9008011437

main90080-11437

9008016097

main90080-16097

9008017210

main90080-17210

9008411023

main90084-11023

9010508031

main90105-08031

9011908980

main90119-08980

9046711061

main90467-11061

24 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota AVALON

This section contains 24 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota AVALON. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, RH, BOLT, HOOD SUPPORT, NO.1, SUPPORT ASSY, HOOD, LH.
