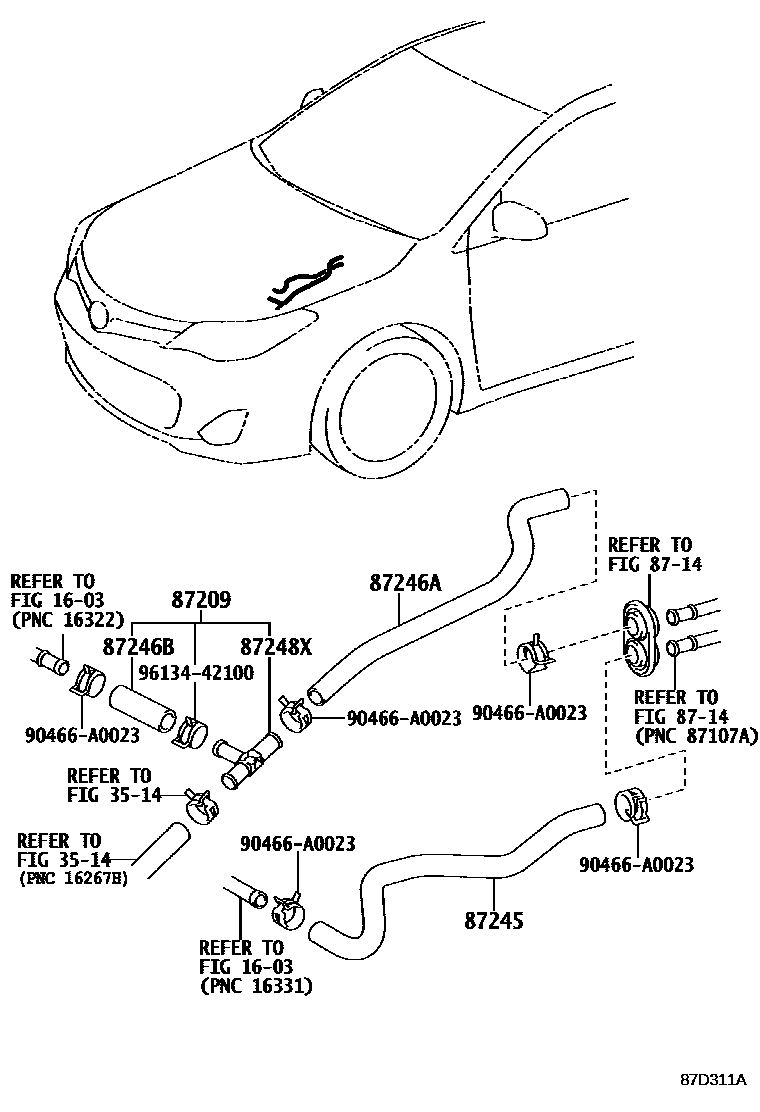

Toyota AVALON — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

3514

8714

87209HOSE SUB-ASSY, WATER

main87209-06030iGSX40201210-201510

87245HOSE, HEATER WATER, INLET

main87245-06800iGSX40201210-201510

main87245-06850iAVX40201211-201510

87246HOSE, HEATER WATER, OUTLET

main87245-06860iAVX40201211-201510

87246AHOSE, HEATER WATER, OUTLET A

main87245-06810iGSX40201210-201510

87246BHOSE, HEATER WATER, OUTLET B

main87245-06790iGSX40201210-201510

87248XPIPE, HEATER WATER

main87248-06040iGSX40201210-201510

90466A0023

main90466-A0023

9613442100

main96134-42100

11 parts on this diagram · 2 diagrams in section
