Toyota AVALON — HEATING & AIR CONDITIONING - WATER PIPING

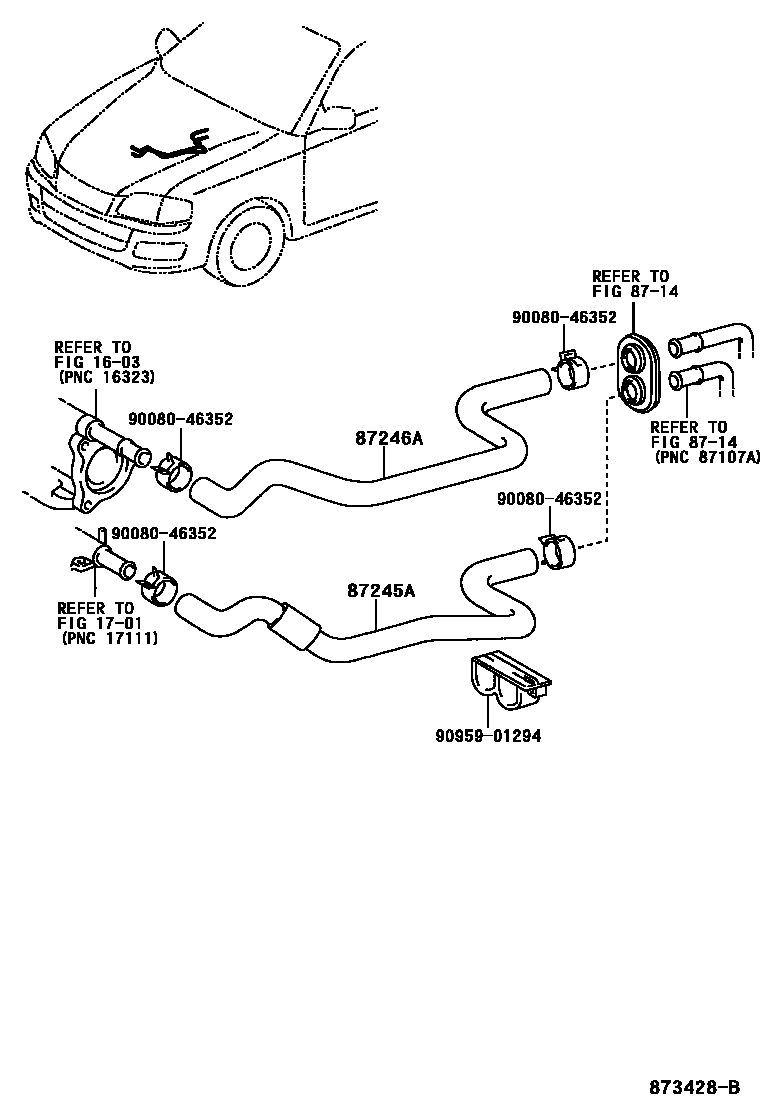

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-07060i199908-200206

87246AHOSE, HEATER WATER, OUTLET A

main87245-07070i199908-200206

9008046352

main90080-46352

9095901294

main90959-01294

7 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota AVALON

This section contains 7 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota AVALON. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, HEATING & AIR CONDITIONING - COOLER UNIT, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, OUTLET A.
