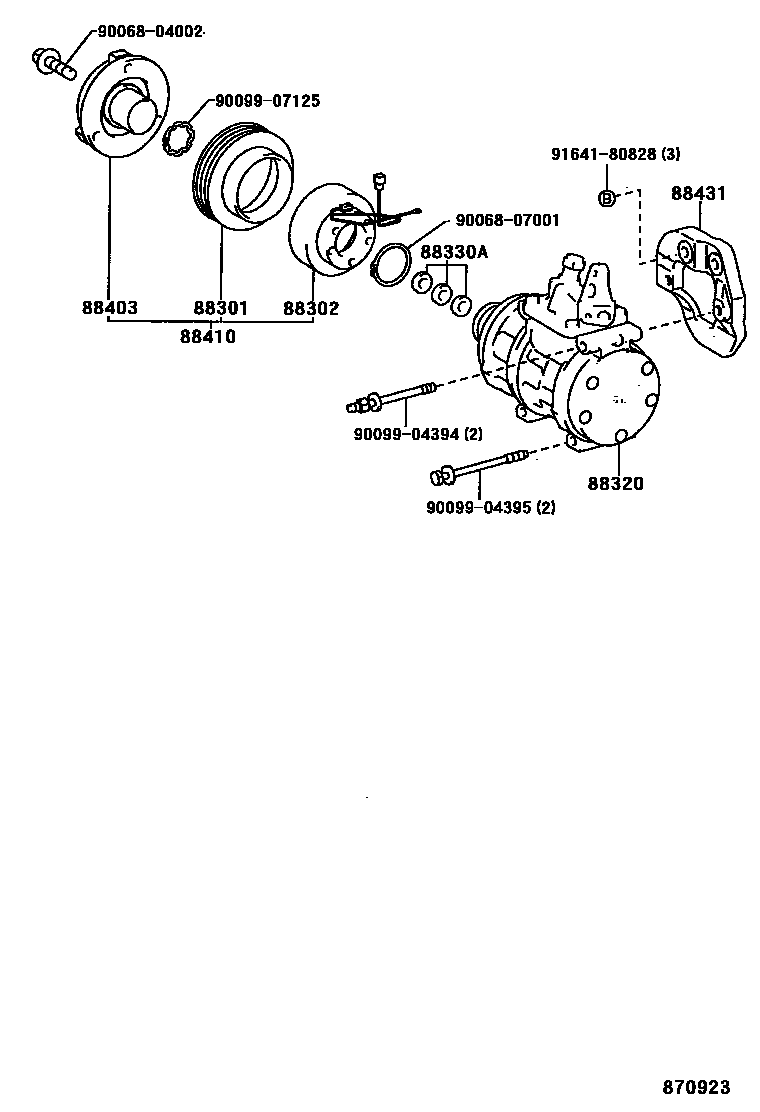

Toyota AVALON — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-07010iMCX10199709

main88412-33010iMCX10199409-199709

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-07010iMCX10199709

main88411-33030iMCX10199409-199709

88320COMPRESSOR ASSY, COOLER

main88320-06050iMCX10199409

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCX10199409-199709

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iMCX10199409

88410CLUTCH ASSY, MAGNET

main88410-06050iMCX10199409

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07010iMCX10199409

9006804002

main90068-04002

9006807001

main90068-07001

9009904394

main90099-04394

9009904395

main90099-04395

9009907125

main90099-07125

9164180828

main91641-80828

13 parts on this diagram · 2 diagrams in section
