Toyota AVALON — HEADLAMP

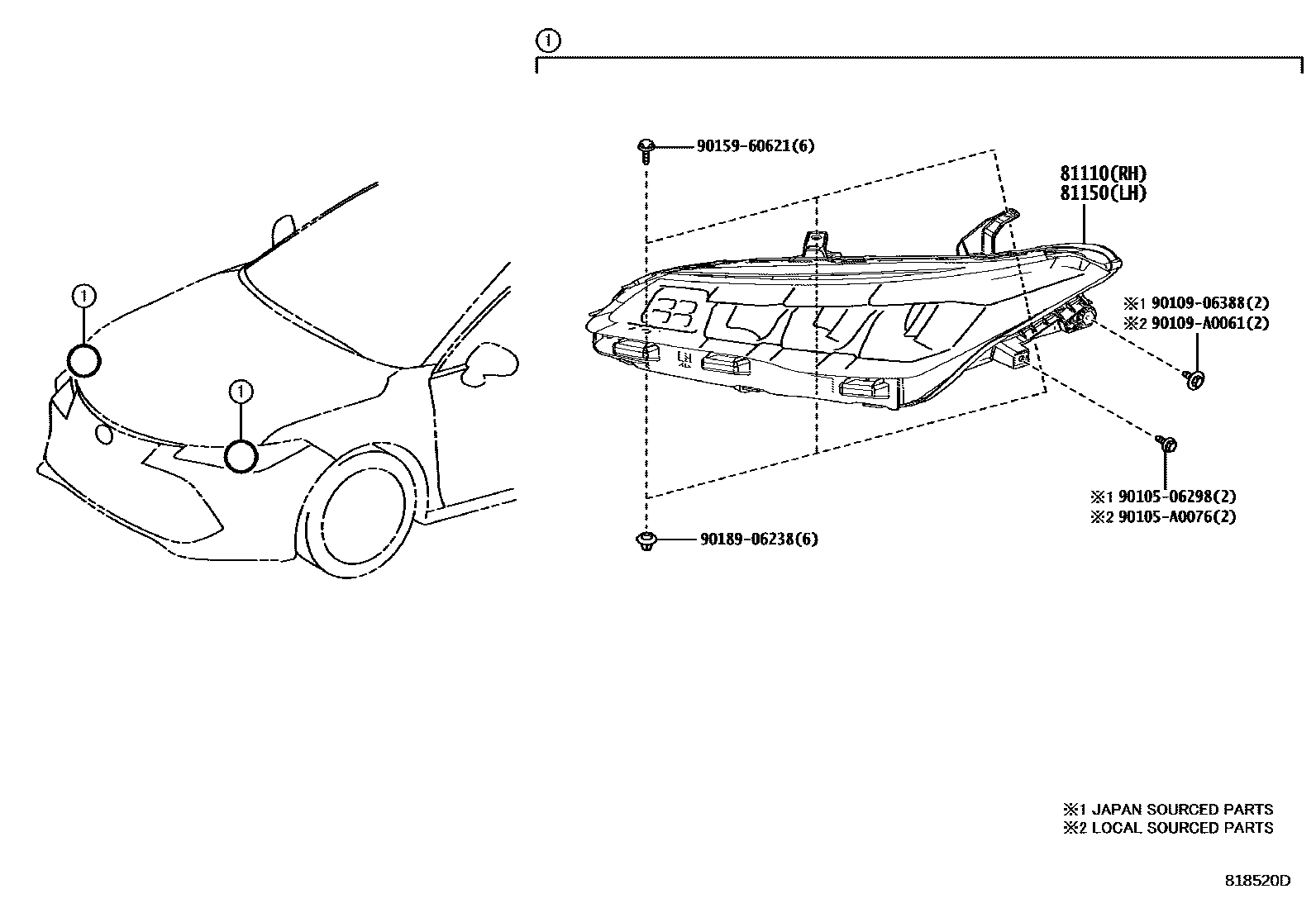

Parts diagram

81110HEADLAMP ASSY, RH

main81110-07200i201804-201902

main81110-07201i202008

main81110-07210i201804-201908

main81110-07212i201908-202008

main81110-07213i202009-202107

main81110-07220i201804-201908

main81110-07223i201908-202008

81150HEADLAMP ASSY, LH

main81150-07200i201804-201902

main81150-07201i202008

main81150-07210i201804-201908

main81150-07212i201908-202008

main81150-07213i202009

main81150-07220i201804-201908

main81150-07223i202008-202107

9010506298

main90105-06298

90105A0076

main90105-A0076

9010906388

main90109-06388

90109A0061

main90109-A0061

9015960621

main90159-60621

9018906238

main90189-06238

8 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota AVALON

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota AVALON. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH, HEADLAMP ASSY, LH.
