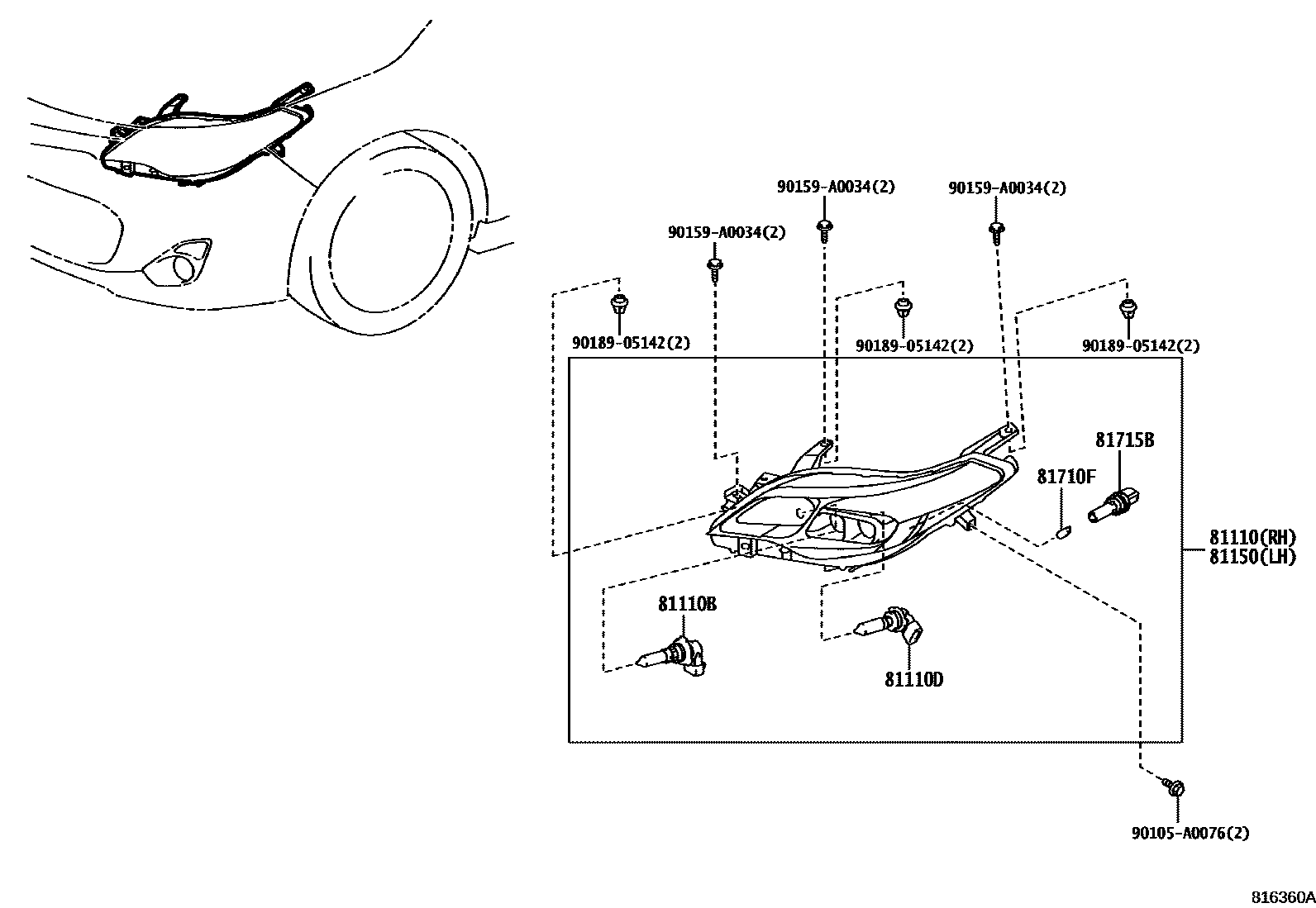

Toyota AVALON — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-07120i201210-201308

main81110-07121i201309-201510

main81110-07122i201510

main81110-07180i201510

HEADLAMP-LED & WITH(*LKA)

main81110-07180i201510

HEADLAMP-LED

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046i201210-201510

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13092i201210-201510

12V 60W,HALOGEN

81150HEADLAMP ASSY, LH

main81150-07120i201210-201308

main81150-07121i201309-201510

main81150-07122i201510

main81150-07160i201510

HEADLAMP-LED & WITH(*LKA)

main81150-07160i201510

HEADLAMP-LED

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050i201210-201510

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main81138-22680i201210-201510

90105A0076

main90105-A0076

90159A0034

main90159-A0034

9018905142

main90189-05142

9 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota AVALON

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota AVALON. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP, GASKET, HEADLAMP.
